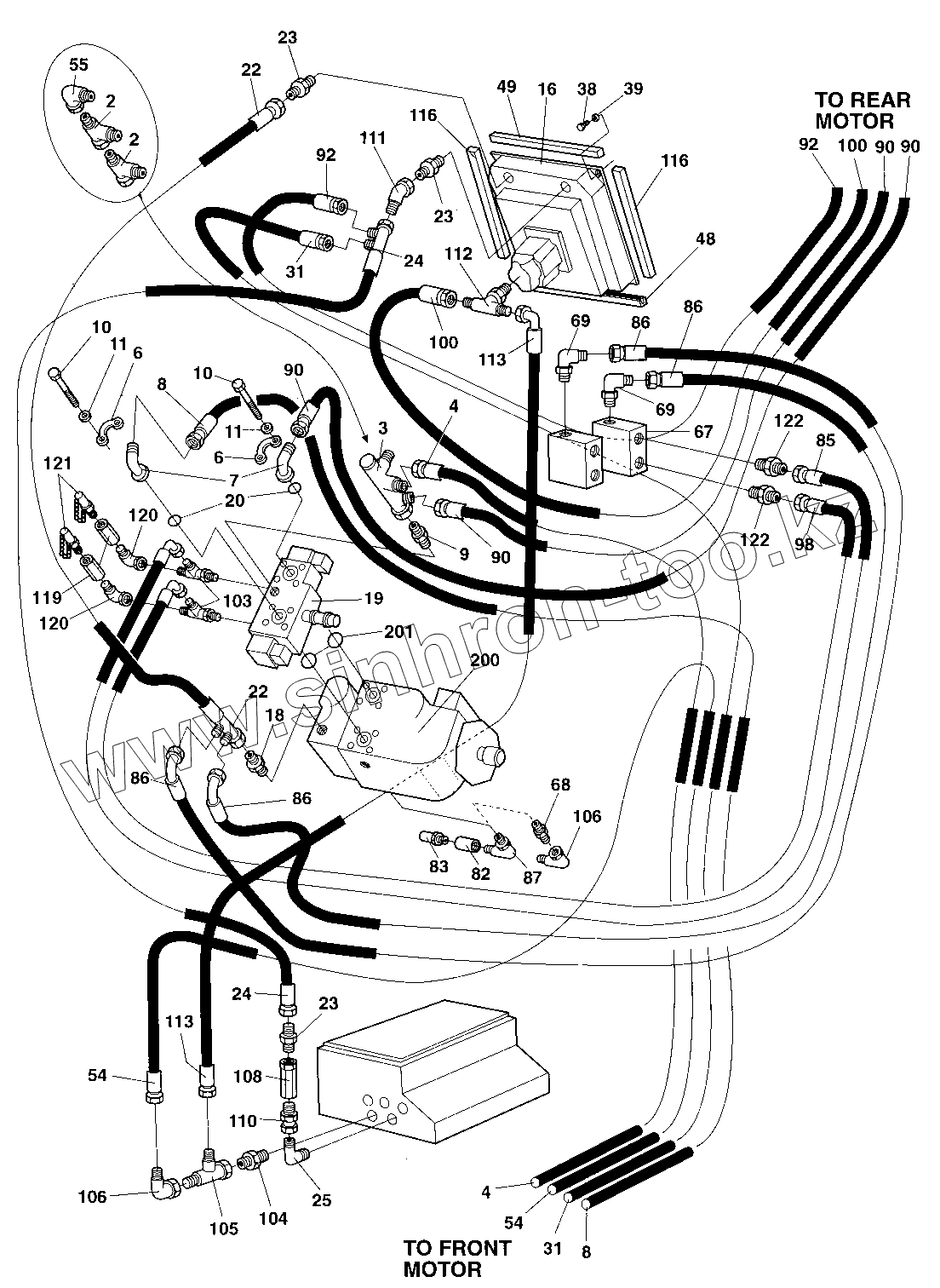

Каталог запасных частей к технике: DYNAPAC Dynapac CC322. Vibration system Pump
2
2
3
4
4
6
6
7
8
8
9
10
10
11
11
16
18
19
20
22
22
23
23
23
24
24
25
31
31
38
39
48
49
54
54
55
67
68
69
69
82
83
85
86
86
86
86
87
90
90
90
90
92
92
98
100
103
104
105
106
106
108
110
110
111
112
113
113
116
116
119
120
120
121
122
122
200
201
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 2 | 234243 | Adapter | |
| 3 | 382418 | Connector | |
| 4 | 483240 | Hydraulic hose | |
| 6 | 929226 | Flange half | |
| 7 | 900455 | Flange adapter | |
| 8 | 483141 | Hydraulic hose | |
| 9 | 385538 | Connector | |
| 10 | 502047 | Screw | |
| 11 | 904637 | Washer 10x18x2 | |
| 16 | 374494 | Oil cooler cpl | |
| 18 | 334138 | Adapter | |
| 19 | 359140 | Valve | |
| 20 | 904004 | O-ring | |
| 22 | 375283 | Hydraulic hose | |
| 23 | 334156 | Adapter | |
| 24 | 375284 | Hydraulic hose | |
| 25 | 334128 | Elbow 90G | |
| 31 | 482905 | Hydraulic hose | |
| 38 | 500021 | Screw | |
| 39 | 904556 | Washer 8,4x16x3,0 | |
| 48 | 902379 | Edge trim | |
| 49 | 297018 | Rubber strip | |
| 54 | 483241 | Hydraulic hose | |
| 55 | 334155 | Elbow 90 | |
| 67 | 393338 | Flushing valve | |
| 68 | 234233 | Adapter | |
| 69 | 334445 | Connector | |
| 82 | 433830401 | Connector | |
| 83 | 910161 | Measuring nipple | |
| 85 | 483800 | Hydraulic hose | |
| 86 | 482982 | Hydraulic hose | |
| 87 | 334389 | Connector | |
| 90 | 483246 | Hydraulic hose | |
| 92 | 483153 | Hydraulic hose | |
| 98 | 483802 | Hydraulic hose | |
| 100 | 483153 | Hydraulic hose | |
| 103 | 791746 | Tee-connector | |
| 104 | 234349 | Connector | |
| 105 | 334234 | Tee-connector | |
| 106 | 334524 | Connector | |
| 108 | 903774 | Check valve | |
| 110 | 330438 | Straight connector | |
| 111 | 334248 | Elbow 45 | |
| 112 | 334564 | Connector | |
| 113 | 483409 | Hydraulic hose | |
| 116 | 904726 | Rubber strip | |
| 119 | 791847 | Straight connector | |
| 120 | 791401 | Elbow 90, O-ring with swivel | |
| 121 | 923405 | Measuring nipple | |
| 122 | 791409 | Straight connector orfs | |
| 200 | Pump | Pump see split gear box Gr. 7 | |
| 201 | 909230 | O-ring |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
