Каталог запасных частей к технике: DYNAPAC Dynapac CC322. Structure
1
2
3
4
5
7
7
8
8
9
9
10
10
10
10
10
11
12
13
14
15
16
17
17
18
19
20
21
22
23
24
25
26
27
28
28
29
30
31
32
33
33
33
33
34
34
35
35
36
37
37
38
39
40
41
41
42
43
43
43
44
44
45
46
47
48
49
50
51
52
53
54
55
56
57
57
58
59
60
60
61
62
63
64
65
66
67
68

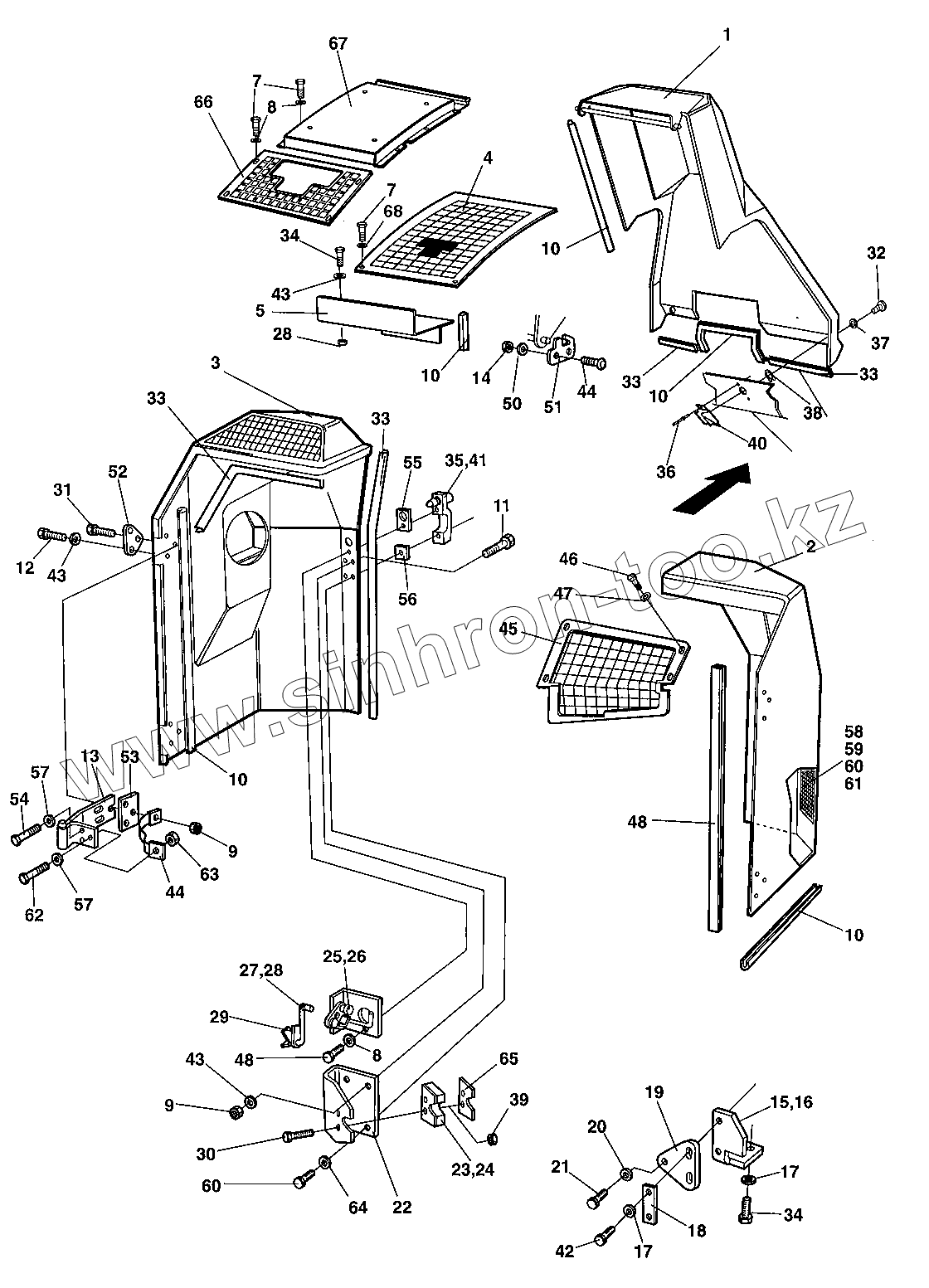

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 945231 | 945231 | Center cover w absorbent, cpl | |
| 378849 | 378849 | Absorbent | |
| 904209 | 904209 | Screw | |
| 373476 | 373476 | Insulating washer | |
| 904076 | 904076 | Edge trim | |
| 901767 | 901767 | Screw | |
| 387087 | 387087 | Grid | |
| 945230 | 945230 | Engine hood w absorbent, cpl | |
| 945229 | 945229 | Engine hood w absorbent, cpl | |
| 950279 | 950279 | Engine hood, cpl | |
| 1 | 386994 | Cover | |
| 2 | 945227 | Engine hood, cpl | |
| 3 | 945228 | Engine hood, cpl | |
| 4 | 374495 | Grid | |
| 5 | 375252 | Cover plate | |
| 6 | 902166 | Edge trim | |
| 7 | 500013 | Hex. screw | |
| 8 | 904228 | Washer 6,4x12x1,5 | |
| 9 | 586003 | Lock nut M8 | |
| 10 | 902166 | Edge trim | |
| 11 | 902520 | Screw | |
| 12 | 500047 | Screw | |
| 13 | 381675 | Hinge | |
| 14 | 586002 | Lock nut M6 | |
| 15 | 372898 | Bracket | |
| 16 | 372894 | Bracket | |
| 17 | 904734 | Washer 8,4x26x4 | |
| 18 | 371523 | Bracket | |
| 19 | 372893 | Bracket | |
| 20 | 387487 | Lock pin | |
| 21 | 904231 | Washer 13x24x2 | |
| 22 | 371659 | Bracket | |
| 23 | 371380 | Lock | |
| 24 | 371381 | Lock | |
| 25 | 371449 | Lock device | |
| 26 | 371450 | Lock device | |
| 27 | 371451 | Coupling link | |
| 28 | 371452 | Coupling link | |
| 29 | 371569 | Lock device | |
| 30 | 535053 | Screw | |
| 31 | 500024 | Screw | |
| 32 | 903340 | Trunnion | |
| 33 | 202057 | Edge trim | |
| 34 | 500053 | Screw | |
| 35 | 371389 | Grab handle | |
| 35 | 902866 | Key Marked 455 | |
| 36 | 923253 | Rivet | |
| 37 | 904076 | Edge trim | |
| 37 | 903341 | Washer | |
| 38 | 903857 | Washer | |
| 39 | 902284 | Nut | |
| 40 | 903344 | Lock | |
| 41 | 371390 | Grab handle | |
| 41 | 902866 | Key Marked 455 | |
| 42 | 500021 | Screw | |
| 43 | 904229 | Washer 8,4x16x1,5 | |
| 44 | 373422 | Metal strapping | |
| 45 | 380162 | Grid | |
| 46 | 500012 | Screw | |
| 47 | 904735 | Washer | |
| 48 | 287724 | Edge trim | |
| 49 | 903856 | Bolt | |
| 50 | 904735 | Washer | |
| 51 | 372126 | Cover holder | |
| 52 | 372675 | Washer | |
| 53 | 372566 | Bracket | |
| 54 | 500021 | Screw | |
| 55 | 903937 | Rubber gasket | |
| 56 | 903936 | Rubber gasket | |
| 57 | 904556 | Washer 8,4x16x3,0 | |
| 58 | 374496 | Grid | |
| 59 | 904228 | Washer 6,4x12x1,5 | |
| 60 | 500075 | Screw | |
| 61 | 586002 | Lock nut M6 | |
| 62 | 500022 | Screw | |
| 63 | 570005 | Nut | |
| 64 | 904639 | Washer 6,7x14x1,5 | |
| 65 | 388026 | Guide | |
| 66 | 379509 | Grid | |
| 67 | 378973 | Exhaust hood, cpl | |
| 68 | 928381 | Washer 6,4x18x1,6 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
