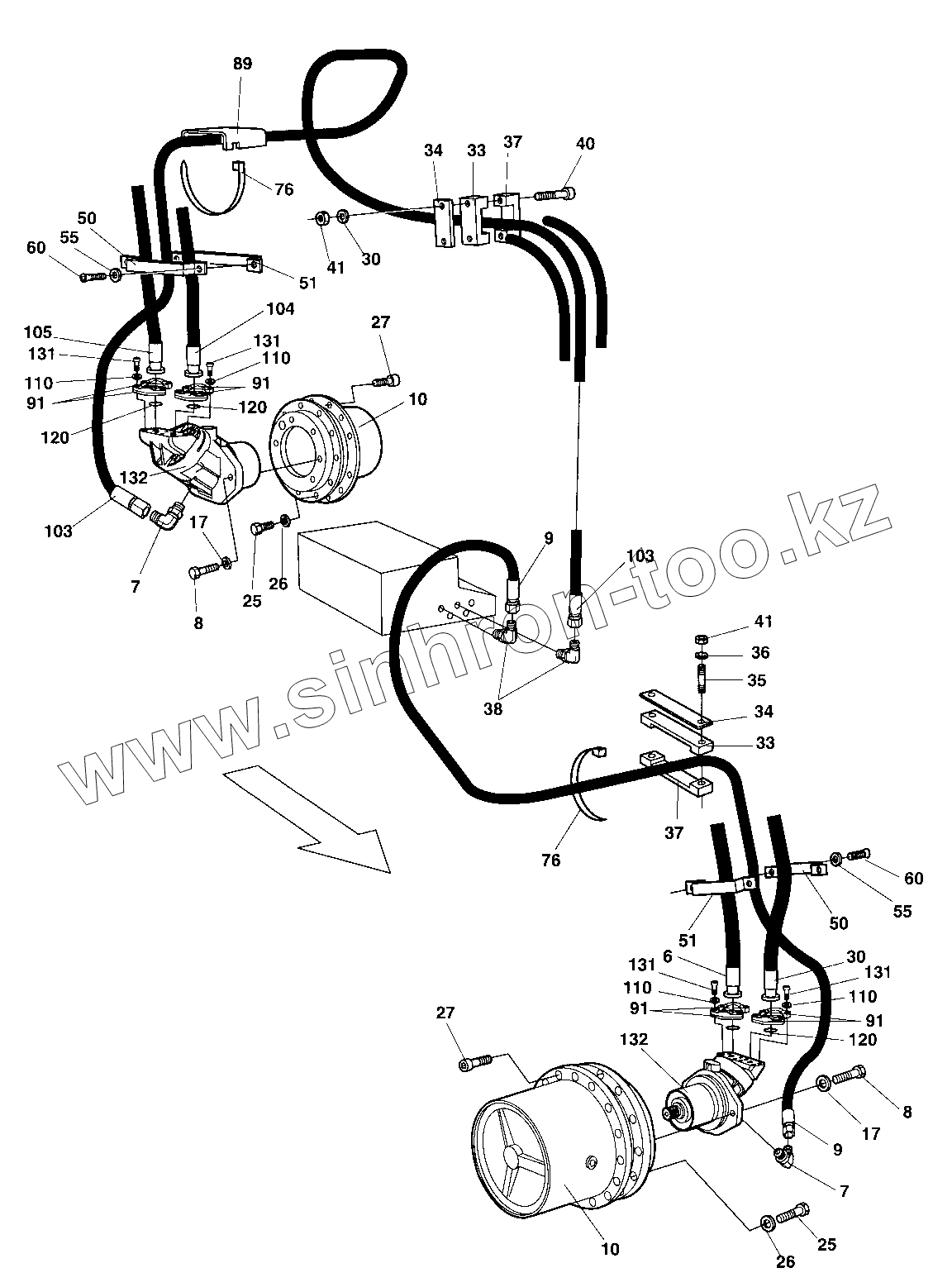

Каталог запасных частей к технике: DYNAPAC Dynapac CC322. Propulsion system Motors
6
7
7
8
8
9
9
10
10
17
17
25
25
26
26
27
27
30
30
33
33
34
34
35
36
37
37
38
40
41
41
50
50
51
51
55
55
60
60
76
76
89
91
91
91
91
103
103
104
105
110
110
110
110
120
120
120
131
131
131
131
132
132
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 6 | Hydraulichose | Hydraulic hose | |
| 7 | 928908 | Adapter | |
| 8 | 500056 | Hex. screw | |
| 9 | 482766 | Hydraulic hose | |
| 10 | 391329 | Gear box | |
| 17 | 383023 | Spacer sleeve | |
| 25 | 928371 | Screw | |
| 26 | 904214 | Washer | |
| 27 | 928022 | Screw | |
| 30 | Hydraulichose | Hydraulic hose | |
| 33 | 343872 | Hose clamp | |
| 34 | 335914 | Cover plate | |
| 35 | 904056 | Stud | |
| 36 | 904230 | Washer 10,5x22x2 | |
| 37 | 343732 | Hose clamp | |
| 38 | 801198 | Elbow 90 | |
| 40 | 903524 | Bolt | |
| 41 | 570006 | Nut | |
| 50 | 383462 | Hose clamp | |
| 51 | 383461 | Hose clamp | |
| 55 | 904557 | Washer 10,5x22x4 | |
| 60 | 500030 | Screw | |
| 76 | 313102 | Cable ties | |
| 89 | 370641 | Hose shields | |
| 91 | 900430 | Flange half | |
| 103 | 483936 | Hydraulic hose | |
| 104 | Hydraulichose | Hydraulic hose | |
| 105 | Hydraulichose | Hydraulic hose | |
| 110 | 904229 | Washer 8,4x16x1,5 | |
| 118 | 792387 | O-ring | |
| 120 | 904003 | O-ring | |
| 131 | 900777 | Screw | |
| 132 | 391330 | Hydraulic motor |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
