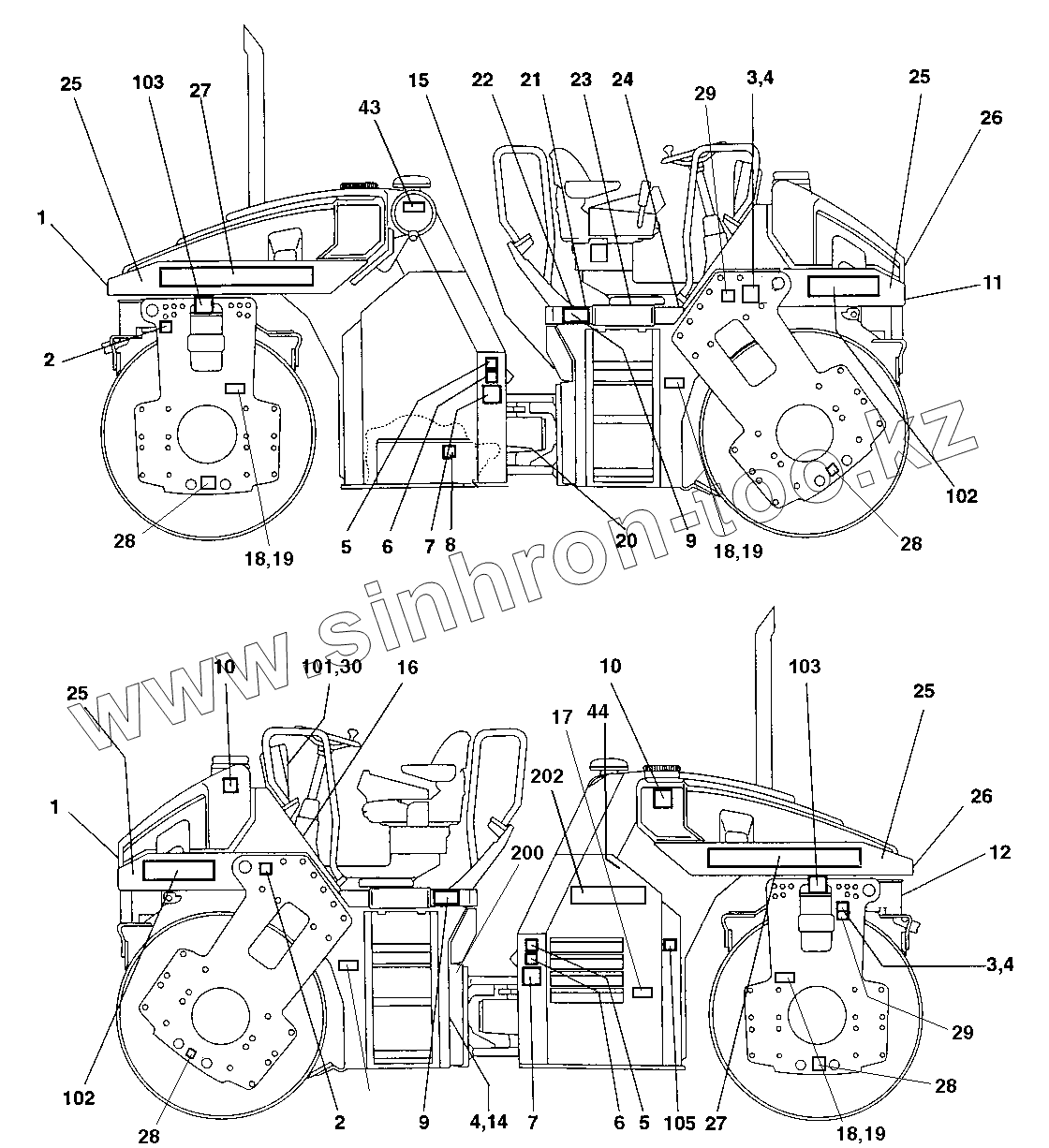

Каталог запасных частей к технике: DYNAPAC Dynapac CC322. Plates and decals
1
1
2
2
3
3
4
4
4
5
5
6
6
7
7
8
9
9
10
10
11
12
14
15
16
17
18
18
18
20
21
22
23
24
25
25
25
25
26
26
27
27
28
28
28
28
29
29
30
43
44
101
101
101
101
101
101
101
101
101
101
101
101
101
101
101
102
102
105
200
202
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 904092 | Decal DYNAPAC | |
| 2 | 357587 | Decal LIFT POINT | |
| 3 | 904870 | Lifting sign | |
| 4 | 624005 | Pop rivet | |
| 5 | 903424 | Decal SAFETY | |
| 6 | 903423 | Decal SAFETY | |
| 7 | 903422 | Decal SAFETY | |
| 8 | 272372 | Decal HYDRAULIC OIL | |
| 9 | 903459 | Decal SAFETY | |
| 10 | 991657 | Decal WATER | |
| 11 | 377743 | Reflector, white | |
| 12 | 377742 | Reflector, red | |
| 14 | Productidentification | Product identification plate | |
| 15 | 991658 | Decal FUEL | |
| 16 | 903425 | Decal SAFETY MANUAL | |
| 17 | 904835 | Decal BATTERY POWER | |
| 18 | 377744 | Reflector, yellow | |
| 20 | 272373 | Decal HYDRAULIC OIL | |
| 21 | 370058 | Protection | |
| 22 | 370057 | Slip protection | |
| 23 | 370059 | Slip protection | |
| 24 | 370056 | Slip protection | |
| 25 | 370085 | Decal RED | |
| 26 | 357592 | Decal RED | |
| 27 | 904069 | Decal DYNAPAC | |
| 28 | 382751 | Decal TIE DOWN POINT | |
| 29 | 908229 | Safety decal | |
| 30 | 624017 | Blind rivet | |
| 43 | 791642 | Decal WARNING | |
| 44 | 392919 | Decal Brake release, hand pump | |
| 101 | 386084DK | Warning plate | |
| 101 | 386084BR | Warning plate | |
| 101 | 386084CN | Warning plate | |
| 101 | 386084IS | Warning plate | |
| 101 | 386084GR | Warning plate | |
| 101 | 386084NL | Warning plate | |
| 101 | 386084PT | Warning plate | |
| 101 | 386084FI | Warning plate | |
| 101 | 386084NO | Warning plate | |
| 101 | 386084FR | Warning plate | |
| 101 | 386084ES | Warning plate | |
| 101 | 386084IT | Warning plate | |
| 101 | 386084DE | Warning plate | |
| 101 | 386084EN | Warning plate | |
| 101 | 386084SE | Warning plate | |
| 102 | 904327 | Decal MODEL CODE | |
| 105 | 903422 | Decal SAFETY | |
| 200 | 791276 | Decal Sound power level Option | |
| 202 | 379319 | Decal Asphalt temp meter |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
