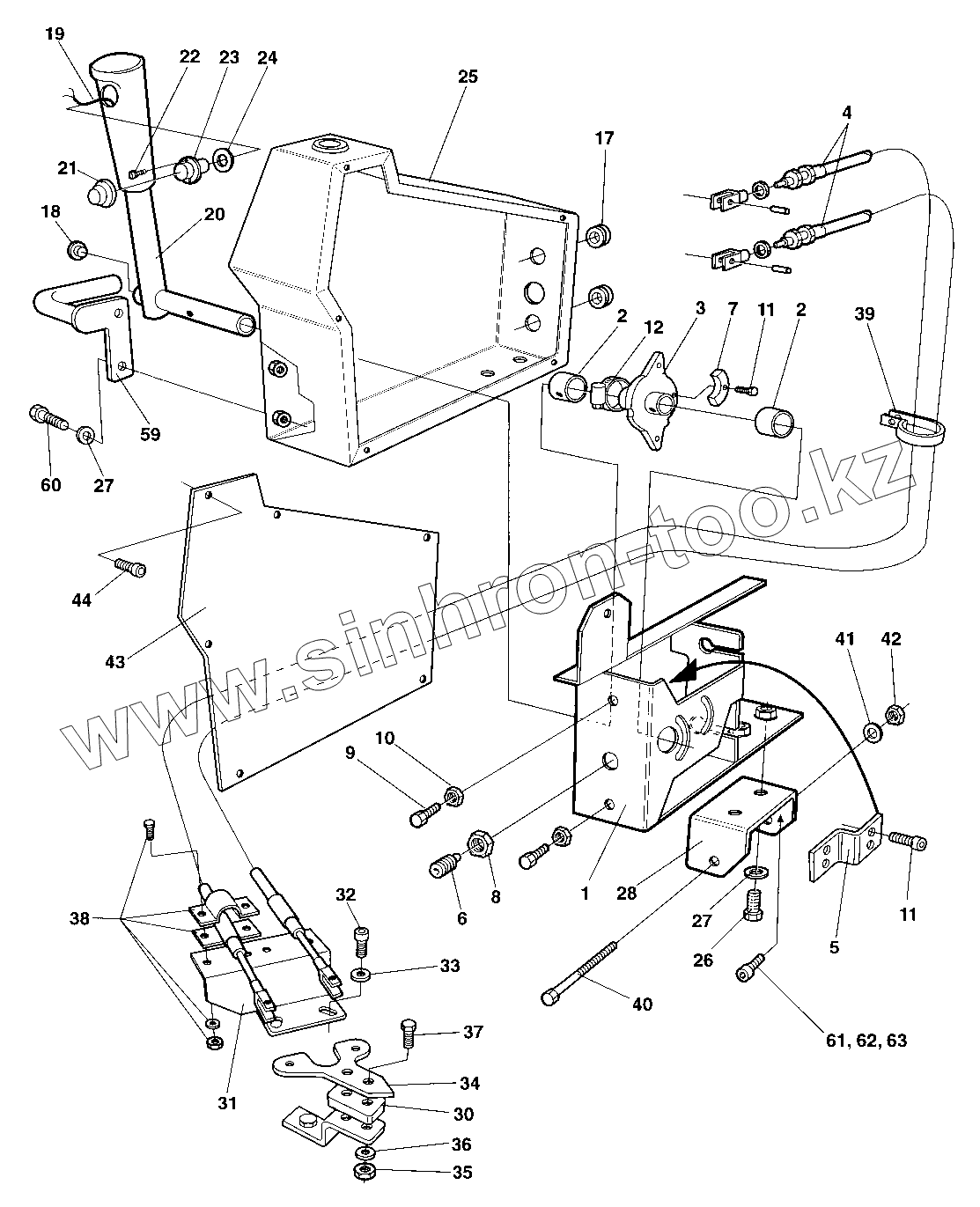

Каталог запасных частей к технике: DYNAPAC Dynapac CC322. Forward and reverse control
1
2
2
3
4
5
6
7
8
9
10
11
11
12
17
18
19
20
21
22
23
24
25
26
27
27
28
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
59
60
61
62
63
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 908193 | 908193 | Fork | |
| 570004 | 570004 | Hex. nut | |
| 1 | 909747 | Framing | |
| 2 | 908200 | Bearing | |
| 3 | 909748 | Cam disc | |
| 4 | 909749 | Cable | |
| 5 | 909751 | Bracket | |
| 6 | 922325 | Spring ball plunger | |
| 7 | 909750 | Cam | |
| 8 | 573004 | Nut | |
| 9 | 533038 | Screw | |
| 10 | 573004 | Nut | |
| 11 | 533010 | Screw | |
| 12 | 313147 | Hose clip | |
| 17 | 909122 | Grommet | |
| 18 | 902203 | Plug | |
| 19 | 376396 | Cable harness | |
| 20 | 359575 | Control lever | |
| 21 | 348481 | Cover | |
| 22 | 371009 | Screw | |
| 23 | 928497 | Push button | |
| 24 | 359940 | Washer | |
| 25 | 359928 | Control cover | |
| 26 | 500053 | Screw | |
| 27 | 904229 | Washer 8,4x16x1,5 | |
| 28 | 381676 | Bracket | |
| 30 | 371507 | Spacer | |
| 31 | 359932 | Control bracket | |
| 32 | 903799 | Screw M6x70 | |
| 33 | 904228 | Washer 6,4x12x1,5 | |
| 34 | 359931 | Control bracket | |
| 35 | 586003 | Lock nut M8 | |
| 36 | 904229 | Washer 8,4x16x1,5 | |
| 37 | 500023 | Screw | |
| 38 | 465013 | Clamp | |
| 39 | 921104 | Clamp | |
| 40 | 500198 | Screw | |
| 41 | 904231 | Washer 13x24x2 | |
| 42 | 586019 | Lock nut M12 | |
| 43 | 359929 | Cover | |
| 44 | 903658 | Screw | |
| 59 | 373177 | Yoke | |
| 60 | 570019 | Screw | |
| 61 | 508092 | Screw | |
| 62 | 904229 | Washer 8,4x16x1,5 | |
| 63 | 586003 | Lock nut M8 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
