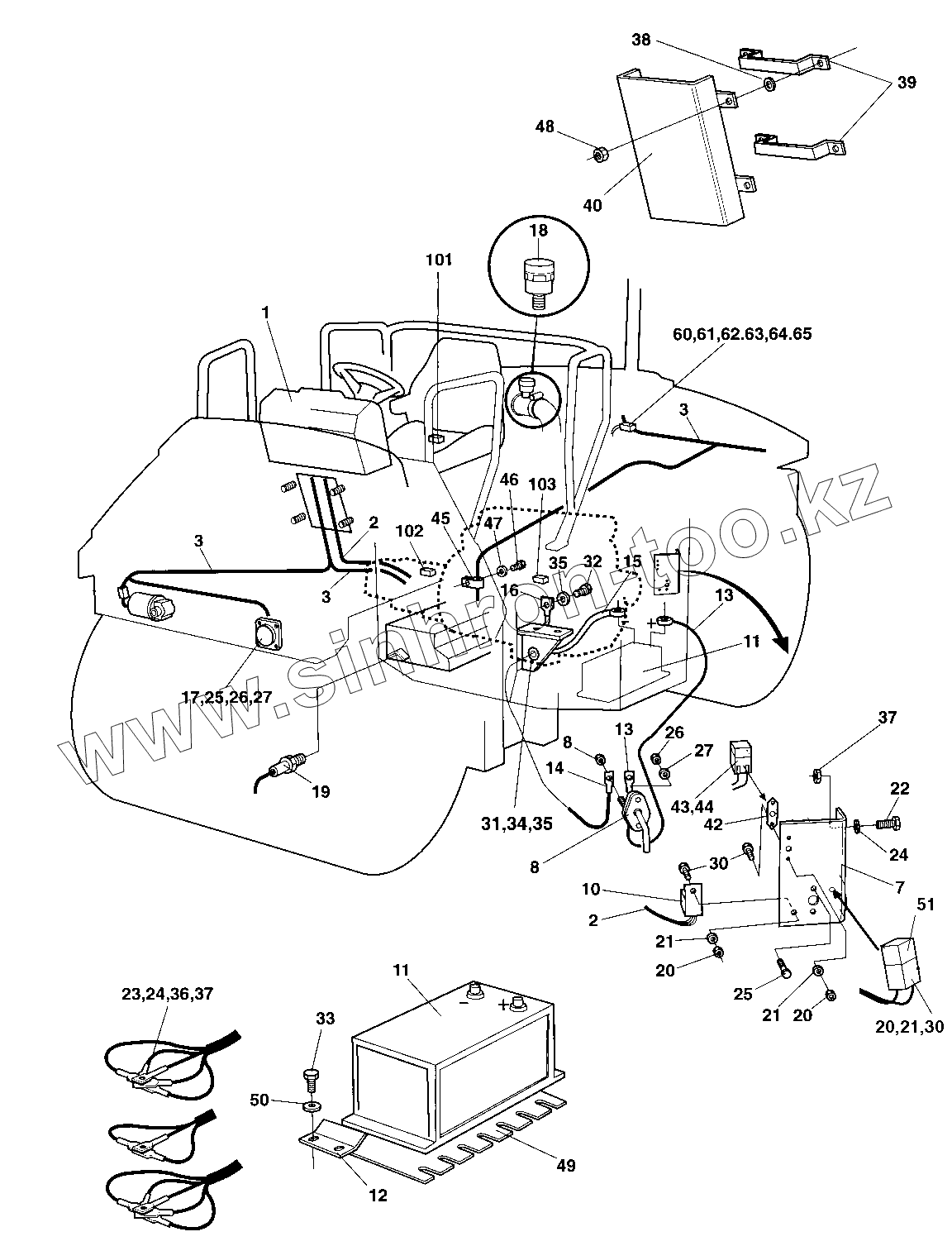

Каталог запасных частей к технике: DYNAPAC Dynapac CC322. Electrical equipment
1
2
2
3
3
3
7
8
8
10
11
11
12
13
13
14
15
16
17
18
19
20
20
20
21
21
21
22
23
24
24
25
25
26
26
27
27
30
30
31
32
33
34
35
35
36
37
37
38
39
40
42
43
44
45
46
47
48
49
50
51
60
61
62
63
64
65
101
102
103
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 903241 | 903241 | Back-up alarm | |
| 960275 | 960275 | Terminal | |
| 928021 | 928021 | Key | |
| 1 | Instrumentpanel | Instrument panel, lower left | |
| 2 | 377356 | Cable harness | |
| 3 | 392188 | Cable harness | |
| 7 | 372999 | Holder plate | |
| 8 | 930150 | Battery switch | |
| 10 | 287597 | Relay | |
| 11 | 470021 | Battery | |
| 12 | 382267 | Battery holder | |
| 13 | 348136 | Battery cable | |
| 14 | 370076 | Cable | |
| 15 | 348303 | Battery cable | |
| 16 | 335607 | Connection cable, coarse | |
| 17 | 999027 | Horn | |
| 18 | 929023 | Indicator | |
| 19 | 903631 | Temperature sensor Hydraulic oil | |
| 20 | 586001 | Lock nut M5 | |
| 21 | 904281 | Washer 5,3x10x1 | |
| 22 | 500022 | Screw | |
| 23 | 586003 | Lock nut M8 | |
| 24 | 904229 | Washer 8,4x16x1,5 | |
| 25 | 500040 | Screw | |
| 26 | 586002 | Lock nut M6 | |
| 27 | 904228 | Washer 6,4x12x1,5 | |
| 30 | 500060 | Screw | |
| 31 | 500105 | Hexagon screw | |
| 32 | 500028 | Screw | |
| 33 | 500053 | Screw | |
| 34 | 586018 | Lock nut M10 | |
| 35 | 904230 | Washer 10,5x22x2 | |
| 36 | 500239 | Screw M8-125x50 | |
| 37 | 570005 | Nut | |
| 38 | 904044 | Washer | |
| 39 | 372775 | Cable holder | |
| 40 | 372774 | Casing | |
| 42 | 904036 | Fuse holder | |
| 43 | 904032 | Fuse holder | |
| 44 | 904037 | Fuse | |
| 45 | 921104 | Clamp | |
| 46 | 500028 | Screw | |
| 47 | 904637 | Washer 10x18x2 | |
| 48 | 902286 | Lock nut M8 | |
| 49 | 382266 | Battery insulation | |
| 50 | 904556 | Washer 8,4x16x3,0 | |
| 51 | 939958 | Relay | |
| 60 | 900798 | Back-up alarm | |
| 61 | 926611 | Screw | |
| 62 | 586001 | Lock nut M5 | |
| 63 | 904281 | Washer 5,3x10x1 | |
| 64 | 901766 | Connector 2-POL | |
| 65 | 960273 | Terminal | |
| 101 | Seatswitch | Seat switch | |
| 102 | Neutralstartswitch | Neutral start switch | |
| 103 | Stopsolenoid | Stop solenoid |
