Каталог запасных частей к технике: DYNAPAC Dynapac CC322. Drum
1
2
3
3
4
5
6
6
7
7
7
8
8
8
9
10
11
11
12
13
14
14
14
15
16
16
17
18
19
20
21
22
23
24
26
27
28
29
30
31
32
33
34
35
36
39
39
40
41
42
44
47
50
51

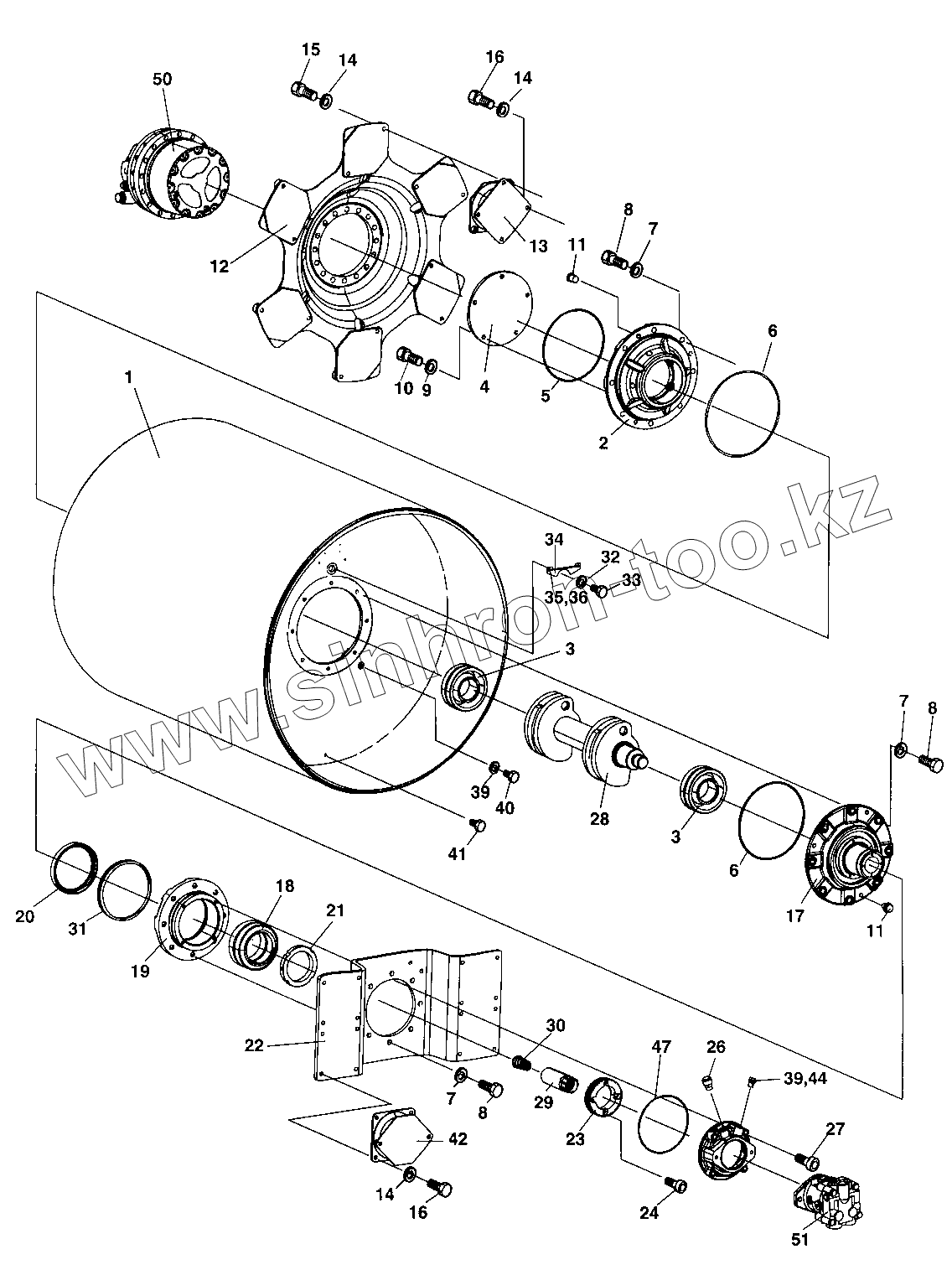

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 391360 | Drum | |
| 2 | 391280 | Bearing housing | |
| 3 | 114060 | Spherical roller bearing | |
| 4 | 391029 | Cover | |
| 5 | 160045 | O-ring | |
| 6 | 160344 | O-ring 70 | |
| 7 | 904232 | Washer 17x30x3 | |
| 8 | 500076 | Hex. screw | |
| 9 | 904230 | Washer 10,5x22x2 | |
| 10 | 500028 | Screw | |
| 11 | 900775 | Plug | |
| 12 | 391286 | Drive disc | |
| 13 | 394250 | Shock absorber | |
| 14 | 904231 | Washer 13x24x2 | |
| 15 | 925519 | Screw | |
| 16 | 500051 | Hex. screw | |
| 17 | 391277 | Bearing housing | |
| 18 | 116041 | Taper roller bearing | |
| 19 | 343318 | Bearing housing | |
| 20 | 386272 | Sealing | |
| 21 | 390897 | Shaft nut | |
| 22 | 392405 | Holder plate | |
| 23 | 391292 | Gear wheel | |
| 24 | 508048 | Screw | |
| 25 | 390160 | Motor adapter | |
| 26 | 926736 | Breather M14 | |
| 27 | 500049 | Hex. screw | |
| 28 | 391535 | Eccentric shaft | |
| 29 | 381027 | Splined sleeve | |
| 30 | 349715 | Spring | |
| 31 | 929447 | V-ring | |
| 32 | 162017 | Seal ring M30 | |
| 33 | 343744 | Magnetic plug M30 | |
| 34 | 359955 | Drop plate | |
| 35 | 904229 | Washer 8,4x16x1,5 | |
| 36 | 500019 | Screw | |
| 37 | 343801 | Sign plate | |
| 38 | 527002 | Drive screw | |
| 39 | 162027 | Sealing M12 | |
| 40 | 344196 | Plug | |
| 41 | 500163 | Screw M12x16 | |
| 42 | 394251 | Shock absorber | |
| 44 | 903726 | Steel plug threaded | |
| 47 | 160105 | O-ring | |
| 50 | Drumgear | Drum gear | |
| 51 | Vibrationmotor | Vibration motor, cpl |
