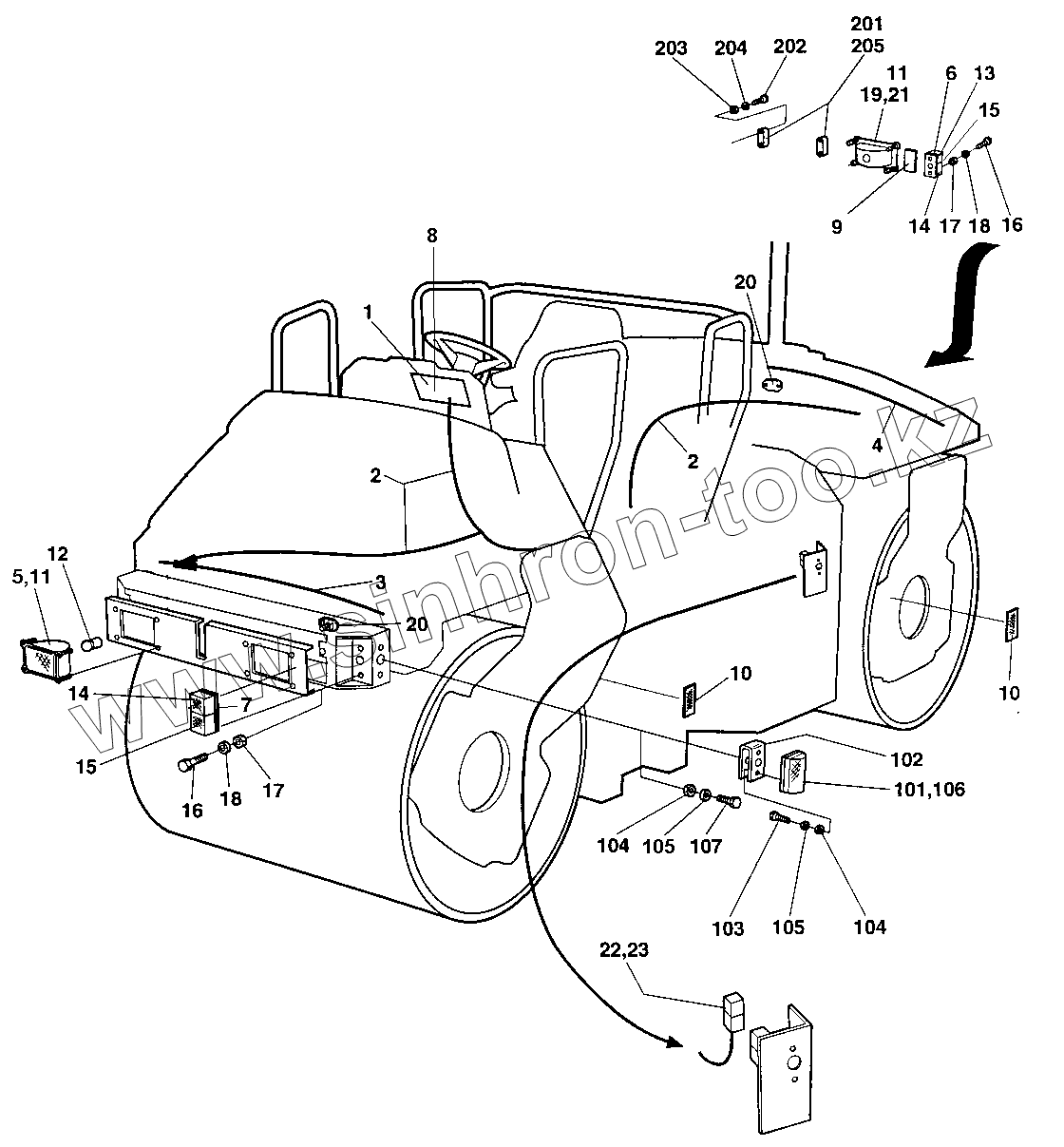

Каталог запасных частей к технике: DYNAPAC Dynapac CC322. Driving lights Direction & licenseplate ligh
1
2
2
3
4
5
5
6
6
6
6
7
7
7
7
8
9
10
10
11
11
12
13
14
14
15
15
16
16
17
17
18
18
19
20
20
21
22
23
101
102
103
104
104
105
105
106
107
201
202
203
204
205
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| Drivinglights | Drivinglights | Driving lights | |
| 1 | Instrumentpanel | Instrument panel, lower left | |
| 2 | 376178 | Cable harness | |
| 3 | 376179 | Cable harness | |
| 4 | 376180 | Cable harness | |
| 5 | 902066 | Head light | |
| 5 | 904313 | Head light | |
| 6 | 904317 | Direction lamp | |
| 6 | 937108 | Lamp glass | |
| 6 | 904318 | Direction lamp | |
| 6 | 937109 | Lamp glass | |
| 7 | 937106 | Lamp glass | |
| 7 | 937107 | Lamp glass | |
| 7 | 904316 | Direction lamp | |
| 7 | 904315 | Direction lamp | |
| 8 | 385264 | Cable harness | |
| 9 | 901182 | Reflector, red | |
| 10 | 901183 | Reflector, yellow | |
| 11 | 791389 | Drive screw | |
| 12 | 900790 | Bulb 60/55w H4 | |
| 13 | 928502 | Bulb | |
| 14 | 928502 | Bulb | |
| 15 | 985014 | Bulb | |
| 16 | 533030 | Screw | |
| 17 | 586001 | Lock nut M5 | |
| 18 | 601001 | Washer | |
| 19 | 902227 | Work lamp | |
| 20 | 392930 | Junction box | |
| 21 | 901369 | Bulb 55w H3 | |
| 22 | 904032 | Fuse holder | |
| 23 | 904039 | Fuse | |
| 101 | 902064 | Direction lights | |
| 102 | 371185 | Bracket | |
| 103 | 926611 | Screw | |
| 104 | 586001 | Lock nut M5 | |
| 105 | 904281 | Washer 5,3x10x1 | |
| 106 | 985013 | Bulb | |
| 107 | 500006 | Screw | |
| 201 | 929455 | Licence plate light | |
| 202 | 533038 | Screw | |
| 203 | 586002 | Lock nut M6 | |
| 204 | 904228 | Washer 6,4x12x1,5 | |
| 205 | 985013 | Bulb |
