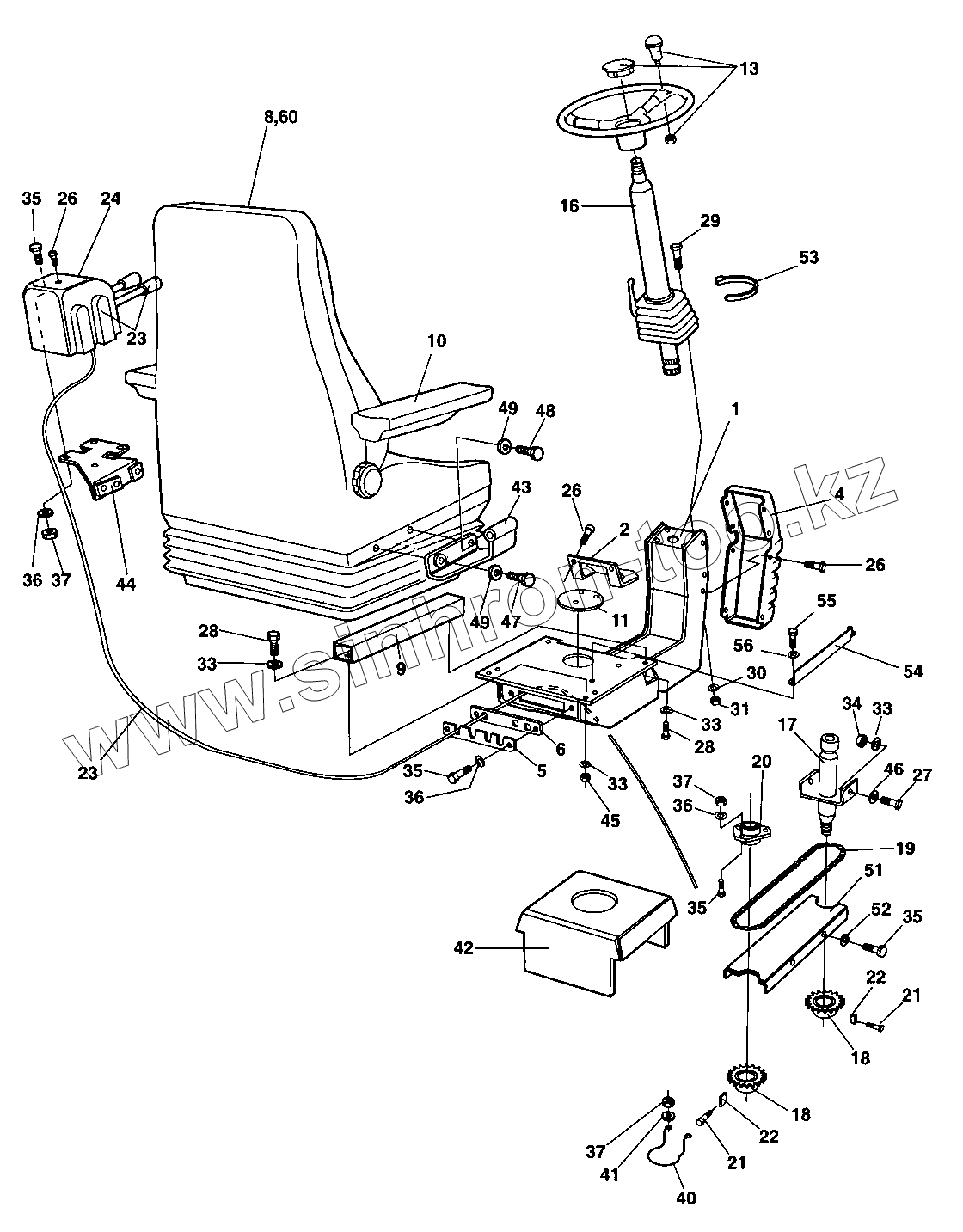

Каталог запасных частей к технике: DYNAPAC Dynapac CC322. Drivers seat, turn-over in cab

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
4
5
6
8
9
10
11
13
16
17
18
18
19
20
21
21
22
22
23
23
24
26
26
26
27
28
28
29
30
31
33
33
33
33
34
35
35
35
35
36
36
36
37
37
37
40
41
42
43
44
45
46
47
48
49
49
51
52
53
54
55
56
60
Позиция на иллюстрации Заводской номер детали Название детали
903918 903918 Bearing inner
935613 935613 Cover plate
935614 935614 Turning knob
Steeringwheel Steeringwheel Steering wheel
937621 937621 Arm rest, left
937892 937892 Seat switch
1 359900 Seat frame
2 381400 Bearing cover
4 359574 Cover
5 359914 Cover
6 359915 Grommet
8 359917 Drivers seat
9 Sliderail Slide rail
10 937620 Arm rest, right
11 359920 Plug
13 372964 Steering wheel, cpl
16 391163 Steering column
17 359919 Shaft
18 359916 Chain wheel
19 359921 Chain
20 903917 Bearing outer
21 516051 Set screw
22 350009 Flat key
23 Crosssliding Cross sliding
24 359419 Control cover
26 904206 Screw
27 500021 Screw
28 500053 Screw
29 500028 Screw
30 904557 Washer 10,5x22x4
31 570006 Nut
33 904229 Washer 8,4x16x1,5
34 586003 Lock nut M8
35 500040 Screw
36 904228 Washer 6,4x12x1,5
37 586002 Lock nut M6
40 372672 Chain guard
41 603001 Washer
42 Crosssliding Cross sliding
43 359971 Control cable holder
44 359972 Control cable holder
45 570005 Nut
46 904734 Washer 8,4x26x4
47 903914 Screw
48 500031 Screw
49 904230 Washer 10,5x22x2
51 381403 Chain supporter
52 904735 Washer
53 313041 Cable ties
54 386128 Stop
55 541703 Screw M6x16
56 904228 Washer 6,4x12x1,5
60 383200 Safety belt
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
