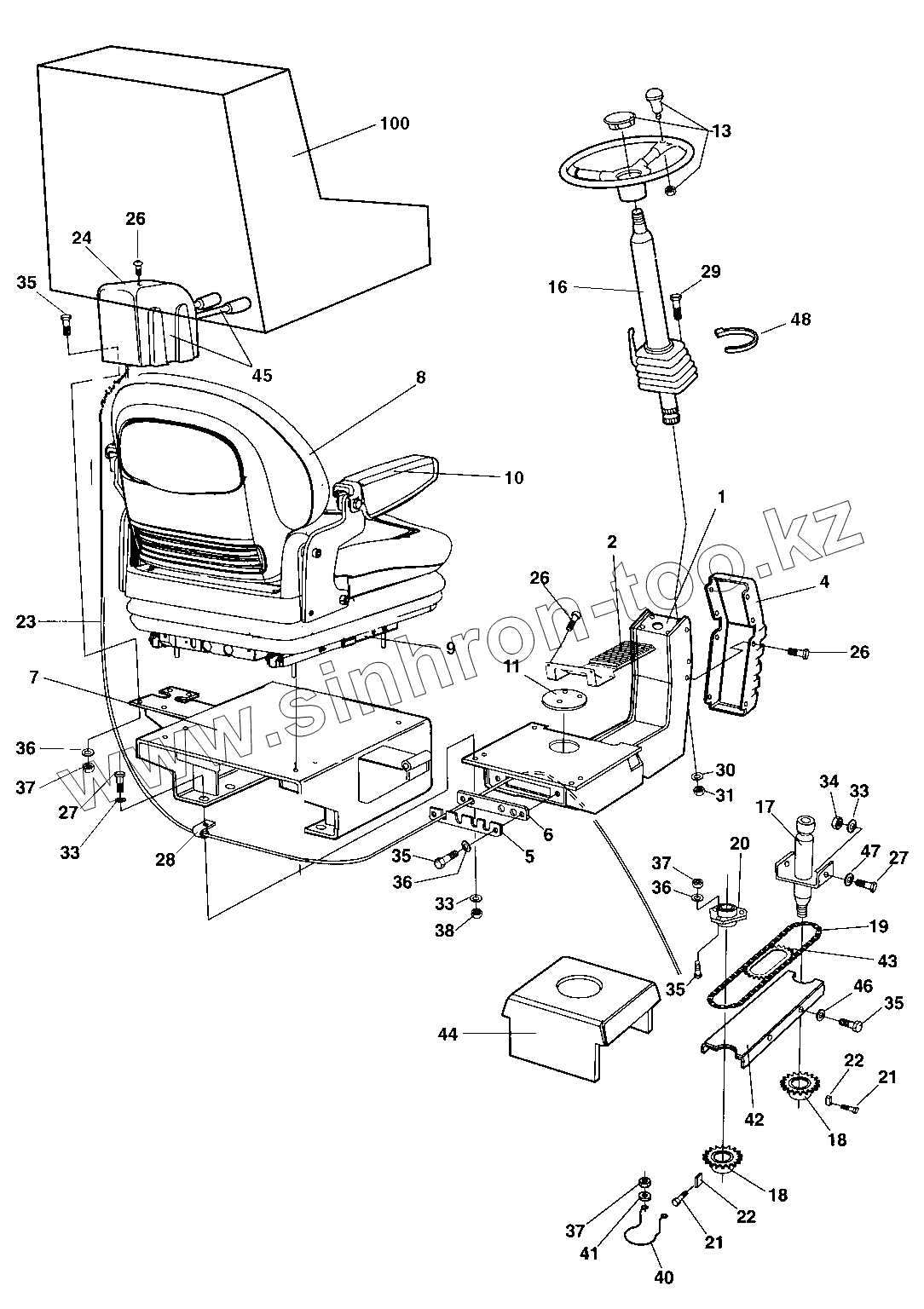

Каталог запасных частей к технике: DYNAPAC Dynapac CC322. Drivers seat, turn-over
1
2
4
5
6
7
8
9
10
11
13
16
17
18
18
19
20
21
21
22
22
23
24
26
26
26
27
27
28
29
30
31
33
33
33
34
35
35
35
35
36
36
36
37
37
37
38
40
41
42
43
44
45
46
47
48
100
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 903918 | 903918 | Bearing inner | |
| 935613 | 935613 | Cover plate | |
| 935614 | 935614 | Turning knob | |
| Steeringwheel | Steeringwheel | Steering wheel | |
| 945622 | 945622 | Seat switch | |
| 1 | 359900 | Seat frame | |
| 2 | 381400 | Bearing cover | |
| 4 | 359574 | Cover | |
| 5 | 359914 | Cover | |
| 6 | 359915 | Grommet | |
| 7 | 391346 | Seat frame | |
| 8 | 377518 | Drivers seat, cpl | |
| 9 | 945661 | Adjuster kit | |
| 10 | 390963 | Arm rest kit | |
| 11 | 359920 | Plug | |
| 13 | 372964 | Steering wheel, cpl | |
| 16 | 391163 | Steering column | |
| 17 | 359919 | Shaft | |
| 18 | 359916 | Chain wheel | |
| 19 | 359921 | Chain | |
| 20 | 903917 | Bearing outer | |
| 21 | 516051 | Set screw | |
| 22 | 350009 | Flat key | |
| 23 | Crosssliding | Cross sliding | |
| 24 | 359419 | Control cover | |
| 26 | 904206 | Screw | |
| 27 | 500021 | Screw | |
| 28 | 921104 | Clamp | |
| 29 | 500028 | Screw | |
| 30 | 904557 | Washer 10,5x22x4 | |
| 31 | 570006 | Nut | |
| 33 | 904229 | Washer 8,4x16x1,5 | |
| 34 | 586003 | Lock nut M8 | |
| 35 | 500040 | Screw | |
| 36 | 904228 | Washer 6,4x12x1,5 | |
| 37 | 586002 | Lock nut M6 | |
| 38 | 570005 | Nut | |
| 40 | 372672 | Chain guard | |
| 41 | 603001 | Washer | |
| 42 | 381403 | Chain supporter | |
| 43 | Notused | Not used on this model | |
| 44 | Crosssliding | Cross sliding | |
| 45 | Crosssliding | Cross sliding | |
| 46 | 904735 | Washer | |
| 47 | 904231 | Washer 13x24x2 | |
| 48 | 313041 | Cable ties | |
| 100 | 348331 | Seat cover |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
