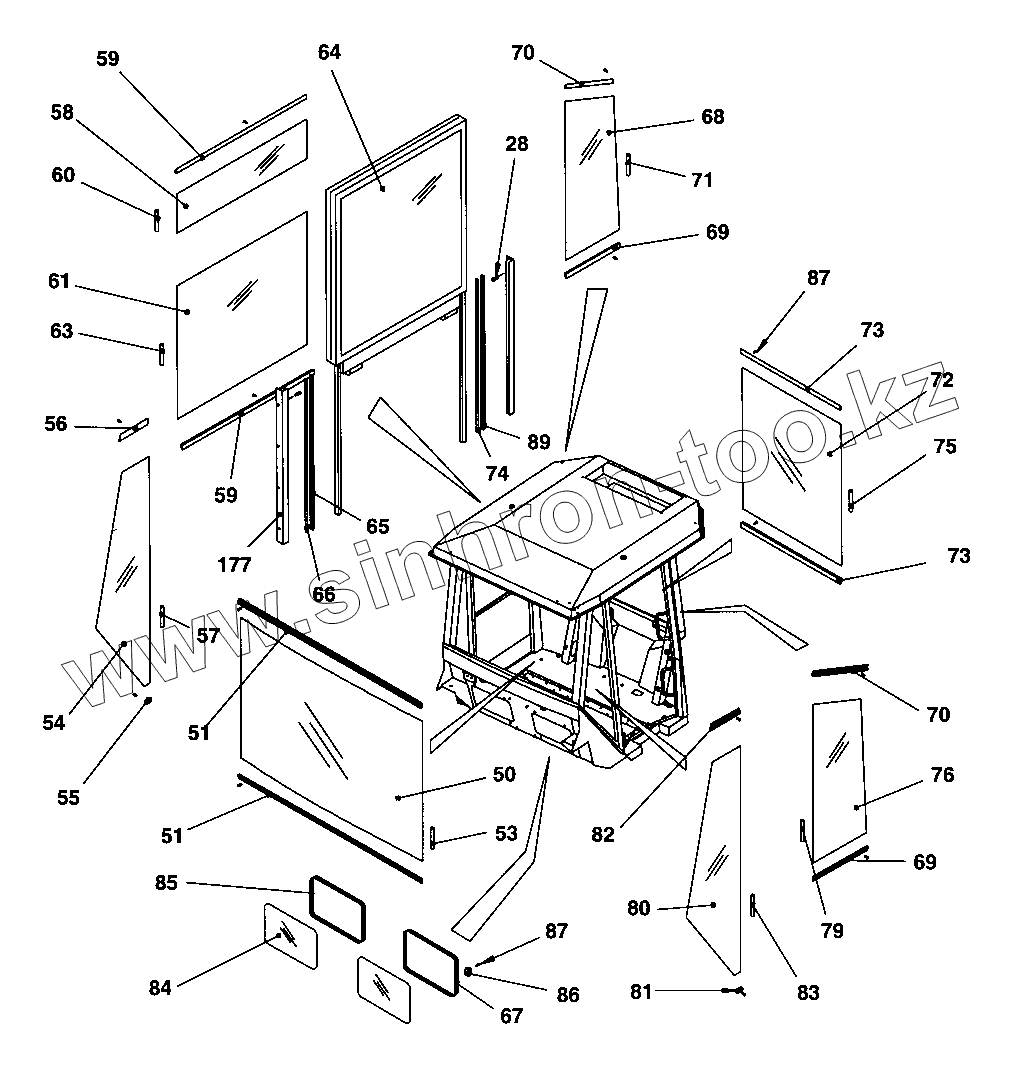

Каталог запасных частей к технике: DYNAPAC Dynapac CC322. Cab Screens
28
50
51
51
53
54
55
56
57
58
59
59
60
61
63
64
65
66
67
68
69
69
70
70
71
72
73
73
74
75
76
79
80
81
82
83
84
85
86
87
87
89
177
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 28 | 901315 | Screw | |
| 50 | 937395 | Front screen | |
| 51 | 908546 | List | |
| 53 | 938834 | Sealing strip | |
| 54 | 938616 | Screen | |
| 55 | 938839 | List | |
| 56 | 938840 | List | |
| 57 | 938834 | Sealing strip | |
| 58 | 938614 | Screen | |
| 59 | 938841 | List | |
| 60 | 938834 | Sealing strip | |
| 61 | 938613 | Screen | |
| 63 | 938834 | Sealing strip | |
| 64 | 938612 | Screen | |
| 65 | 908573 | Sealing | |
| 66 | 908574 | Sealing | |
| 67 | 938837 | Sealing strip | |
| 68 | 938615 | Screen | |
| 69 | 908556 | List | |
| 70 | 938836 | List | |
| 71 | 938834 | Sealing strip | |
| 72 | 937403 | Screen | |
| 73 | 908764 | List | |
| 74 | 908573 | Sealing | |
| 75 | 938834 | Sealing strip | |
| 76 | 938566 | Screen | |
| 79 | 938834 | Sealing strip | |
| 80 | 937405 | Screen | |
| 81 | 908993 | List | |
| 82 | 908557 | List | |
| 83 | 938834 | Sealing strip | |
| 84 | 938567 | Screen | |
| 85 | 938837 | Sealing strip | |
| 86 | 938838 | List | |
| 87 | 937932 | Screw | |
| 89 | 908574 | Sealing | |
| 177 | 908575 | Slide bar |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
