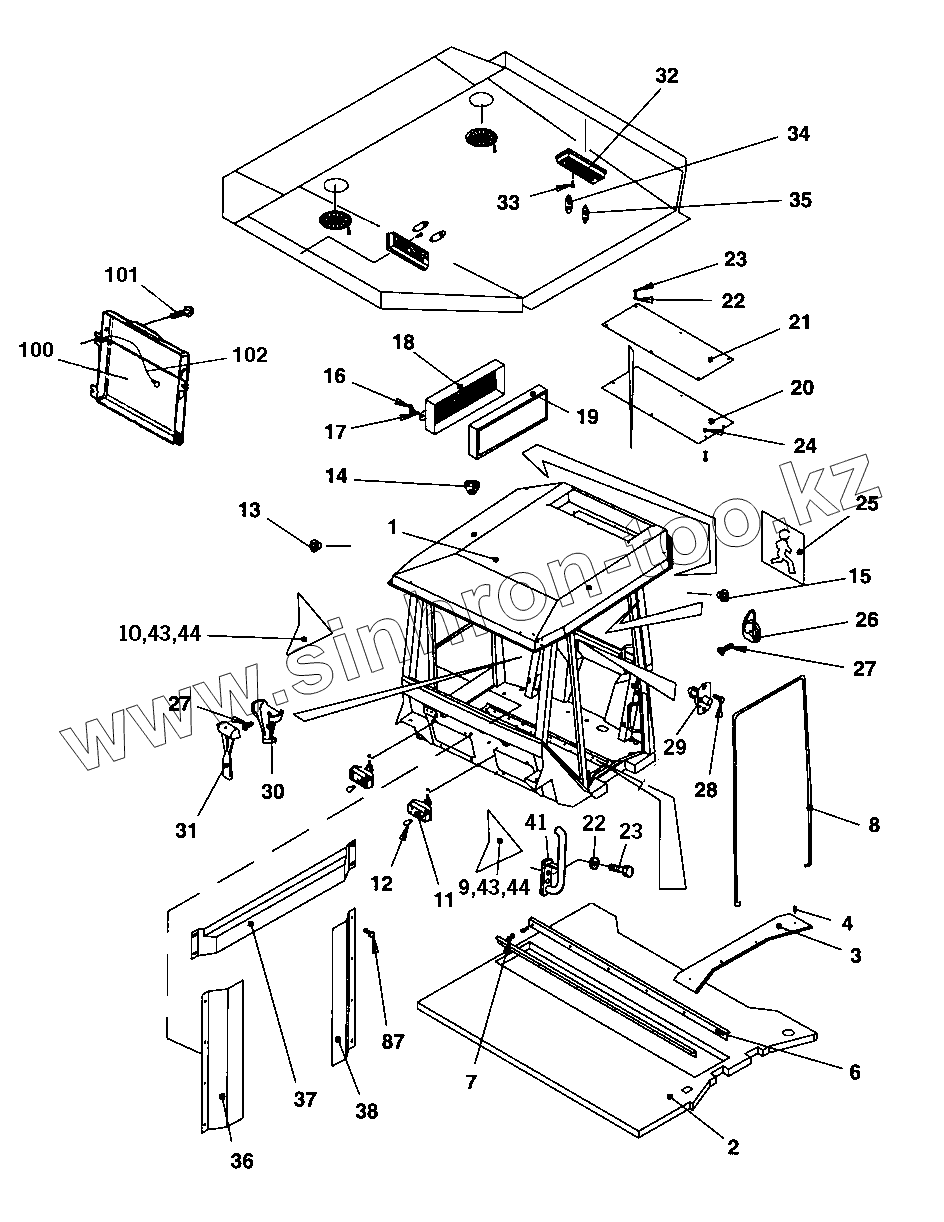

Каталог запасных частей к технике: DYNAPAC Dynapac CC322. Cab Interior
1
2
3
4
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
23
23
24
25
26
27
27
28
29
30
31
32
33
34
35
36
37
38
41
43
43
44
44
87
100
101
102
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 940849 | 940849 | Side plate | |
| 940848 | 940848 | Side plate | |
| 1 | 385736 | Cab, cpl | |
| 2 | 938848 | Floor mat | |
| 3 | 908511 | List left | |
| 4 | 903808 | Screw | |
| 6 | 908510 | List | |
| 7 | 535005 | Screw | |
| 8 | 938842 | Sealing strip | |
| 9 | 938843 | Black sticker | |
| 10 | 938844 | Black sticker | |
| 11 | 908268 | Work light | |
| 12 | 938845 | Bulb | |
| 13 | 938660 | Grommet | |
| 14 | 908497 | Grommet | |
| 15 | 909510 | Grommet | |
| 16 | 908504 | Handle | |
| 17 | 908503 | O-ring | |
| 18 | 938846 | Filter housing | |
| 19 | 938847 | Air filter | |
| 20 | 938678 | Cover | |
| 21 | 938679 | Cover | |
| 22 | 936277 | Washer | |
| 23 | 500053 | Screw | |
| 24 | 586003 | Lock nut M8 | |
| 25 | 935589 | Decal | |
| 26 | 908505 | Hook | |
| 27 | 938676 | Screw | |
| 28 | 901315 | Screw | |
| 29 | 908500 | Door switch | |
| 30 | 908506 | Holder | |
| 31 | 908507 | Emergency hammer | |
| 32 | 908515 | Inner light | |
| 33 | 541535 | Screw | |
| 34 | 985051 | Bulb | |
| 35 | 985013 | Bulb | |
| 36 | 938850 | Cover plate | |
| 37 | 938851 | Cover plate | |
| 38 | 938852 | Cover plate | |
| 41 | 370806 | Grab handle | |
| 43 | 904228 | Washer 6,4x12x1,5 | |
| 44 | 500040 | Screw | |
| 87 | 937932 | Screw | |
| 100 | 383705 | Instruction book holder | |
| 101 | 791226 | Screw | |
| 102 | 357643 | Wire |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
