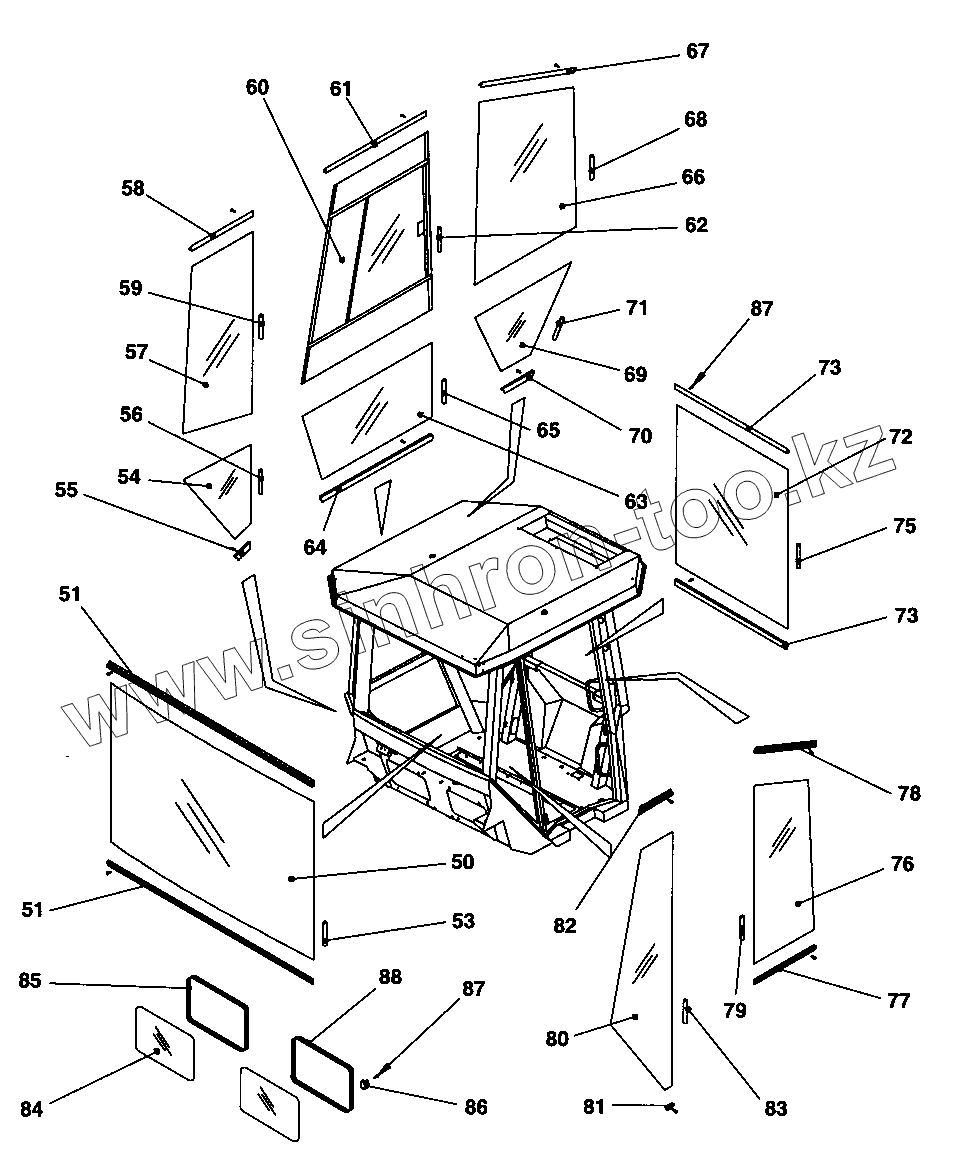

Каталог запасных частей к технике: DYNAPAC Dynapac CC322. Cab, screens
50
51
51
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
73
75
76
77
78
79
80
81
82
83
84
85
86
87
87
88
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 50 | 937395 | Front screen | |
| 51 | 908546 | List | |
| 53 | 938834 | Sealing strip | |
| 54 | 937398 | Screen | |
| 55 | 908549 | List | |
| 56 | 938834 | Sealing strip | |
| 57 | 937397 | Screen | |
| 58 | 908548 | List | |
| 59 | 938834 | Sealing strip | |
| 60 | 937399 | Screen sliding | |
| 61 | 908550 | List | |
| 62 | 938834 | Sealing strip | |
| 63 | 937400 | Screen | |
| 64 | 908551 | List | |
| 65 | 938834 | Sealing strip | |
| 66 | 938565 | Screen | |
| 67 | 938835 | List | |
| 68 | 938834 | Sealing strip | |
| 69 | 937402 | Screen | |
| 70 | 908553 | List | |
| 71 | 938834 | Sealing strip | |
| 72 | 937403 | Screen | |
| 73 | 908764 | List | |
| 75 | 938834 | Sealing strip | |
| 76 | 938566 | Screen | |
| 77 | 908556 | List | |
| 78 | 938836 | List | |
| 79 | 938834 | Sealing strip | |
| 80 | 937405 | Screen | |
| 81 | 908993 | List | |
| 82 | 908557 | List | |
| 83 | 938834 | Sealing strip | |
| 84 | 938567 | Screen | |
| 85 | 938837 | Sealing strip | |
| 86 | 938838 | List | |
| 87 | 937932 | Screw | |
| 88 | 938837 | Sealing strip |
