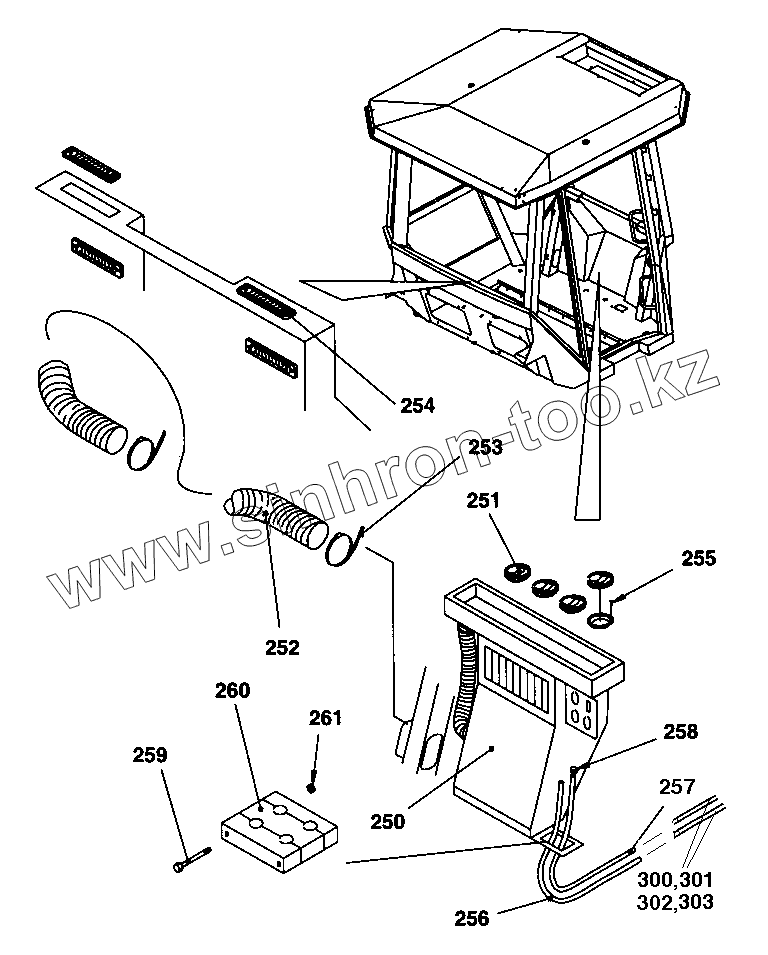

Каталог запасных частей к технике: DYNAPAC Dynapac CC322. Cab, heater and, fan system
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
CA1400 (2016)
CA2500D (2016)
CA2500D (2018)
CA2500D-PD (2018)
CA250D (2011)
CA252D (2008)
CA2800D (2017)
CA3500D (2016)
CA4000D (2017)
CA4000D (2020)
CA4600D (2019)
CA5500D (2015)
CA610PD (2014)
CA6500 (2018)
CC1000 (2019)
CC1100CC (2015)
CC1200C Plus (2015)
CC1200C VI (2018)
CC1200CC (2018)
CC125 (2015)
CC1250 (2015)
CC1300 (2018)
CC1300C (2015)
CC1300C (2016)
CC2200 (2018)
CC2200 (2020)
CC2300C (2018)
CC3300 (2018)
CC4000 VI (2018)
CC4200C VI (2020)
CC5200C (2018)
CC6200 VI (2020)
CC800 (2019)
CC900 (2018)
CC900S (2018)
CG2300 (2018)
CP142 (2015)
CP275 (2014)
Dynapac CA1500 (2017)
Dynapac CA2500 (2012)
Dynapac CA302D (2008)
Dynapac CA302D (2010)
Dynapac CA5000D (2017)
Dynapac CC142 (2009)
Dynapac CC2200C (2015)
Dynapac CC224HF (2012)
Dynapac CC322 (2008)
Dynapac CC422 (2010)
Dynapac CC5200 (2014)
Dynapac CC5200 (2017)
Dynapac CC5200 (2017)
Dynapac CC5200 VI (2017)
Dynapac CC800 (2013)
Dynapac CC800 (2014)
Dynapac F1200C/CS (2018)
Dynapac F1200CS/CS (2018)
Dynapac F1800C (2018)
Dynapac F181C (2010)
Dynapac PL2000LS (2010)
Dynapac PL2000LS (2010)
Dynapac PL2000S (2010)
Dynapac PL2000S (2010)
Dynapac SCC1300 (2014)
Dynapac SD2500C (ч. 1) (2018)
Dynapac SD2500C (ч. 2) (2018)
Dynapac SD2550C (ч. 1) (2018)
Dynapac SD2550C (ч. 2) (2018)
F2500C (2018)
SD2550CS (2015)
Схема
>
Не выбрано
DYNAPAC CC322 SN 62110900-
Service kits
940237 Service kit 50h, Deutz 4cyl 2011
940238 Service kit 500h, Deutz 4cyl 2011
940239 Service kit 1000h, Deutz 4cyl 2011
Repair kits
945721 Eccentric shaft kit
938891 Drum rotation kit
945720 Scraper kit CC322/422/432
945717 Shock absorber kit, drum CC222/322,CG223
938558 Steering hitch kit
Frames
Covers, ladders
Scrapers Standard
Scrapers, spring loaded, front drum
Scrapers, spring loaded, rear drum
Articulated link
Structure
Noise suppression Left hood
Sprinkler system Tanks
Sprinkler system, front
Sprinkler system, rear
Drum
Diesel engine Deutz BF04L 2011 Up to 62111099
Diesel engine Deutz TD2011 L04 I From 62111100
Intake system
Fuel system
Exhaust system
Propulsion system Pump
Propulsion system Motors
Vibration system Pump
Vibration system Motors
359140 Valve Vibration
374494 Oil cooler cpl
Steering system Up to 62111099
Steering system From 62111100
359139 Pilot valve
Offset drum Option
380780 Direction control valve
373403 Cylinder Offset drum
Brake system
Electrical equipment
Electrical equipment Additional for cab
Electric battery switch
Instrument box
Instrument panel, main
Speed and frequency Sensors
Instrument panel Upper left
Instrument panel Upper right
Instrument panel Lower left
Instrument panel Lower right
Instrument panel Relay, fuses
Emergency stop panel
Driving lights Direction & licenseplate ligh
Working lights with/without Rops
Protecting cover, Headlight
Working lights, cab
Rotating beacon
Tachograph
Offset drum Electrical equipment
Drivers platform
Drivers platform For cab
Drivers seat, turn-over
Drivers seat, turn-over in cab
Cross sliding Controls
Cross sliding Carrier
391163 Steering column
Forward and reverse control
Speed limiter Option
Engine controls
Engine controls
Rear mirror
Rops and fops With seat belt
Canopy
Cab, interior
Cab, screens
Cab, inside panels
Cab, wipers, right side
Cab, wipers, front and rear
Cab, door, left side
Cab, door, left side (3-split)
Cab, heater and, fan system
385769 Heater unit
Cab, roof mounted, electrical switches
Cab Interior
Cab Screens
Cab Inside panels
Cab, equipment
Cab, water tank wipers
Exterior rear mirrors
Radio and cassette/cd player
Plates and decals
Standard equipment
Eyelet
SMV-sign, Plate holder
Edge cutter, cpl
Edge cutter
Edge cutter Hydraulics without offset
Edge cutter Hydraulics with offset
Edge cutter Sprinkler system
Air conditioner assembly
Condensor assembly
385766 Heater/AC unit
Roof hatch
Tool equipment
Asphalt temperature meter
250
251
252
253
254
255
256
257
258
259
260
261
300
301
302
303
Позиция на иллюстрации
Заводской номер детали
Название детали
250
385769
Heater unit
251
385442
Air nozzle
252
908599
Hose
253
908600
Clamp
254
908598
Nozzle
255
938691
Screw
256
938872
Hose
257
938873
Hose
258
938874
Clamp
259
500153
Screw
260
938871
Hose clamp
261
570004
Hex. nut
300
370761
Hose
301
747691
Hollow screw
302
330331
Washer
303
371727
Sleeve
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
