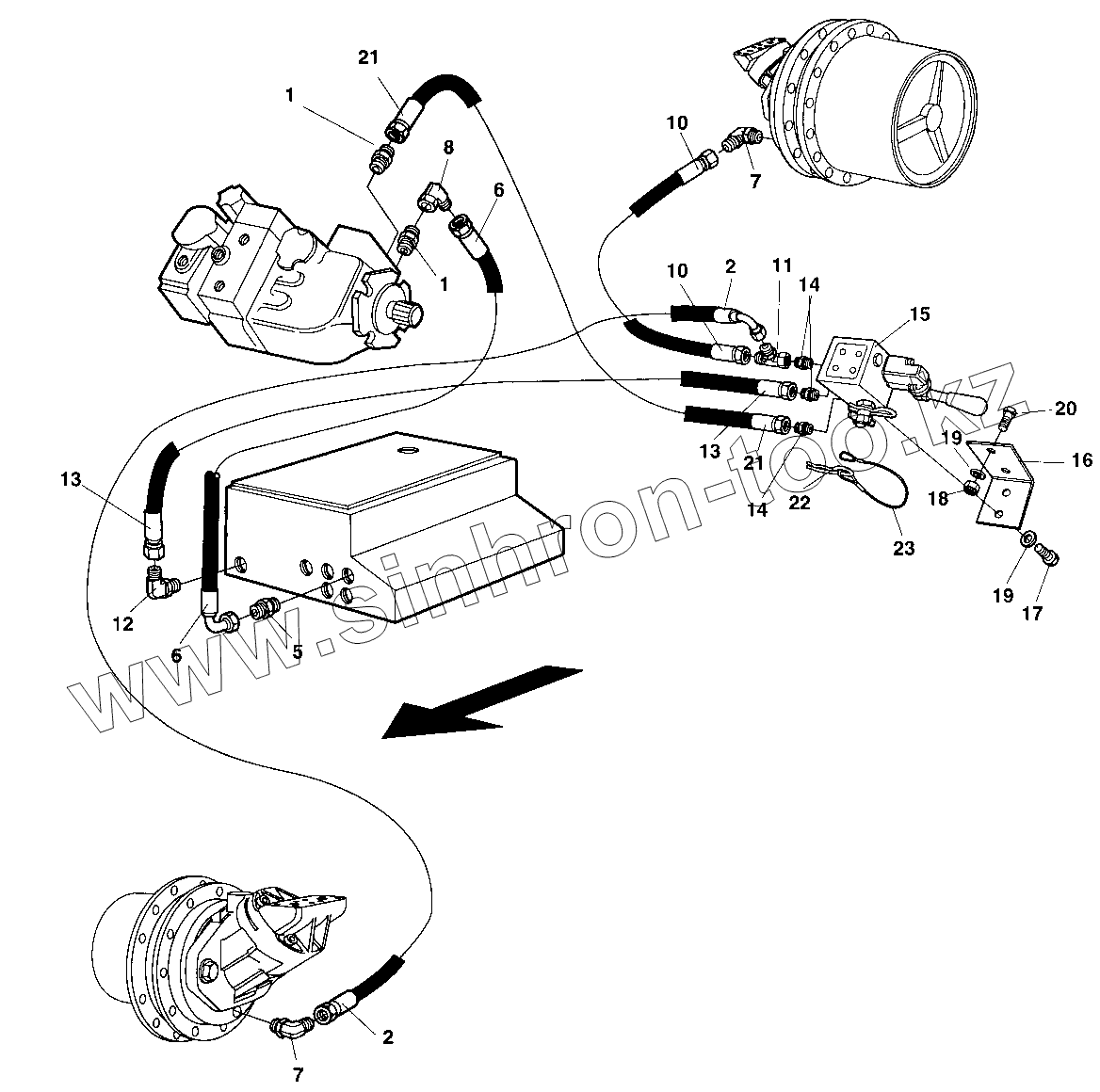

Brake system
Electrical equipment
Electrical equipment Additional for cab
Electric battery switch
Instrument box
Instrument panel, main
Speed and frequency Sensors
Instrument panel Upper left
Instrument panel Upper right
Instrument panel Lower left
Instrument panel Lower right
Instrument panel Relay, fuses
Emergency stop panel
Driving lights Direction & licenseplate ligh
Working lights with/without Rops
Protecting cover, Headlight
Working lights, cab
Rotating beacon
Tachograph
Offset drum Electrical equipment
Drivers platform
Drivers platform For cab
Drivers seat, turn-over
Drivers seat, turn-over in cab
Cross sliding Controls
Cross sliding Carrier
391163 Steering column
Forward and reverse control
Speed limiter Option
Engine controls
Engine controls
Rear mirror
Rops and fops With seat belt
Canopy
Cab, interior
Cab, screens
Cab, inside panels
Cab, wipers, right side
Cab, wipers, front and rear
Cab, door, left side
Cab, door, left side (3-split)
Cab, heater and, fan system
385769 Heater unit
Cab, roof mounted, electrical switches
Cab Interior
Cab Screens
Cab Inside panels
Cab, equipment
Cab, water tank wipers
Exterior rear mirrors
Radio and cassette/cd player
Plates and decals
Standard equipment
Eyelet
SMV-sign, Plate holder
Edge cutter, cpl
Edge cutter
Edge cutter Hydraulics without offset
Edge cutter Hydraulics with offset
Edge cutter Sprinkler system
Air conditioner assembly
Condensor assembly
385766 Heater/AC unit
Roof hatch
Tool equipment
Asphalt temperature meter
1
1
2
2
5
6
6
7
7
8
10
10
11
12
13
13
14
14
15
16
17
18
19
19
20
21
21
22
23
Позиция на иллюстрации
Заводской номер детали
Название детали
1
234233
Adapter
2
484095
Hydraulic hose
5
234349
Connector
6
482782
Hydraulic hose
7
792094
Elbow 90
8
334524
Connector
10
484096
Hydraulic hose
11
334234
Tee-connector
12
334410
Adapter
13
483463
Hydraulic hose
14
334463
Connector
15
392743
Hand pump
16
392954
Bracket
17
500019
Screw
18
586003
Lock nut M8
19
904229
Washer 8,4x16x1,5
20
500021
Screw
21
482757
Hydraulic hose
22
635061
Hair clip
23
343775
Wire
