Каталог запасных частей к технике: DYNAPAC Dynapac CC322. 945721 Eccentric shaft kit

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано CA1400 (2016) CA2500D (2016) CA2500D (2018) CA2500D-PD (2018) CA250D (2011) CA252D (2008) CA2800D (2017) CA3500D (2016) CA4000D (2017) CA4000D (2020) CA4600D (2019) CA5500D (2015) CA610PD (2014) CA6500 (2018) CC1000 (2019) CC1100CC (2015) CC1200C Plus (2015) CC1200C VI (2018) CC1200CC (2018) CC125 (2015) CC1250 (2015) CC1300 (2018) CC1300C (2015) CC1300C (2016) CC2200 (2018) CC2200 (2020) CC2300C (2018) CC3300 (2018) CC4000 VI (2018) CC4200C VI (2020) CC5200C (2018) CC6200 VI (2020) CC800 (2019) CC900 (2018) CC900S (2018) CG2300 (2018) CP142 (2015) CP275 (2014) Dynapac CA1500 (2017) Dynapac CA2500 (2012) Dynapac CA302D (2008) Dynapac CA302D (2010) Dynapac CA5000D (2017) Dynapac CC142 (2009) Dynapac CC2200C (2015) Dynapac CC224HF (2012) Dynapac CC322 (2008) Dynapac CC422 (2010) Dynapac CC5200 (2014) Dynapac CC5200 (2017) Dynapac CC5200 (2017) Dynapac CC5200 VI (2017) Dynapac CC800 (2013) Dynapac CC800 (2014) Dynapac F1200C/CS (2018) Dynapac F1200CS/CS (2018) Dynapac F1800C (2018) Dynapac F181C (2010) Dynapac PL2000LS (2010) Dynapac PL2000LS (2010) Dynapac PL2000S (2010) Dynapac PL2000S (2010) Dynapac SCC1300 (2014) Dynapac SD2500C (ч. 1) (2018) Dynapac SD2500C (ч. 2) (2018) Dynapac SD2550C (ч. 1) (2018) Dynapac SD2550C (ч. 2) (2018) F2500C (2018) SD2550CS (2015)

Схема > Не выбрано DYNAPAC CC322 SN 62110900- Service kits 940237 Service kit 50h, Deutz 4cyl 2011 940238 Service kit 500h, Deutz 4cyl 2011 940239 Service kit 1000h, Deutz 4cyl 2011 Repair kits 945721 Eccentric shaft kit 938891 Drum rotation kit 945720 Scraper kit CC322/422/432 945717 Shock absorber kit, drum CC222/322,CG223 938558 Steering hitch kit Frames Covers, ladders Scrapers Standard Scrapers, spring loaded, front drum Scrapers, spring loaded, rear drum Articulated link Structure Noise suppression Left hood Sprinkler system Tanks Sprinkler system, front Sprinkler system, rear Drum Diesel engine Deutz BF04L 2011 Up to 62111099 Diesel engine Deutz TD2011 L04 I From 62111100 Intake system Fuel system Exhaust system Propulsion system Pump Propulsion system Motors Vibration system Pump Vibration system Motors 359140 Valve Vibration 374494 Oil cooler cpl Steering system Up to 62111099 Steering system From 62111100 359139 Pilot valve Offset drum Option 380780 Direction control valve 373403 Cylinder Offset drum Brake system Electrical equipment Electrical equipment Additional for cab Electric battery switch Instrument box Instrument panel, main Speed and frequency Sensors Instrument panel Upper left Instrument panel Upper right Instrument panel Lower left Instrument panel Lower right Instrument panel Relay, fuses Emergency stop panel Driving lights Direction & licenseplate ligh Working lights with/without Rops Protecting cover, Headlight Working lights, cab Rotating beacon Tachograph Offset drum Electrical equipment Drivers platform Drivers platform For cab Drivers seat, turn-over Drivers seat, turn-over in cab Cross sliding Controls Cross sliding Carrier 391163 Steering column Forward and reverse control Speed limiter Option Engine controls Engine controls Rear mirror Rops and fops With seat belt Canopy Cab, interior Cab, screens Cab, inside panels Cab, wipers, right side Cab, wipers, front and rear Cab, door, left side Cab, door, left side (3-split) Cab, heater and, fan system 385769 Heater unit Cab, roof mounted, electrical switches Cab Interior Cab Screens Cab Inside panels Cab, equipment Cab, water tank wipers Exterior rear mirrors Radio and cassette/cd player Plates and decals Standard equipment Eyelet SMV-sign, Plate holder Edge cutter, cpl Edge cutter Edge cutter Hydraulics without offset Edge cutter Hydraulics with offset Edge cutter Sprinkler system Air conditioner assembly Condensor assembly 385766 Heater/AC unit Roof hatch Tool equipment Asphalt temperature meter

3

3

5

6

6

20

31

47

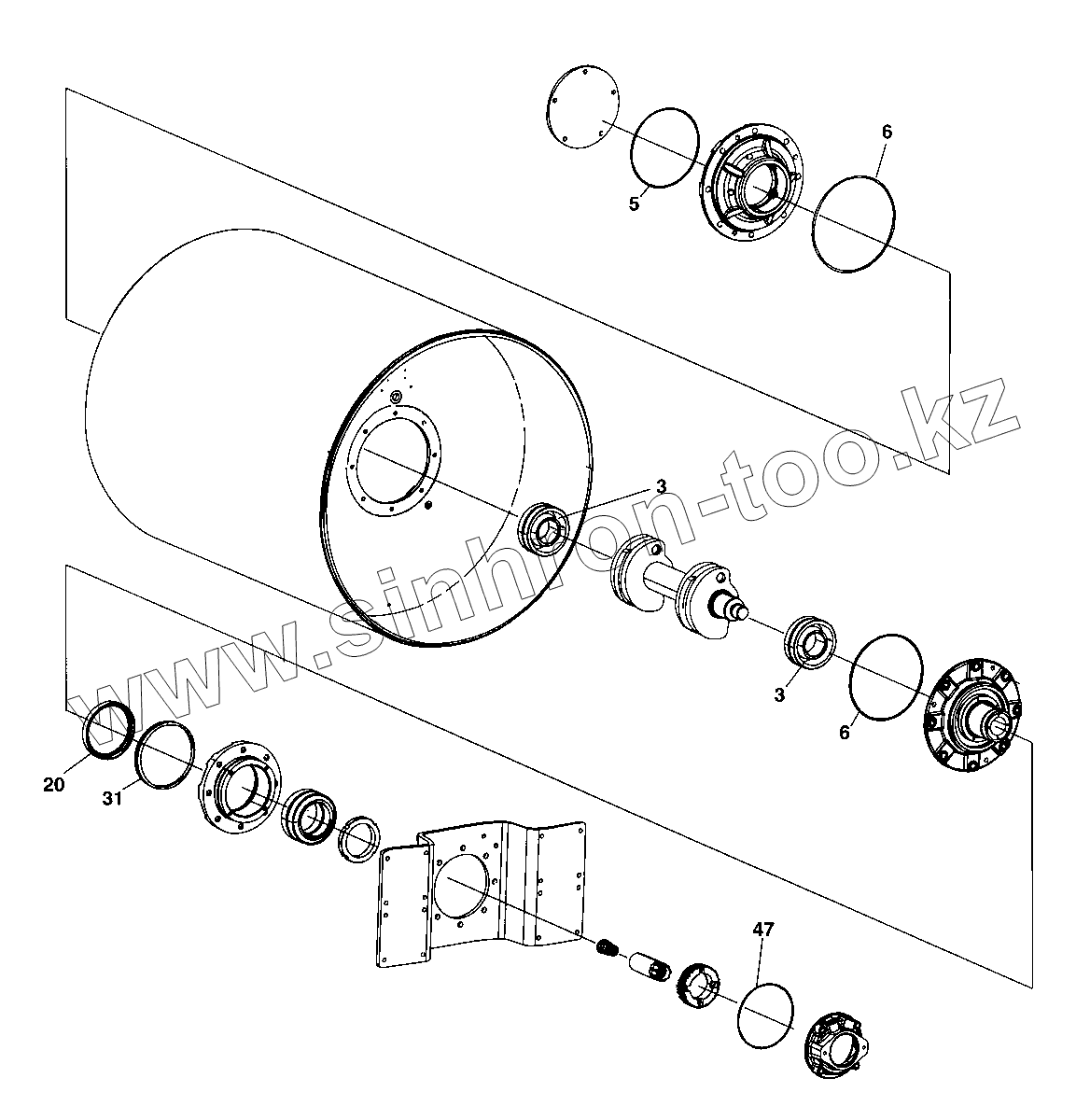

Позиция на иллюстрации	Заводской номер детали		Название детали
3	114060		Spherical roller bearing
5	160045		O-ring
6	160344		O-ring 70
20	386272		Sealing
31	929447		V-ring
47	160105		O-ring
