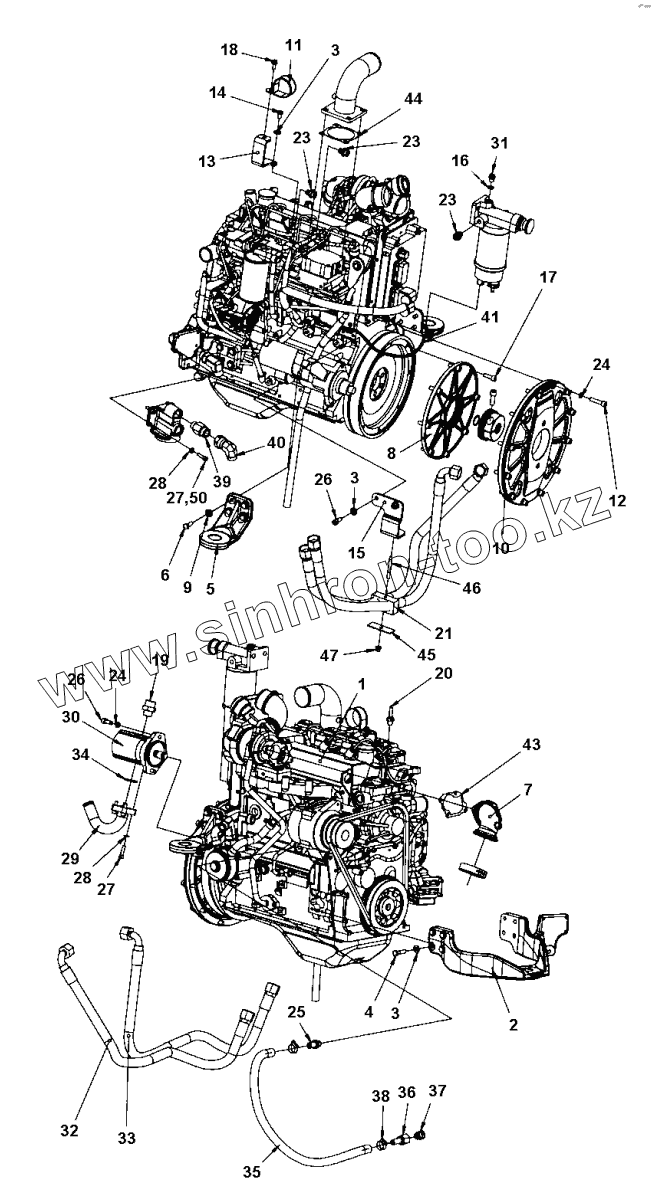

Каталог запасных частей к технике: DYNAPAC Dynapac CC224HF. Engine module 392392E
1
1
1
1
1
1
1
1
1
1
1
2
2
3
3
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
20
21
23
23
23
24
24
25
26
26
27
27
28
28
29
30
31
32
33
34
35
36
37
38
39
40
41
43
44
45
46
47
50
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4700392391 | Diesel engine | |
| 1 | 4700392390 | Diesel engine | |
| 1 | 4700950638 | Oil pressure switch | |
| 1 | 4700950637 | Blind plug | |
| 1 | 4700939070 | Gasket, valve cover | |
| 1 | 4700950315 | V-belt | |
| 1 | 4700950301 | Pre-fuel filter element | |
| 1 | 4700939068 | Oil filter | |
| 1 | 4700950640 | Alternator | |
| 1 | 4700950636 | Starter | |
| 1 | 4700950302 | Fuel filter element | |
| 2 | 4700392501 | Engine bracket | |
| 2 | 4700397257 | Engine bracket | |
| 3 | 4700904230 | Washer | |
| 4 | 4700500212 | Screw | |
| 5 | 4700392504 | Engine bracket | |
| 6 | 4700947683 | Screw | |
| 7 | 4700391962 | Exhaust pipe | |
| 8 | 4700394818 | Coupling | |
| 9 | 4700904557 | Washer | |
| 10 | 4700395135 | Pump bracket | |
| 11 | 4700904352 | Clamp | |
| 12 | 4700508030 | Screw | |
| 13 | 4700393414 | Bracket | |
| 13 | 4812110535 | Bracket | |
| 14 | 4700500043 | Hex. screw | |
| 15 | 4812110873 | Bracket | |
| 16 | 4700747282 | Copper washer | |
| 17 | 4700508029 | Cylinder screw | |
| 18 | 4700500505 | Screw | |
| 19 | 4700904728 | Adapter | |
| 20 | 4700792544 | Connector | |
| 21 | 4700791711 | Pipe clamp | |
| 23 | 4700792604 | Quick connect coupling | |
| 24 | 4700904637 | Washer | |
| 25 | 4700379607 | Hose connection | |
| 26 | 4700508096 | Hexagon socket head cap screw | |
| 27 | 4700508048 | Hexagon socket head cap screw | |
| 28 | 4700904229 | Washer | |
| 29 | 4700392532 | Suction pipe | |
| 30 | 4700392528 | Hydraulic pump | |
| 31 | 4700903190 | Steel plug | |
| 32 | 4812110991 | Hydraulic hose | |
| 33 | 4812110992 | Hydraulic hose | |
| 34 | 4700813429 | O-ring | |
| 35 | 4700205112 | Coolant hose | |
| 36 | 4700792502 | Hose connection | |
| 37 | 4700232231 | Plug | |
| 38 | 4700313004 | Hose clamp | |
| 39 | 4700395944 | Connector | |
| 40 | 4700904584 | Connector elbow 90 ORFS | |
| 41 | 4700396885 | Cable harness | |
| 43 | 4700395108 | Gasket | |
| 44 | 4812110232 | Gasket | |
| 45 | 4700791712 | Cover plate | |
| 46 | Coverplate | Cover plate | |
| 47 | 4700902286 | Lock nut | |
| 50 | 4700508092 | Screw |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
