Каталог запасных частей к технике: DYNAPAC Dynapac CC224HF. Drum bearing module 391279

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано CA1400 (2016) CA2500D (2016) CA2500D (2018) CA2500D-PD (2018) CA250D (2011) CA252D (2008) CA2800D (2017) CA3500D (2016) CA4000D (2017) CA4000D (2020) CA4600D (2019) CA5500D (2015) CA610PD (2014) CA6500 (2018) CC1000 (2019) CC1100CC (2015) CC1200C Plus (2015) CC1200C VI (2018) CC1200CC (2018) CC125 (2015) CC1250 (2015) CC1300 (2018) CC1300C (2015) CC1300C (2016) CC2200 (2018) CC2200 (2020) CC2300C (2018) CC3300 (2018) CC4000 VI (2018) CC4200C VI (2020) CC5200C (2018) CC6200 VI (2020) CC800 (2019) CC900 (2018) CC900S (2018) CG2300 (2018) CP142 (2015) CP275 (2014) Dynapac CA1500 (2017) Dynapac CA2500 (2012) Dynapac CA302D (2008) Dynapac CA302D (2010) Dynapac CA5000D (2017) Dynapac CC142 (2009) Dynapac CC2200C (2015) Dynapac CC224HF (2012) Dynapac CC322 (2008) Dynapac CC422 (2010) Dynapac CC5200 (2014) Dynapac CC5200 (2017) Dynapac CC5200 (2017) Dynapac CC5200 VI (2017) Dynapac CC800 (2013) Dynapac CC800 (2014) Dynapac F1200C/CS (2018) Dynapac F1200CS/CS (2018) Dynapac F1800C (2018) Dynapac F181C (2010) Dynapac PL2000LS (2010) Dynapac PL2000LS (2010) Dynapac PL2000S (2010) Dynapac PL2000S (2010) Dynapac SCC1300 (2014) Dynapac SD2500C (ч. 1) (2018) Dynapac SD2500C (ч. 2) (2018) Dynapac SD2550C (ч. 1) (2018) Dynapac SD2550C (ч. 2) (2018) F2500C (2018) SD2550CS (2015)

Схема > Не выбрано Service kits 4700950174 Service kit 50h, Cummins QSB 3.3 4700939076 Service kit 250 / 750 h 4700950175 Service kit 500h, Cummins QSB 3.3 4700950176 Service kit 1000h, Cummins QSB 3.3 Repair kits 4812155792 Eccentric shaft kit CC224HF/324HF/384HF 4812155791 Scraper kit CC224HF/234HF 4812155158 Shock absorber kit, drum CC224HF/324HF/384HF Front frame module 379861 4700391023 Steering cylinder 18811 Steering hitch lock 393520 Tank structure module 396738 Sprinkler tank structure mount 392880F 4700391307 Cover 391307 Hose support 394022B Hitch module 391615 Hitch link 390532 Grab handle module 394819A Rear frame AR0031 Rear frame 379863G Cover 394364 Engine structure, module 392800 Engine structure 390315F Engine cover, left 392647 Engine cover, right 392650 Oil cooler 392388 Radiator assembly 391885 Fan 391938A Fan assembly 391939 Noise suppression plates 392801A 4700396638 Noise suppression kit, covers 396638 Stabilizer module 397138A Sprinkler system 18645 (Only for CC224/324 with offset drum) Sprinkler pump module 396722 Sprinkler pump 391971D Sprinkler pump, backup 391617B Sprinkler pump, additonal sprinkler/cocoa mat 396663 Sprinkler pump mount 396664A Filling pipe module 391627 Filling pipe 392098A Locking device module 394928A Water hoses 3965411 End frame, front CC224100100010 End frame, front 393104 Frame assy 393102 Fork, vibration side 390112 Fork, propulsion side 390111 Cover plate 391642 Hose clamp, propulsion side 395424B Hose clamp, vibration side 395424B Step, vibration side 394352 Step 394353 Scraper module, without nozzles 392993 Scraper assy 395346A Scraper module, with nozzles 392994 Scraper assy with nozzles 395347 4700394340 Scraper bracket, cpl 394340 Grab handle, release 393551C Grab handle, release 397235A Grab handle, lift 393486C Eyelet module 392464 Cocoa mat module 397246A Cocoa mat assembly 397092B Cocoa mat bracket module 397120A Cocoa mat bracket 397119A End frame, rear CC224100100020 End frame, rear 393104 End frame, rear offset 393131A Frame 393288B Connection block 393269A Micro switch 395695 SMV-sign module 392289 SMV-sign Grab handle, lift offset 396052A Drum 18784 Drum bearing module 391279 Drum bearing 392465 Propulsion motor module 392455A Drive unit 392454 4700392453 Drum gear 392453_1 Vibration motor module 392380 Vibrating unit 392379 Engine room CC224100300010 Engine 392958B Engine module 392392E Air cooler hoses 391915 Water cooler hoses 395868B Air cleaner module 392677 Air cleaner hose module 391911 Muffler 393167 Exhaust pipe module 392080 Fuel hose module 392694 Charge air cooler 39238 Water cooler 392387 Radiator, cpl 391883 Expansion tank assembly 394156 Coolant hoses 395508 Hydraulic system, front drum 393719 Hydraulic system, rear drum std 393723 Hydraulic system, rear drum offset 19028 Hydraulic valve module, offset 391575 Hydraulic valve 391574 4700391017 Hydraulic valve 391017_1 Hydraulic system, frame Hydraulic system, engine room 393714_2 Hydraulic valve module 391564 Hydraulic valve 391563 4700391016 Hydraulic valve 18872 4700395924 Hydraulic valve 18872 Hydraulic pump module 392988 Hydraulic pump 392987C Hydraulic system, steering Std 393714_1 Hose bracket 391096B Hydraulic steering, sliding seat Std 18649 Steering, slideable 392708 Electric cables, power supply 393753_1 Battery disconnector 391634A Battery disconnector 391635A Electric cables, power supply cab 392792 Electric cables, engine - ECU 393753_2 Standard ECU module 391632 Standard ECU assembly 391633 Electric cables, sensors/ horn/ back-up alarm 18992 Horn module 396836 Horn 396837 Back-up alarm module 396834 Back-up alarm 396835 Tachograph 18687 Tachograph holder module 393812 Cable harness kit 394930 Power supply module 394698 Driving & side direction lights 18646 Accessories ECU module 391643 Driving lights, front RH 391644 Driving lights, front LH 391645 Turn signals 392278 Driving lights, rear 391652 Steering column switch module 392449 Cable harness and switch module 392279 Registration plate light module 392375 Registration plate light 392376 Rotating beacon, working light 18647 Rotating beacon module 392356 Rotating beacon module 392356C Rotating beacon mount 397515 Working light module H3 392036 Working light module Xenon 393539 Platform, no cab AR0070 Platform with 4-post ROPS 391064 Rear covers 395848 Platform no ROPS 393042 Hand rail, left 391569 Hand rail 392999 Hand rail, right 391568 Hand rail 391557 Hand rail 392426 Lunch box module 394307 Canopy option 18868 Canopy assy 397081 Bracket 397082 Cab, asymmetric 391068 4700390865 Cab, cpl 390865 Cab frame, right side 395736 General parts 395738 Windshield wiper, front 395739 Windshield wiper, rear 395740 Windshield washer reservoir 395741 Electric equipment 395742 Door frame 395744 4700395806 Door 395806 Air channel 395752 Heater unit 395754 Heater 393617 Heater controls 393617_2 Manual box 394119 Cab heater system 18848 Heater hoses 394138A_B Cab noise cover 393148 Radio and cd player 18686 Radio and cd player module 394098 Rear view mirror module 392330 Drivers seat AR0075 Seat frame structure 391062 Seat frame 379731 Steering column 18412 Seat, galon suspensioned 391081 Seat, fabric suspensioned 391090A Controls, slidable and turning 391065 Cross sliding 392707 Carrier 379727C Drive control, cpl 391102 Drive control 391100D Control panel cover 391085 Display unit 391103 Display 391101 Decals 18638 Air conditioning 18856 Compressor module 395733B Compressor complete 393343A Condensor module 393528 Condensor 393529 Evaporator module 393583B 4700393584 Evaporator unit 393584 Hose kit AC 394017 Hose kit AC 394018 Hose kit Compressor 394019 Hose kit AC 394020 ACC module 393631 ACC controls 393795 Belt guard module 396000 Fire extinguisher/First Aid Cushion 19014 Fire extinguisher assembly 393861B

1

2

3

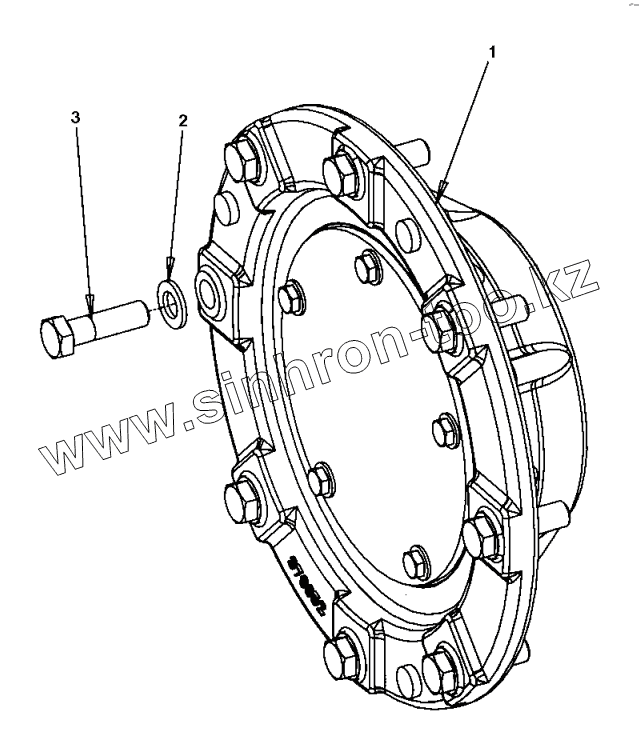

Позиция на иллюстрации	Заводской номер детали		Название детали
1	392465		Drum bearing
2	4700904232		Steel plain washer
3	4700500070		Hex. screw

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
