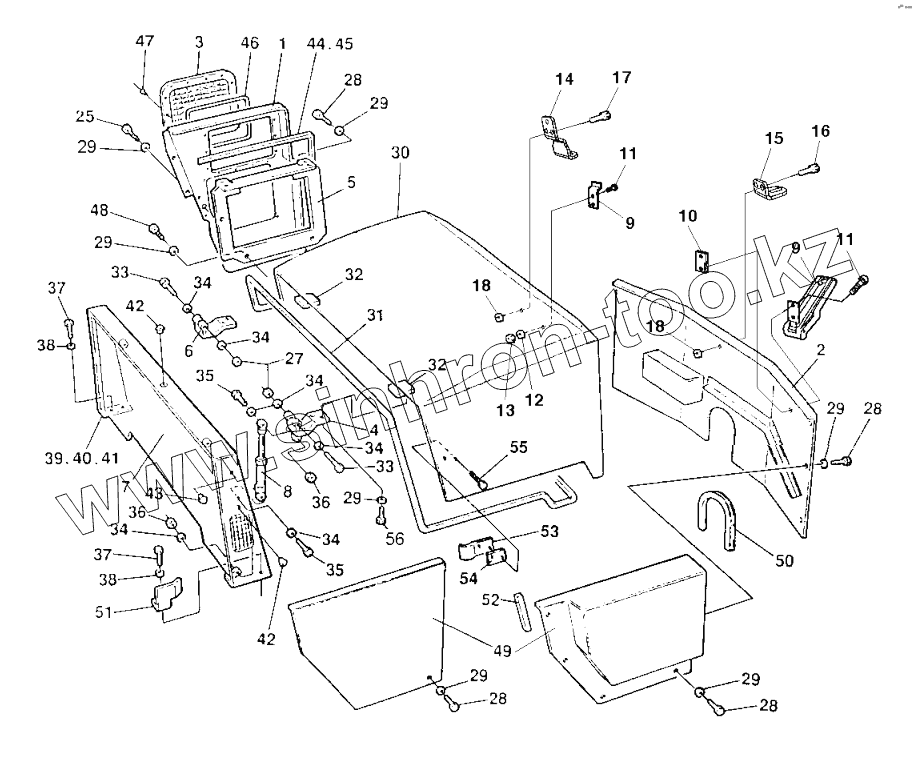

Каталог запасных частей к технике: DYNAPAC Dynapac CC142. Structure From 602X3055 DEUTZ, F3L
1
2
3
3
4
5
6
7
8
9
9
10
11
11
12
13
14
15
16
17
18
18
25
27
28
28
28
28
29
29
29
29
29
29
29
30
31
32
32
33
33
34
34
34
34
34
34
35
35
36
36
37
37
38
38
39
40
41
42
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4700391121 | 4700391121 | Cover, cpl | |
| 4700792210 | 4700792210 | Screw torx | |
| 4700391120 | 4700391120 | Insulating material | |
| 4700373476 | 4700373476 | Insulating washer | |
| 4700391119 | 4700391119 | Noise reducing plate | |
| 4700904206 | 4700904206 | Screw | |
| 1 | 4700374657 | Cover | |
| 2 | 4700382565 | Cover | |
| 3 | 4700374627 | Grid | |
| 3 | 4700391118 | Grid | |
| 4 | 4700357276 | Hinge | |
| 5 | 4700374625 | Cooler frame | |
| 6 | 4700357280 | Hinge | |
| 7 | 4700357248 | Hood frame | |
| 8 | 4700902256 | Gas spring | |
| 9 | 4700388846 | Latch | |
| 10 | 4700387956 | Stop plate | |
| 11 | 4700508022 | Hexagon socket head cap screw | |
| 12 | 4700904698 | Steel plain washer | |
| 13 | 4700923976 | Lock nut | |
| 14 | 4700377061 | Lock plate | |
| 15 | 4700388852 | Lock plate | |
| 16 | 4700791754 | Blind rivet | |
| 17 | 4700792180 | Blind rivet | |
| 18 | 4700904228 | Steel plain washer | |
| 25 | 4700500021 | Hex. screw | |
| 27 | 4700586003 | Hexagon lock nut | |
| 28 | 4700500053 | Hex. screw | |
| 29 | 4700904640 | Washer | |
| 30 | 4700377951 | Engine hood | |
| 31 | 4700902166 | Edge trim | |
| 32 | 4700357863 | Shim | |
| 33 | 4700500249 | Screw | |
| 34 | 4700904229 | Washer | |
| 35 | 4700508027 | Screw | |
| 36 | 4700570005 | Hex. nut | |
| 37 | 4700500029 | Hex. screw | |
| 38 | 4700904557 | Washer | |
| 39 | 4700371994 | Shim | |
| 40 | 4700904090 | Washer | |
| 41 | 4700904091 | Washer | |
| 42 | 4700900519 | Plug | |
| 43 | 4700902804 | Plug | |
| 44 | 4700202043 | Rubber strip | |
| 45 | 4700202046 | Rubber strip | |
| 46 | 4700904076 | Edge trim | |
| 47 | 4700624018 | Blind rivet | |
| 48 | 4700500047 | Hexagon head screw | |
| 49 | 4700357274 | Cover | |
| 50 | 4700202028 | Edge trim | |
| 51 | Notused | Not used on this model | |
| 52 | 4700902166 | Edge trim | |
| 53 | 4700375594 | Holder | |
| 54 | 4700375595 | Spacer | |
| 55 | 4700904206 | Screw | |
| 56 | 4700500020 | Hex. screw |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
