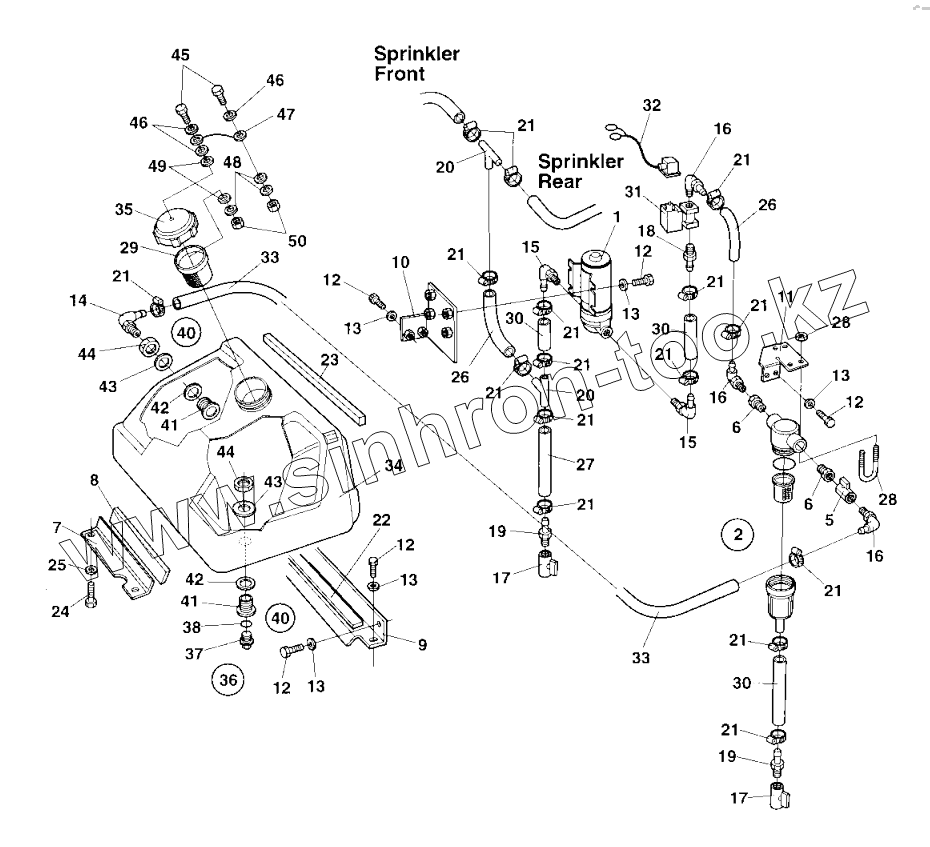

Каталог запасных частей к технике: DYNAPAC Dynapac CC142. Sprinkler system Up to 602X3202 Front tank

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
5
6
6
7
8
9
10
11
12
12
12
12
12
13
13
13
13
13
14
15
15
16
16
16
17
17
18
19
19
20
20
21
21
21
21
21
21
21
21
21
21
21
21
21
21
21
22
23
24
25
26
26
27
28
28
29
30
30
30
31
32
33
33
34
35
36
37
38
40
40
40
41
41
42
42
43
43
44
44
45
46
46
47
48
49
50
Позиция на иллюстрации Заводской номер детали Название детали
1 4700904808 Water pump
2 4700904877 Strainer, cpl
3 4700938307 O-ring
4 4700938306 Strainer
5 4700924986 Valve
6 4700903886 Adapter
7 4700357395 Holder plate
8 4700926911 Rubber strip
9 4700357142 Holder plate
10 4700382181 Holder plate
11 4700382180 Holder plate
12 4700500021 Hex. screw
13 4700904229 Washer
14 4700901431 Hose connection
15 4700923734 Hose connection
16 4700924996 Hose connection
17 4700925599 Ball valve
18 4700901432 Hose connection
19 4700924544 Hose connection
20 4700923735 Hose connection
21 4700313002 Hose clamp
22 4700903478 Absorbent
23 4700202042 Rubber strip
24 4700500028 Screw
25 4700904230 Washer
26 4700904878 Hose reinforced
27 4700904878 Hose reinforced
28 4700927568 Clamp
29 4700358846 Strainer
30 4700904878 Hose reinforced
31 4700287713 Solenoid valve
32 4700358809 Cable harness
33 4700904878 Hose reinforced
34 4700373798 Sprinkling tank
35 4700359003 Tank Cap
36 4700937053 Plug, cpl
37 Plug Plug connector see engine Gr. 9
38 Gasket Gasket
40 4700902916 Adapter kit
40 4700937118 Adapter kit
41 Pipefitting Pipe fitting
42 Sealing Sealing
43 Washer Washer
44 Nut Nut
45 4700500040 Screw
46 4700904228 Steel plain washer
47 4700357643 Wire
48 4700615042 Conical spring washer
49 4700615076 Washer
50 4700586002 Lock nut
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
