Каталог запасных частей к технике: DYNAPAC Dynapac CC142. Interlock Loxam From 602X3084 Up to 602x3579

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано CA1400 (2016) CA2500D (2016) CA2500D (2018) CA2500D-PD (2018) CA250D (2011) CA252D (2008) CA2800D (2017) CA3500D (2016) CA4000D (2017) CA4000D (2020) CA4600D (2019) CA5500D (2015) CA610PD (2014) CA6500 (2018) CC1000 (2019) CC1100CC (2015) CC1200C Plus (2015) CC1200C VI (2018) CC1200CC (2018) CC125 (2015) CC1250 (2015) CC1300 (2018) CC1300C (2015) CC1300C (2016) CC2200 (2018) CC2200 (2020) CC2300C (2018) CC3300 (2018) CC4000 VI (2018) CC4200C VI (2020) CC5200C (2018) CC6200 VI (2020) CC800 (2019) CC900 (2018) CC900S (2018) CG2300 (2018) CP142 (2015) CP275 (2014) Dynapac CA1500 (2017) Dynapac CA2500 (2012) Dynapac CA302D (2008) Dynapac CA302D (2010) Dynapac CA5000D (2017) Dynapac CC142 (2009) Dynapac CC2200C (2015) Dynapac CC224HF (2012) Dynapac CC322 (2008) Dynapac CC422 (2010) Dynapac CC5200 (2014) Dynapac CC5200 (2017) Dynapac CC5200 (2017) Dynapac CC5200 VI (2017) Dynapac CC800 (2013) Dynapac CC800 (2014) Dynapac F1200C/CS (2018) Dynapac F1200CS/CS (2018) Dynapac F1800C (2018) Dynapac F181C (2010) Dynapac PL2000LS (2010) Dynapac PL2000LS (2010) Dynapac PL2000S (2010) Dynapac PL2000S (2010) Dynapac SCC1300 (2014) Dynapac SD2500C (ч. 1) (2018) Dynapac SD2500C (ч. 2) (2018) Dynapac SD2550C (ч. 1) (2018) Dynapac SD2550C (ч. 2) (2018) F2500C (2018) SD2550CS (2015)

Схема > Не выбрано СС142 SN 60212800- Service kits 4700938542 Service kit, Deutz 50 h 4700938543 Service kit, Deutz 500 h 4700940211 Service kit, Deutz F3L 2011 1000 h Repair kits 4700938909 Eccentric shaft kit 4700938893 Drum rotation kit 4700938915 Scraper kit CC142 - (12 mm) 4700938887 Shock absorber kit, drum 4700938575 Steering hitch kit 4700940662 F/R control button kit Frames Up to 602X3237 Frames From 602X3238 Up to 60214139 Frames From 60214140 Scrapers, standard drums Up to 602X2850 Scrapers, STD From 602X2851 Up to 602X3057 Scrapers, STD From 602X3058 Scrapers, spring loaded, front drum Up to 602X2850 Scrapers, spring loaded, rear drum Up to 602X2850 Scrapers, spring loaded From 602X2851 Steering hitch Structure Up to 602X3054 DEUTZ, F3L Structure From 602X3055 DEUTZ, F3L Structure DEUTZ Sprinkler system Up to 602X3202 Front tank Sprinkler system From 602X3203 Front tank Sprinkler, front/rear Up to 602X2850 Sprinkler front/rear From 602X2851 Drum Engine Up to 602X3529 DEUTZ F3L 2011 Engine From 602X3530 DEUTZ D2011 L03 I Intake system DEUTZ Fuel system DEUTZ Fuel system DEUTZ Exhaust system Up to 602X3392 DEUTZ Exhaust system From 602X3393 DEUTZ Hydraulic diagram Propulsion system 4812110281 Junction block 4700372352 Hydraulic pump, propulsion Rotating group, valves, charge pump Control unit, cpl 4700357022 Hydraulic motor, propulsion, drum 4700380736 Junction block Vibration system Up to 60214244 DEUTZ Vibration system From 60214245 DEUTZ 4700359524 Hydraulic pump, vibration DEUTZ Steering system Up to 602X2957 Steering system From 602X2958 Up to 602X3318 Steering system From 602X3319 4700902099 Steering valve 4700374603 Steering cylinder Brake system Electrical equipment Up to 602X2806 Electrical equipment From 602X2807 Control panel Up to 60214251 Control panel From 60214252 Electric battery switch Interlock Interlock Loxam From 602X3084 Up to 602x3579 Interlock Loxam From 602x3580 Sprinkler timer Driving & side direction lights Up to 602X2821 Driving & side direction lights From 602X2822 Working lights Licence plate light, parking lights Rotating beacon Up to 60212800 Rotating beacon From 60212801 Drivers platform Up to 602X3331 Drivers platform From 602X3332 Seat Control panel Arm rests, seat belt, laterally adjusting Up to 602X3331 Arm rests, seat belt, laterally adjusting From 602X3332 Comfort drivers seat, laterally adjusting Up to and seat beltage Comfort drivers seat, laterally adjusting From 6and seat beltage Engine and forward/reverse controls F/r controls dual, control panel mounted F/r control dual left side, platform mounted Rops and fops Plates and decals, ce-marking approved Standard equipment Cab, exterior Up to 602X3164 Cab, interior Up to 602X3164 Cab, heater Up to 602X3164 Canopy SMV-sign SMV-sign placed on platform Up to 60212800 SMV-sign placed on platform From 60212801 Tool equipment Noise suppression DEUTZ, 78 dB Up to 602X3054 Noise suppression DEUTZ, 78 dB From 602X3055 Noise suppression DEUTZ, 73 dB Up to 602X3054 Noise suppression DEUTZ, 73 dB From 602X3055 Back-up alarm Up to 60214229 Back-up alarm From 60214230 Rear mirror Brake release, propulsion motor 357022 Cassette receiver Towing valve Flow divider Vibration shut-off, front drum DEUTZ Vibration shut-off, rear drum DEUT Automatic vibration control Service brake Driving, restriction

1

2

3

5

6

8

9

10

11

12

13

14

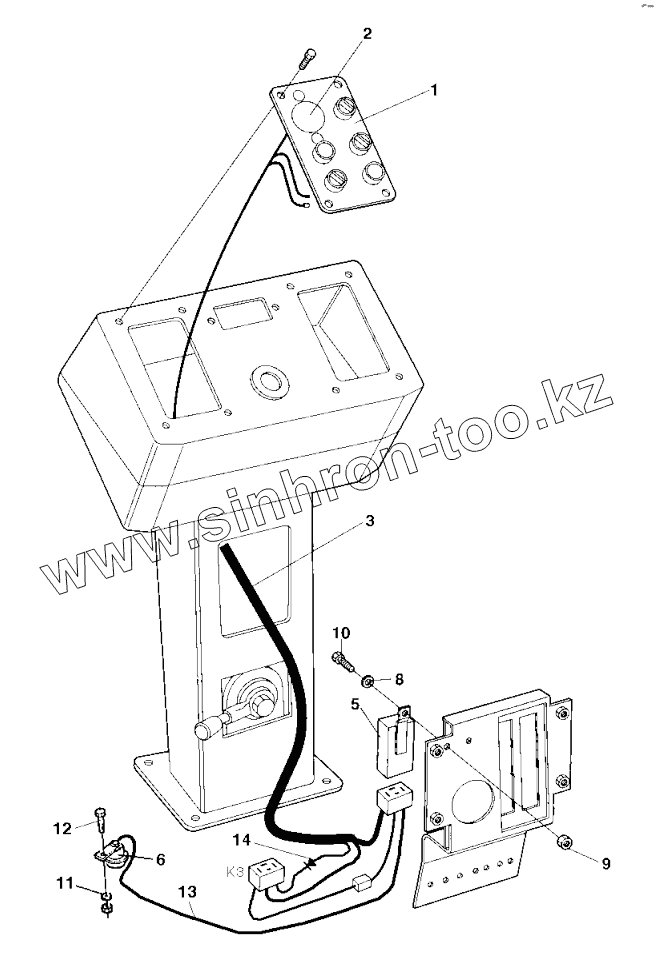

Позиция на иллюстрации	Заводской номер детали		Название детали
1	Plate		Plate
2	Emergencystop		Emergency stop
3	4700381994		Cable harness
5	4700904846		Delay relay
6	4700999027		Horn
7	4700533070		Screw
8	4700904281		Washer
9	4700586001		Lock nut
10	4700533025		Screw
11	4700904734		Washer
12	4700500022		Hex. screw
13	4700377697		Cable harness
14	4700903593		Diode

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
