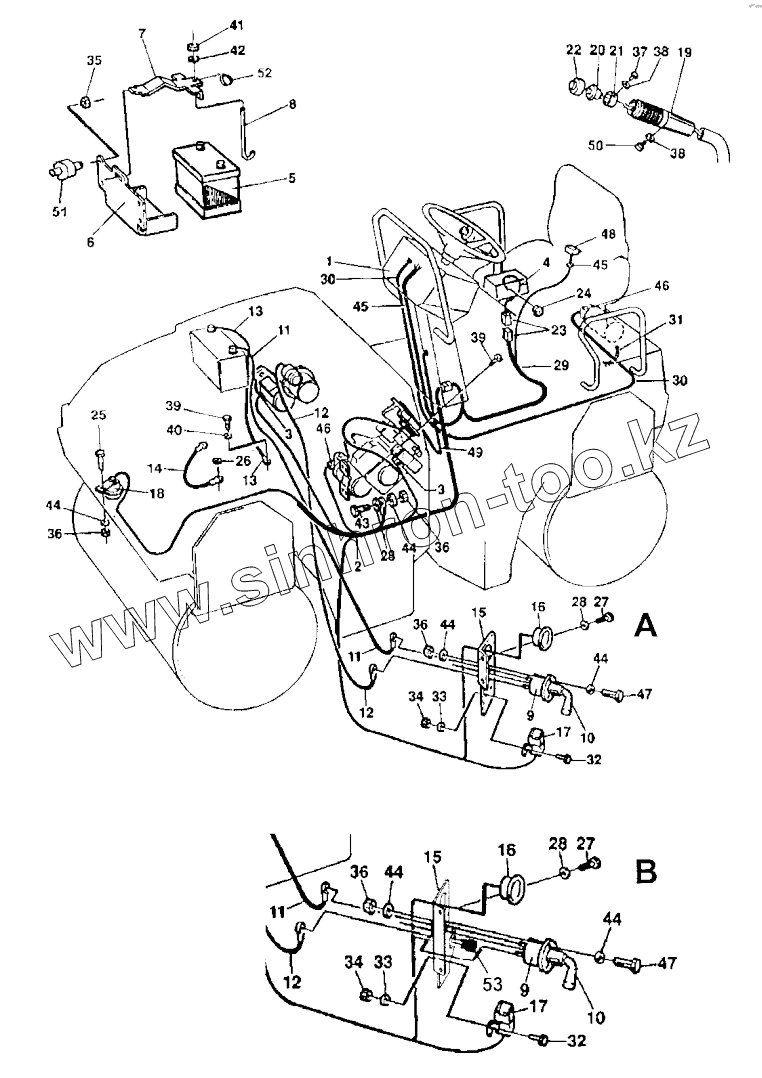

Каталог запасных частей к технике: DYNAPAC Dynapac CC142. Electrical equipment From 602X2807

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
1
1
2
2
2
2
2
2
3
3
4
5
5
5
6
6
6
6
6
6
6
6
6
6
6
6
7
7
8
9
9
10
10
11
11
11
12
12
12
13
13
13
13
13
13
13
13
13
13
13
13
13
14
15
15
15
15
15
16
16
17
17
18
19
20
21
22
23
24
25
26
27
27
28
28
28
29
30
30
31
32
32
33
33
34
34
35
36
36
36
36
37
38
38
39
39
40
41
42
43
44
44
44
44
44
44
45
45
46
46
47
47
48
49
50
51
52
53
53
Позиция на иллюстрации Заводской номер детали Название детали
1 Controlpanel Control panel
1 Controlpanel Control panel
1 Controlpanel Control panel
1 Controlpanel Control panel
2 4700383961 Cable harness
2 4700396974 Cable harness
2 4812110657 Cable harness
2 4812110855 Cable harness
2 4812110657 Cable harness
2 4812110855 Cable harness
3 4700960796 Connector
4 4700357583 Cable harness
5 4700902550 Battery
5 Battery Battery module
5 Battery Battery module
6 4700396108 Battery shelf
6 4700396108 Battery shelf
6 4700377051 Battery shelf
6 4700396108 Battery shelf
6 4700377051 Battery shelf
6 4700396108 Battery shelf
6 4700377051 Battery shelf
6 4700377051 Battery shelf
6 4700396108 Battery shelf
6 4700377051 Battery shelf
6 4700396108 Battery shelf
6 4700377051 Battery shelf
7 4700357684 Battery holder
7 4700378370 Battery holder
8 4700903372 Battery screw
9 4700357567 Battery switch, cpl
10 4700902560 Handle
11 4700378743 Battery cable
12 4700904963 Connection wire
13 4700902384 Battery cable
13 4700904277 Ground cable
13 4700902384 Battery cable
13 4700904277 Ground cable
13 4700902384 Battery cable
13 4700904277 Ground cable
13 4700902384 Battery cable
13 4700904277 Ground cable
13 4700904277 Ground cable
13 4700904277 Ground cable
13 4700904277 Ground cable
13 4700902384 Battery cable
14 4700345728 Ground cable
15 4700357584 Holder plate
15 4812110856 Bracket
15 4700357584 Holder plate
15 4812110856 Bracket
16 4700801567 Hour meter
17 4700287597 Relay
18 4700999027 Horn
19 4700285909 Grab handle
20 4700928497 Push button
21 4700285911 Bushing
22 4700348481 Cover
23 4700925958 Connection
24 4700902203 Plug
25 4700500020 Hex. screw
26 4700904557 Washer
27 4700500019 Hex. screw
28 4700904229 Washer
29 Cableharness Cable harness
30 Notused Not used on this model
31 Notused Not used on this model
32 4700508020 Screw
33 4700904281 Washer
34 4700586001 Lock nut
35 4700791182 Nut
36 4700586003 Hexagon lock nut
37 4700533001 Screw
38 4700904697 Washer
39 4700500053 Hex. screw
40 4700904640 Washer
41 4700586003 Hexagon lock nut
42 4700904229 Washer
43 4700500047 Hexagon head screw
44 4700904229 Washer
45 4700909107 Grommet
46 4700901766 Connector
47 4700500021 Hex. screw
48 Seatswitch Seat switch
49 4700385580 Cable harness
50 4700901767 Screw
51 4700376796 Shock absorber
52 4700921104 Clamp
53 4812110560 Power socket
53 4812110560 Power socket
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
