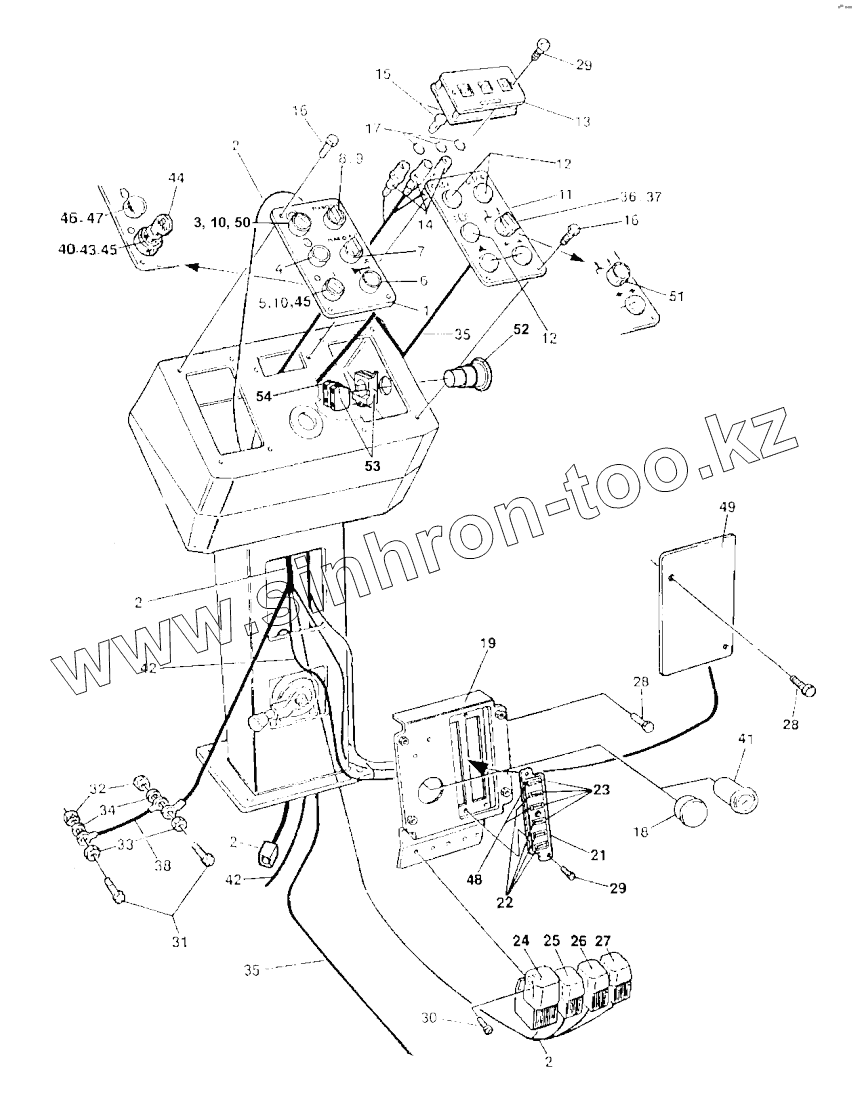

Каталог запасных частей к технике: DYNAPAC Dynapac CC142. Control panel Up to 60214251
1
2
2
2
2
3
4
5
5
5
6
7
8
9
10
10
11
12
12
13
14
15
16
16
17
18
19
21
21
22
23
24
25
26
27
28
28
29
29
30
31
32
33
34
35
35
36
37
38
40
41
41
41
42
42
43
44
45
45
46
47
48
49
50
51
52
53
54
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4812110723 | Control panel | |
| 2 | 4812110717 | Cable harness | |
| 3 | 4700791722 | Switch, black | |
| 4 | 4700928928 | Push button | |
| 5 | 4700930151 | Switch | |
| 5 | 4700930153 | Switch | |
| 5 | 4700385644 | Decal | |
| 6 | 4700932032 | Push button | |
| 7 | 4700930153 | Switch | |
| 8 | 4700932058 | Switch | |
| 9 | 4700930155 | Connector | |
| 10 | 4700930163 | Contact piece, NO | |
| 11 | 4700357574 | Control panel plate | |
| 12 | 4700911456 | Hole plug | |
| 13 | 4700357585 | Display panel | |
| 14 | 4700902225 | Lamp socket | |
| 15 | 4700985125 | Bulb | |
| 16 | 4700902224 | Screw | |
| 17 | 4700160269 | O-ring | |
| 18 | 4700345870 | Plug | |
| 19 | 4700371326 | Distribution control plate | |
| 21 | 4700903820 | Fuse box | |
| 21 | 4700909527 | Cover | |
| 22 | 4700901226 | Fuse | |
| 23 | 4700901240 | Connector | |
| 24 | 4700382782 | Relay, VBS | |
| 25 | 4700287597 | Relay | |
| 26 | 4700287597 | Relay | |
| 27 | 4700287597 | Relay | |
| 28 | 4700541702 | Screw | |
| 29 | 4700901767 | Screw | |
| 30 | 4700902223 | Screw | |
| 31 | 4700500075 | Screw, | |
| 32 | 4700586002 | Lock nut | |
| 33 | 4700570004 | Hex. nut | |
| 34 | 4700904228 | Steel plain washer | |
| 35 | Notused | Not used on this model | |
| 36 | Notused | Not used on this model | |
| 37 | Notused | Not used on this model | |
| 38 | 4700903063 | Ground cable | |
| 40 | 4700930182 | Contact block | |
| 41 | 4700985012 | Bulb | |
| 41 | 4700355258 | Lamp holder | |
| 41 | 4700355468 | Fuel gauge | |
| 42 | 4700358418 | Cable harness | |
| 43 | 4700903239 | Switch | |
| 44 | 4700902866 | Key Marked 455 | |
| 45 | 4700930154 | Contact piece, NC | |
| 46 | 4700932059 | Pilot lamp cpl | |
| 47 | 4700985012 | Bulb | |
| 48 | 4700901227 | Fuse | |
| 49 | 4700371344 | Cover | |
| 50 | 4700930154 | Contact piece, NC | |
| 51 | Notused | Not used on this model | |
| 52 | 4700791739 | Emergency stop | |
| 53 | 4700389840 | Connector wFixing collar | |
| 54 | 4700791723 | Connector N/C |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
