1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

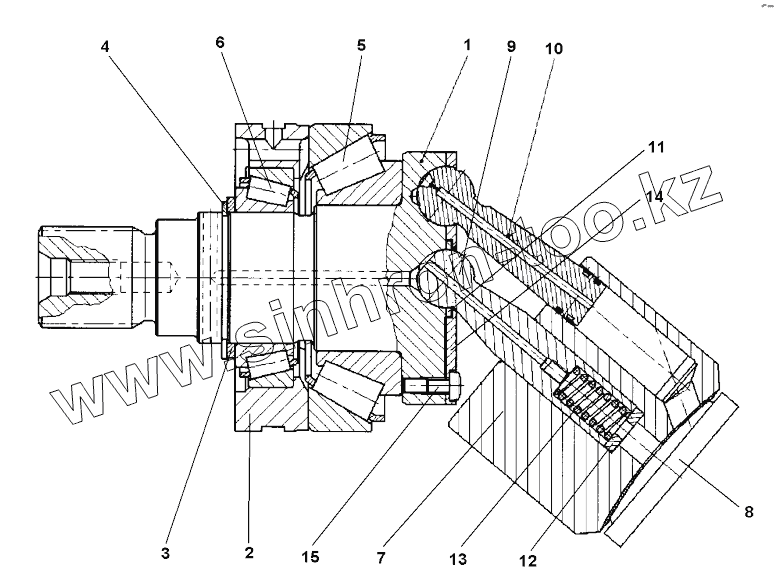

Позиция на иллюстрации
Заводской номер детали
Название детали
1
Driveshaft
Drive shaft
2
4700950631
Bearing ring
3
Supportingdisc
Supporting disc
4
Circlip
Circlip
5
4700950632
Bearing
6
4812157182
Bearing
7
Cylinder
Cylinder
8
Controlpanel
Control panel
9
Centerpin
Center pin
10
Pistonwithpistonrings
Piston with piston rings
11
Washer
Washer
12
Shim
Shim
13
Pressurespring
Pressure spring
14
Retainingplate
Retaining plate
15
Slottedscrew
Slotted screw
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
