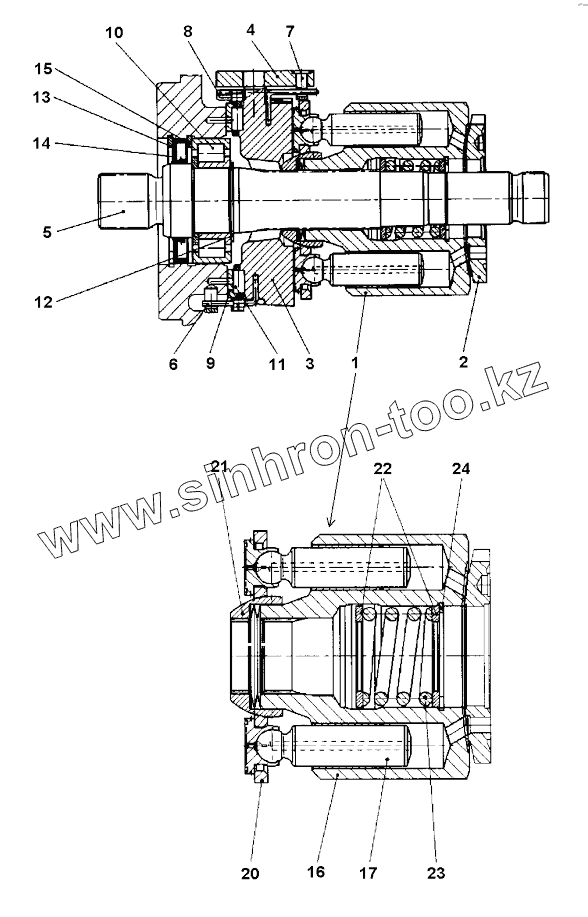

Позиция на иллюстрации
Заводской номер детали
Название детали
1
Enginehydraulicpart
Engine hydraulic part
2
Controlpanel
Control panel
3
Cradle
Cradle
4
Slidingring
Sliding ring
5
Driveshaft
Drive shaft
6
Wire
Wire
7
Hingepin
Hinge pin
8
Wire
Wire
9
4812157193
Bearing pair
10
4812157194
Cylindrical roller bearings
11
4812157195
Cage pair
12
Circlip
Circlip
13
Circlip
Circlip
14
Shaftsealingring
Shaft sealing ring
15
Circlip
Circlip
16
Cylinderwithbushing
Cylinder with bushing
17
Pistonslipperpad
Piston slipper pad
20
4812157196
Retaining plate
21
4812157197
Retaining ball
22
Washer
Washer
23
Pressurespring
Pressure spring
24
Circlip
Circlip
