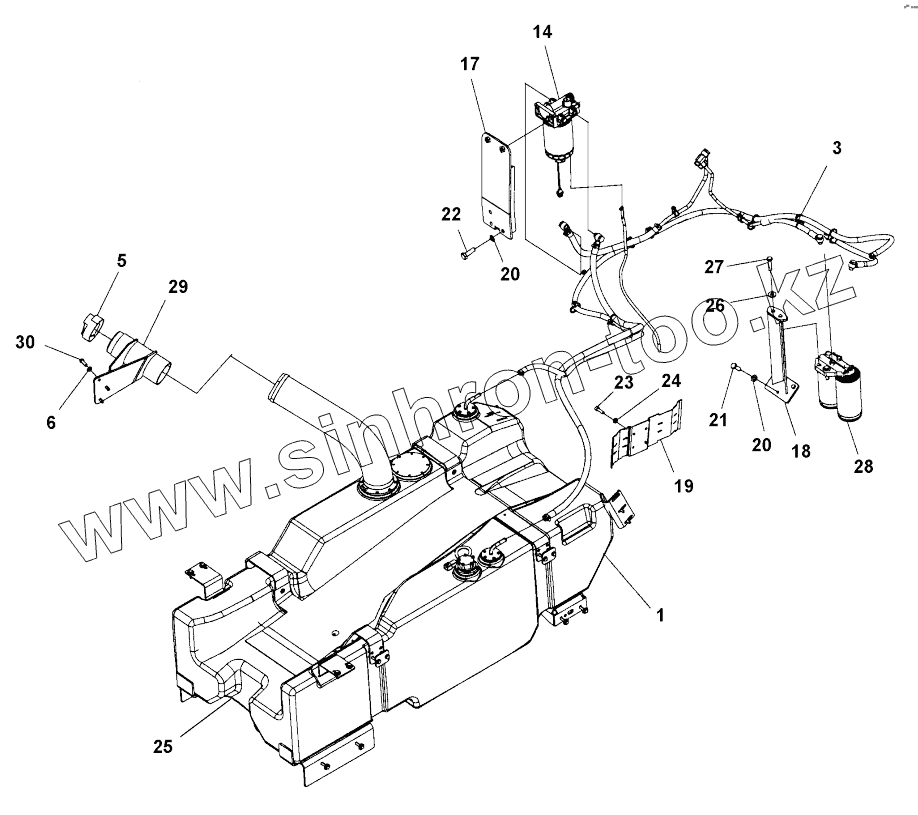

1
3
5
6
14
14
14
17
18
19
20
20
21
22
23
24
25
26
27
28
29
30
Позиция на иллюстрации
Заводской номер детали
Название детали
1
Fueltank
Fuel tank
3
Hoses
Hoses
5
4700380436
Fuel cap
6
4700904556
Steel plain washer
14
4812156451
Pre-fuel filter, cpl
14
4812031626
Pre-fuel filter, filter element
14
4812002714
Pre-fuel filter, sensor
17
4812117040
Bracket
18
4812118102
Bracket
19
4812114212
Bracket
20
4700904229
Washer
21
4700500021
Hex. screw
22
4700500029
Hex. screw
23
4700508025
Bolt
24
4700603010
Washer
25
Draining
Draining module
26
4700904213
Washer
27
4700500194
Hex. screw
28
Fuelfilter
Fuel filter
29
4812120376
Bracket
30
4700500021
Hex. screw
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
