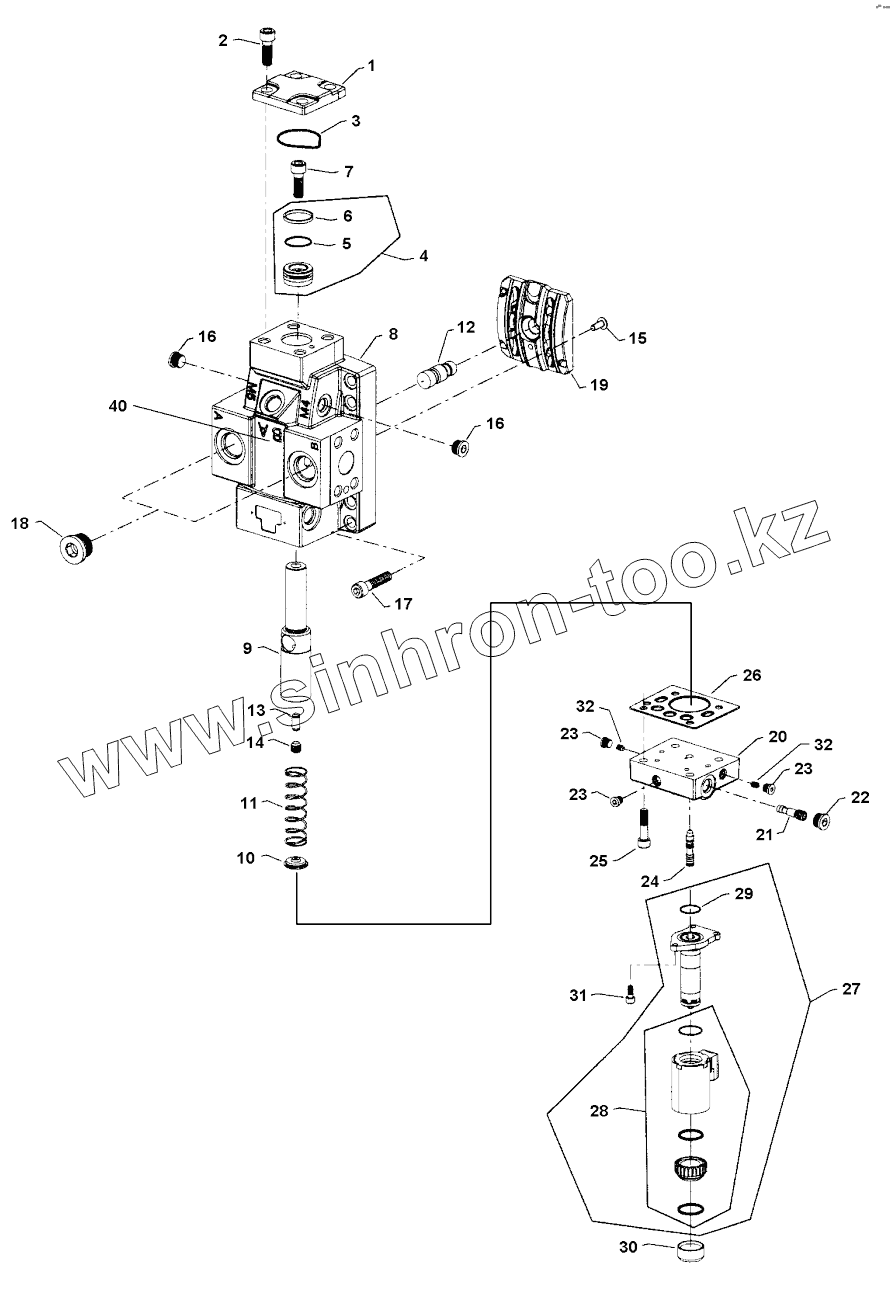

Каталог запасных частей к технике: DYNAPAC Dynapac CA5000D. Front section

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
18
19
20
21
22
23
23
23
24
25
26
27
28
29
30
31
32
32
40
Позиция на иллюстрации Заводской номер детали Название детали
1 Servopistoncover Servo piston cover
2 Screw Screw
3 4812157065 O-ring
4 Servopiston Servo piston
5 4812157083 O-ring
6 4812157084 Piston ring
7 Screw Screw
8 Endcap End cap
9 Servopiston Servo piston
10 Springguide Spring guide
11 Spring Spring
12 Settinglug Setting lug
13 4812157068 Setting lug pin
14 Setscrew Set screw
15 Buttonheadscrew Button head screw
16 Plug Plug connector see engine Gr. 9
17 Screw Screw
18 Plug Plug connector see engine Gr. 9
19 4812157081 Valve segment assembly
20 Controlhousing Control housing
21 4812156999 Shuttle valve assembly
22 Plug Plug connector see engine Gr. 9
23 Plug Plug connector see engine Gr. 9
24 4812157070 Spool
25 Screw Screw
26 4812157080 Control seal
27 4812157071 Solenoid proportional valve
28 4812157072 Coil kit
29 4812157371 O-ring
30 Plasticcap Plastic cap
31 Screw Screw
32 Orificeplug, Orifice plug,
40 Loopflushing Loop flushing
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
