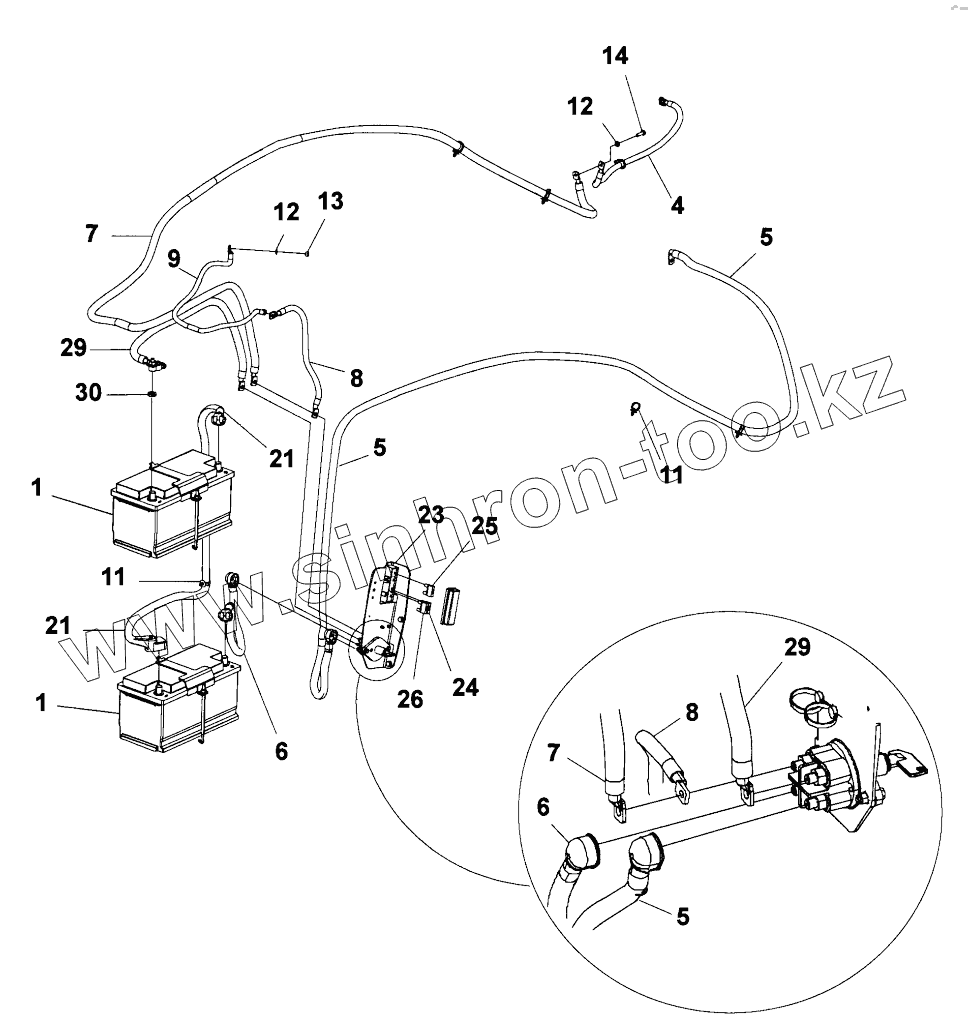

Позиция на иллюстрации
Заводской номер детали
Название детали
1
Battery
Battery module
4
4811000172
Connection cable, coarse
5
4812118464
Connection cable, coarse
6
4811000176
Battery cable
7
4812116361
Connection cable
8
4812118385
Connection cable, coarse
9
4700791518
Connection cable, coarse
11
4700792441
Cable tie with holder
12
4700904229
Washer
13
4700570005
Hex. nut
14
4700500021
Hex. screw
21
4812118467
Battery union cable
23
Batterydisconnector
Battery disconnector module
24
4700904037
Fuse
25
4700904039
Fuse
26
4700904038
Fuse
29
4812116362
Battery cable
30
4812118154
Spacer
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
