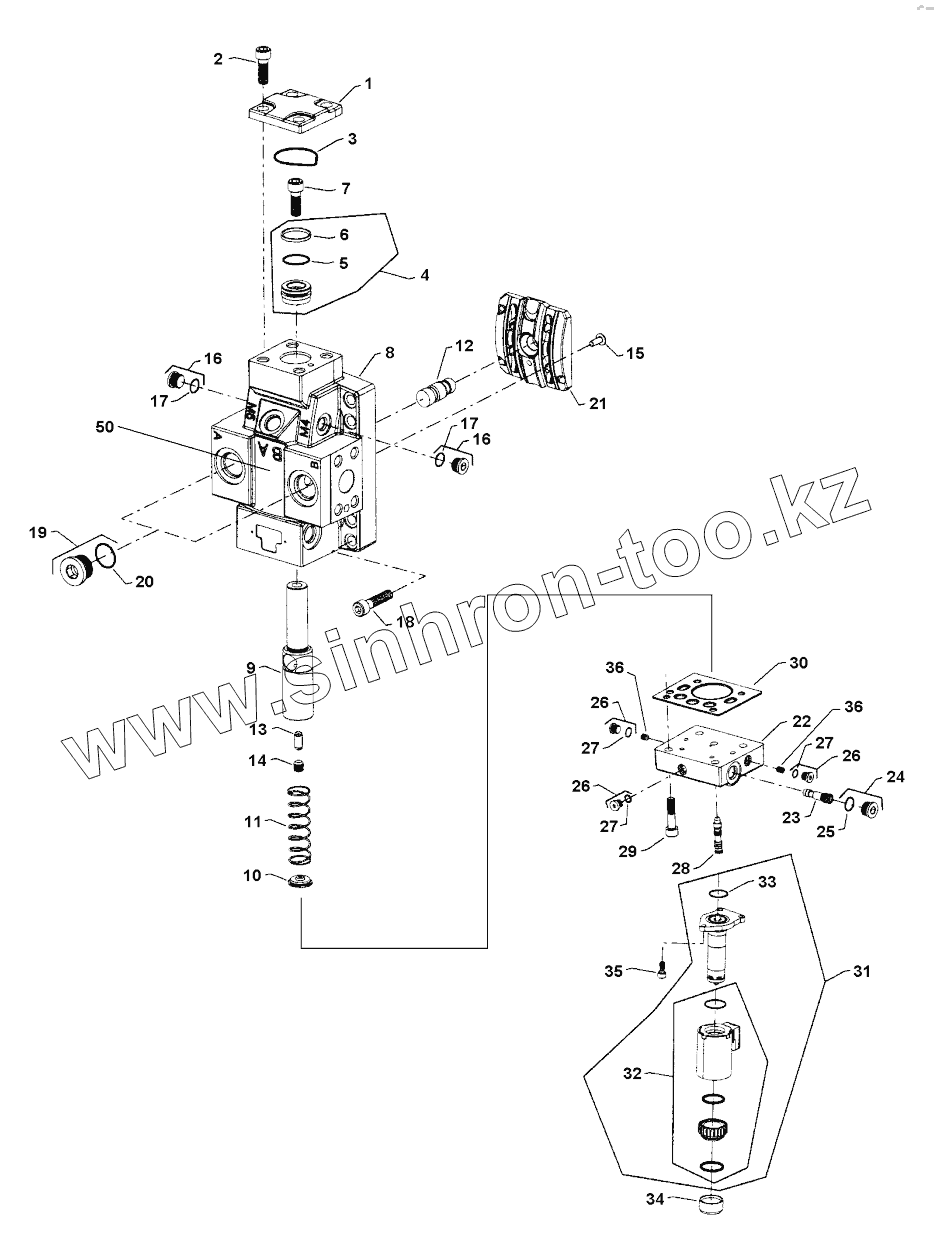

Каталог запасных частей к технике: DYNAPAC Dynapac CA5000D. Drum motor. Front section

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
17
18
19
20
21
22
23
24
25
26
26
26
27
27
27
28
29
30
31
32
33
34
35
36
36
50
Позиция на иллюстрации Заводской номер детали Название детали
1 Servopistoncover Servo piston cover
2 Screw Screw
3 4812157065 O-ring
4 Servopiston Servo piston
5 4812157066 O-ring
6 4812157067 Piston ring
7 Screw Screw
8 Endcap End cap
9 Servopiston Servo piston
10 Springguide Spring guide
11 Spring Spring
12 Settinglug Setting lug
13 4812157068 Setting lug pin
14 Setscrew Set screw
15 Buttonheadscrew Button head screw
16 Plug Plug connector see engine Gr. 9
17 O-ring O-ring
18 Screw Screw
19 Plug Plug connector see engine Gr. 9
20 O-ring O-ring
21 4812157069 Valve segment assembly
22 Controlhousing Control housing
23 4812156999 Shuttle valve assembly
24 Plug Plug connector see engine Gr. 9
25 O-ring O-ring
26 Plug Plug connector see engine Gr. 9
27 O-ring O-ring
28 4812157070 Spool
29 Screw Screw
30 Controlseal Control seal
31 4812157071 Solenoid proportional valve
32 4812157072 Coil kit
33 4812157371 O-ring
34 Plasticcap Plastic cap
35 Screw Screw
36 Orificeplug Orifice plug
50 Loopflushing Loop flushing
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
