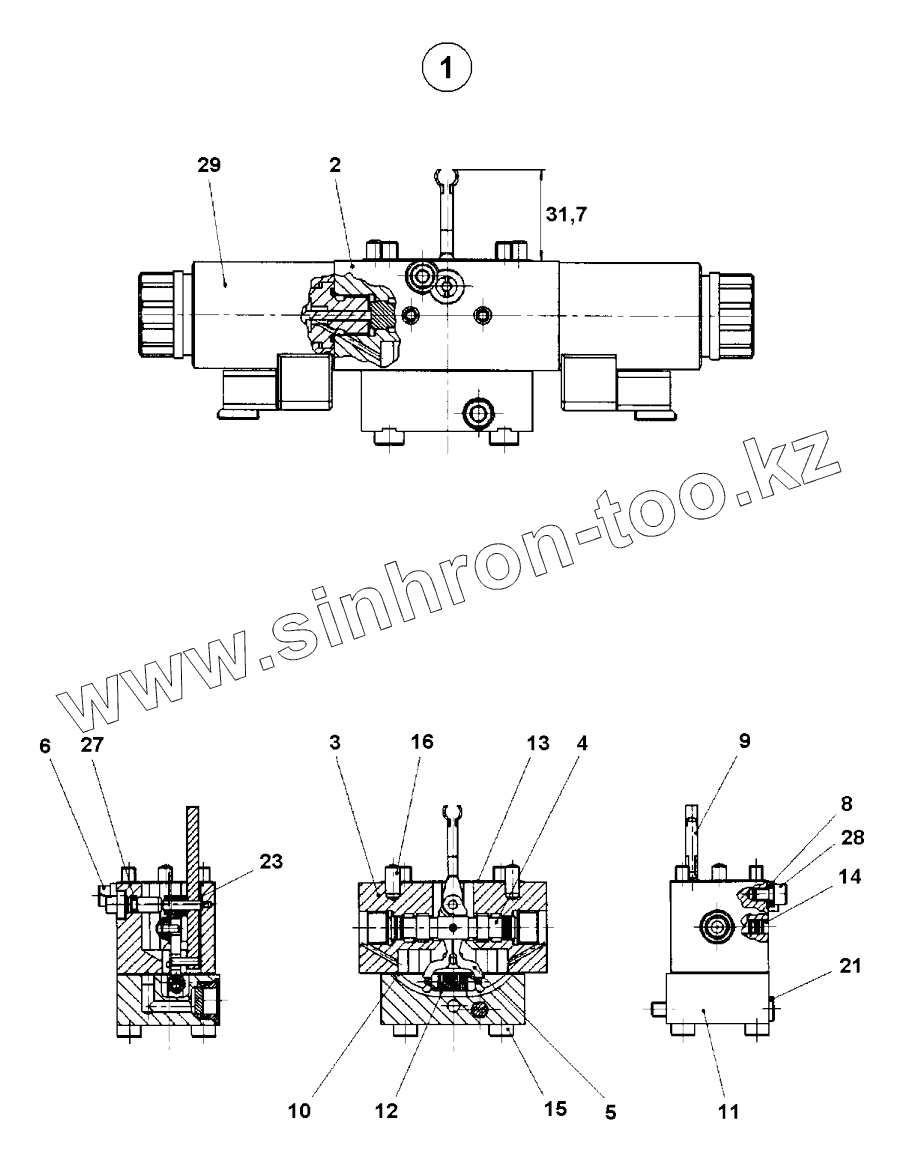

Позиция на иллюстрации
Заводской номер детали
Название детали
1
4812157152
Control module
2
Control
Control
3
Housing
Housing
4
Controlpiston
Control piston
5
Leverpair
Lever pair
6
Eccentricpin
Eccentric pin
8
Shim
Shim
9
Feedbacklever
Feedback lever with needle roller
10
4812157155
Gasket
11
Coverwithfilter
Cover with filter
12
Drawspring
Draw spring
13
4812156599
Gasket
14
Sealplug
Seal plug
15
Socketheadscrew
Socket head screw
16
Cylinderpin
Cylinder pin
21
Socketheadscrew
Socket head screw
23
Shim
Shim
27
4812157156
O-ring
28
Socketheadscrew
Socket head screw
29
4812156151
Proportional solenoid
98
D967536871
Seal kit
