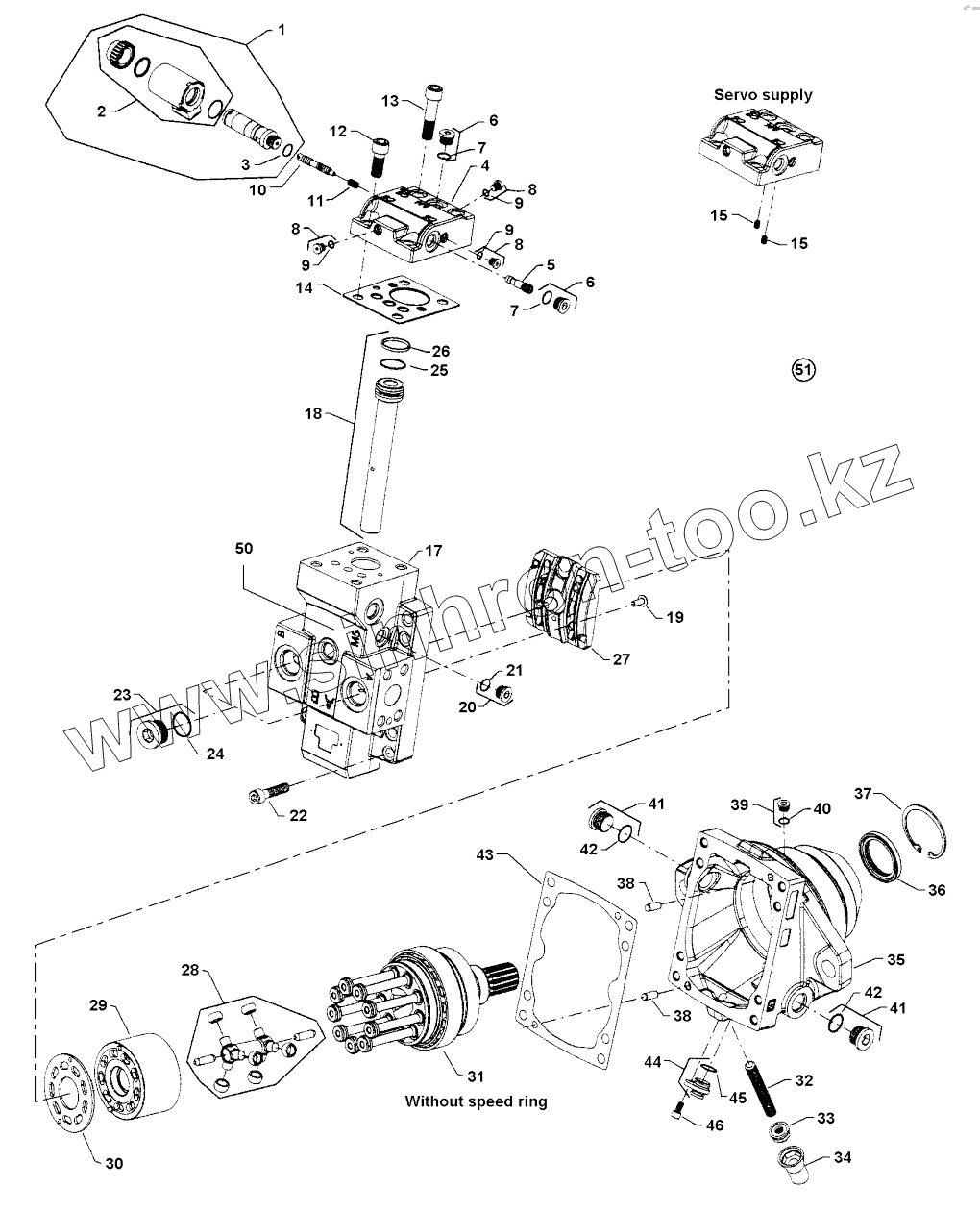

Каталог запасных частей к технике: DYNAPAC Dynapac CA5000D. 4812112200 Hydraulic motor

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
6
7
7
8
8
8
9
9
9
10
11
12
13
14
15
15
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
38
39
40
41
41
42
42
43
44
45
46
50
51
Позиция на иллюстрации Заводской номер детали Название детали
1 4812157074 Solenoid On/off
2 4812157075 Coil kit
3 O-ring O-ring
4 Controlhousing Control housing
5 4812156999 Shuttle valve assembly
6 4700908432 Plug
7 4700923087 O-ring
8 4812158398 Plug assembly
9 4700908440 O-ring
10 4812157051 Spool
11 4812157052 Spring
12 Screw Screw
13 Screw Screw
14 4812157053 Control seal
15 Orificeplug Orifice plug
17 Endcap End cap
18 4812157054 Servo piston
19 Buttonheadscrew Button head screw
20 Plug Plug connector see engine Gr. 9
21 O-ring O-ring
22 Screw Screw
23 Plug Plug connector see engine Gr. 9
24 O-ring O-ring
25 O-ring O-ring
26 Pistonring Piston ring
27 4812157055 Valve segment assembly
28 4812160876 Synch shaft assembly
29 Cylinderblock Cylinder block
30 4812157056 Bearing plate
31 Shaft Shaft
32 Setscrew Set screw
33 4700909525 Seal nut
34 4700902996 Plastic cap, green
35 Housing Housing
36 4812157058 Lip seal
37 4812157059 Retaining ring
38 Pin Pin
39 Plug Plug connector see engine Gr. 9
40 O-ring O-ring
41 Plug Plug connector see engine Gr. 9
42 O-ring O-ring
43 4812157064 Gasket
44 Plug Plug connector see engine Gr. 9
45 4812157057 O-ring
46 Screw Screw
50 Loopflushing Loop flushing
51 4812158154 Seal kit, cpl
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
