Каталог запасных частей к технике: DYNAPAC Dynapac CA302D. Speedometer and frequency meter Option 17095

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано CA1400 (2016) CA2500D (2016) CA2500D (2018) CA2500D-PD (2018) CA250D (2011) CA252D (2008) CA2800D (2017) CA3500D (2016) CA4000D (2017) CA4000D (2020) CA4600D (2019) CA5500D (2015) CA610PD (2014) CA6500 (2018) CC1000 (2019) CC1100CC (2015) CC1200C Plus (2015) CC1200C VI (2018) CC1200CC (2018) CC125 (2015) CC1250 (2015) CC1300 (2018) CC1300C (2015) CC1300C (2016) CC2200 (2018) CC2200 (2020) CC2300C (2018) CC3300 (2018) CC4000 VI (2018) CC4200C VI (2020) CC5200C (2018) CC6200 VI (2020) CC800 (2019) CC900 (2018) CC900S (2018) CG2300 (2018) CP142 (2015) CP275 (2014) Dynapac CA1500 (2017) Dynapac CA2500 (2012) Dynapac CA302D (2008) Dynapac CA302D (2010) Dynapac CA5000D (2017) Dynapac CC142 (2009) Dynapac CC2200C (2015) Dynapac CC224HF (2012) Dynapac CC322 (2008) Dynapac CC422 (2010) Dynapac CC5200 (2014) Dynapac CC5200 (2017) Dynapac CC5200 (2017) Dynapac CC5200 VI (2017) Dynapac CC800 (2013) Dynapac CC800 (2014) Dynapac F1200C/CS (2018) Dynapac F1200CS/CS (2018) Dynapac F1800C (2018) Dynapac F181C (2010) Dynapac PL2000LS (2010) Dynapac PL2000LS (2010) Dynapac PL2000S (2010) Dynapac PL2000S (2010) Dynapac SCC1300 (2014) Dynapac SD2500C (ч. 1) (2018) Dynapac SD2500C (ч. 2) (2018) Dynapac SD2550C (ч. 1) (2018) Dynapac SD2550C (ч. 2) (2018) F2500C (2018) SD2550CS (2015)

Схема > Не выбрано CA302D SN 68410303 - 68411199 939568 Service kit 50 h 939569 Service kit 500 h 939570 Service kit 1000 h 938558 Steering hitch kit 938894 Eccentric shaft kit 938891 Drum rotation kit 938881 Shock absorber kit, drum Frames Beam 17543 Scrapers, Spring Steel 18012 Scrapers, Spring Steel 17646 Scrapers, Urethan Rubber Option 18014 Scrapers, Urethan Rubber Option 16083 Hitch 17057-2 Structure 17108 Hood latch control Option 17654 Noise suppression, air inlet Option 18169 Drum shroud Option 16118 Drum 18126 Drum, DCO, Option Option 18127 Gear Assy, DCO Option 16961 Drum cartridge Vibration side 18388-1 Drum cartridge Vibration side 16963 Drum cartridge Drive side 16963 Drum cartridge Drive side 372987 Drum gear 16115 Engine Up to 68X10468 Deutz BF4M2012C Engine From 68X10469 Deutz BF4M2012C 17752 Cooling system 17756 Combustion air system Up to 68X10323 17756-1 Combustion air system From 68X10324 17760 Fuel system 17750-1 Exhaust system 17856 High mounted exhaust system Option Rear axle and wheels Up to 68X10705 Rear axle and wheels From 68X10706 Up to 68X10720 Rear axle and wheels From 68X10721 Up to 68X10842 Rear axle and wheels From 68X10843 383857 Rear axle 17672 Differential with limited slip 17670 Differential housing and brakes 17673 Planet gear 383856 Rear axle No-Spin, Option 17671 17689 Differential with No-Spin 17673 Planet gear 16613 Propulsion system, Front 371509 Propulsion motor 16542 17730 Propulsion system, Rear 374137 Propulsion motor Up to 68X10373 373361 Propulsion motor From 68X20374 16615 Vibration system 18317 Vibration system DCO, Option 380145 Hydraulic motor, vibration 16978 Steering system CA302200500030 392002 Steering cylinder 375031 Steering cylinder 16490 Up to 68X10966 372424 Pilot valve, steering 15981 Brake system 16617 Hydraulic oil tank 16054-1 Hydraulic oil tank CA252200500470 Central test panel hydraulic 17119-2 Dual speed drum drive Option 17293 Electric system 17737-1 Electric system, additional DCO, Option 18134-1 Relay and Fuses 16843 Instrument box 17021 Instrument panel Main 17020 Instrument panel Upper left 15989 Instrument panel Upper right 15991 Instrument panel Lower left 17035 Instrument panel Lower right 17764 Instrument panel Lower right, DCO, Option 18318 Emergency stop panel 15963-1 Emergency stop panel 18063 Driving lights Option 17488 Working lights Option 17505 Rotating beacon Option 16850 Compaction meter Option 17096 Up to 68X10371 Compaction meter Option 18064 From 68X10372 Speedometer and frequency meter Option 17095 Speedometer and frequency meter Option 18017 Tachograph, platform Option 17805 Tachograph , cab Option 17806 Tachograph, simple cab Option 18161 Back-up alarm Option 17114 Up to 68X10565 Back-up alarm Option 17983 From 68X10566 Protecting cover, Headlight Option 17344 Field computer assembly Option 17804-2 Compaction Analyzer Option 17913 From 68X10372 Geodynamic Compaction indicator Option 18162 Drivers platform 17754 Drivers platform, for cab 17650-1 Drivers seat Standard platform 16010-1 Drivers seat Turn-over platform 17036 Drivers seat Turn-over in cab 17037 359918 Steering column 15944 Steering system 17038-1 Turning Controls 17040 Turning Carrier 17041 Forward and reverse control 17465 Speed limiter Option 17657 Engine control 17755 Up to 68X10461 Engine control 17987 From 68X10462 Rops and fops 17738 Cab Interior 17678 Cab Inside panels 17679 Cab Screens Cab Door 17681 Cab Wipers front and rear 17682 Cab Mirror, Sun curtain 17683 Cab Electric 17684 Cab Heater system 17685 385434 Cab heater, cpl 17686 Cab Cable harness 17694-1 Cab Work lights 16007 Cab Exterior, rear mirror 16009 Radio and cassette/cd player Option 15883-1 Cab, 12V contact 17912 Rear mirror Option 17120 Simple Cab mounting Option 16966 Cab Screens 17435 Cab Door, left side 16967-1 Cab Interior rear mirror 16008 Wiper arm with blade, front 16968 Cab Electric 17377 Cab mounting 18429 Cab Screens Cab Door, left side 16967-1 Decals Decals 17017-1 Standard equipment 15639-1 Tool equipment 17111-1 SMV-sign, First aid box 17113 Canopy 17121 Levelling blade, metal parts 17132-1 Levelling blade, hydraulic parts 18160 Levelling blade control 17134 Air conditioner assembly 17674 Condensor assembly 17676-1 Compressor assembly 17675 Evaporator assembly 17677-1 Anti-spin CA 17343 Up to ECN04171 Anti-spin CA 17343-2 From ECN04171 Anti spin, Potentiometer installation 17356 Anti spin, Hydraulic 17293 Roof hatch 17374 Pad shell 17506 Scraper and beam 17373 Pad shell assy, Special field kt 18176 Pad shell 18170 Fire extinguisher assembly 17810 Heater, Simple cab Option 18163 385222 Heater 17784

1

2

3

4

5

6

7

8

9

10

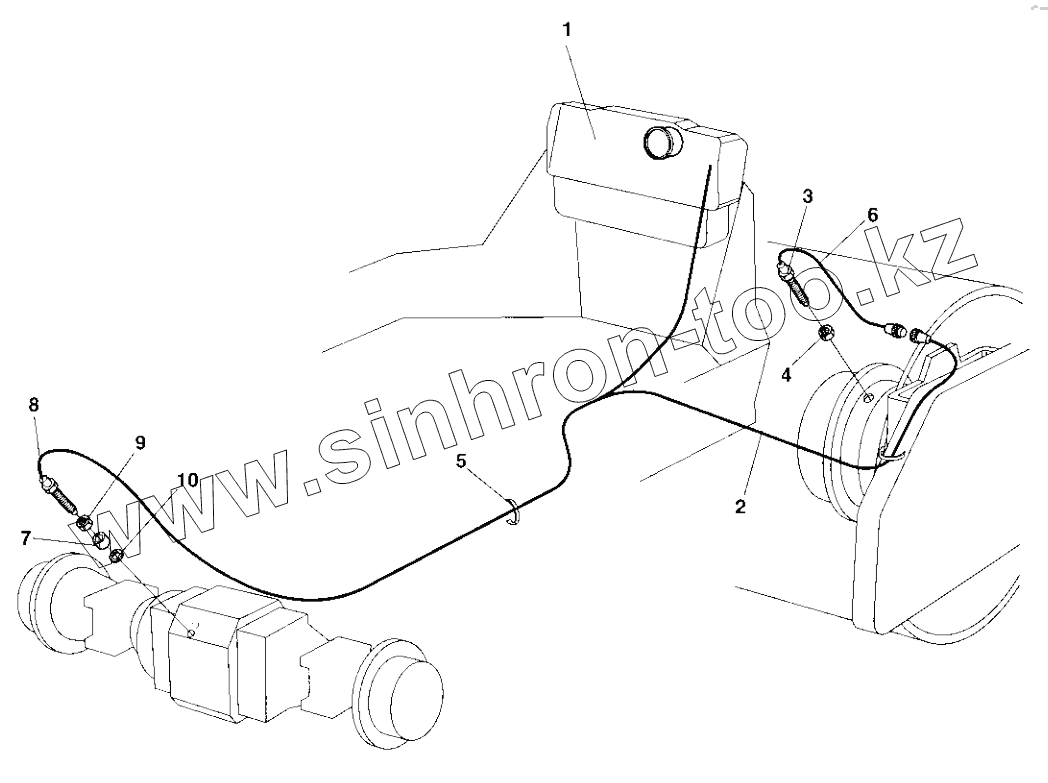

Позиция на иллюстрации	Заводской номер детали		Название детали
1	Controlpanel		Control panel
2	372205		Cable harness
3	372618		Sensor 3/4-16
4	801669		Thru-seal nut
5	313041		Cable ties
6	925802		Cable ties
7	371727		Sleeve
8	384069		Sensor
9	903770		Nut
10	903769		Sealing

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
