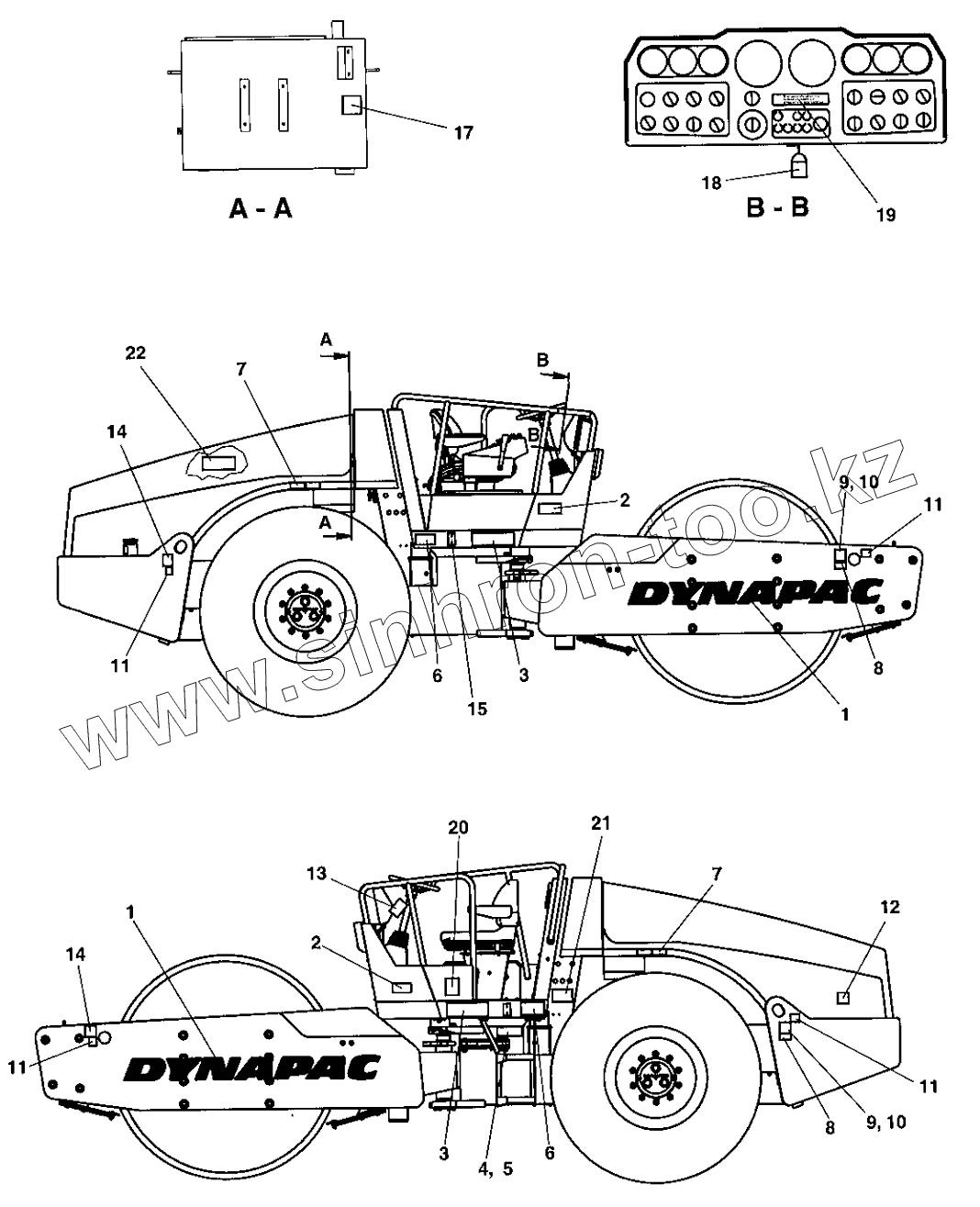

Каталог запасных частей к технике: DYNAPAC Dynapac CA302D. Decals

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
2
2
3
3
4
5
6
6
7
7
8
8
9
9
10
10
11
11
11
11
12
13
14
14
15
17
18
19
20
21
22
Позиция на иллюстрации Заводской номер детали Название детали
1 904068 Decal DYNAPAC
2 903422 Decal SAFETY
3 904237 Decal MODEL CODE
4 Identificationplate Product identification plate
4 IdentificationplateCE Product identification plate CE
5 624005 Pop rivet
6 903459 Decal SAFETY
7 349220 Decal TYRE PRESSURE
8 908229 Safety decal
9 904870 Lifting sign
10 624016 Blind rivet
11 382751 Decal TIE DOWN POINT
12 904835 Decal BATTERY POWER
13 384160 Loading/Unloading instruction
14 588176 Decal LIFT POINT
15 377744 Reflector, yellow
17 272373 Decal HYDRAULIC OIL
18 358881 Pad lock
19 349248CN Decal WARNING Chinese
19 349248EN Decal WARNING English
19 349248IS Decal WARNING Icelandic
19 349248GR Decal WARNING Greek
19 349248NL Decal WARNING Dutch
19 349248PT Decal WARNING Portuguese
19 349248FI Decal WARNING Finnish
19 349248DK Decal WARNING Danish
19 349248NO Decal WARNING Norwegian
19 349248FR Decal WARNING French
19 349248ES Decal WARNING Spanish
19 349248IT Decal WARNING Italian
19 349248DE Decal WARNING German
19 349248SE Decal WARNING Swedish
20 791276 Decal Sound power level Option
20 791278 Decal Sound Power Level Option
20 791275 Decal Sound power level 105dB
20 791277 Decal Sound power level 107dB
21 791094 Decal RUS 127 approved Option
22 791642 Decal WARNING
