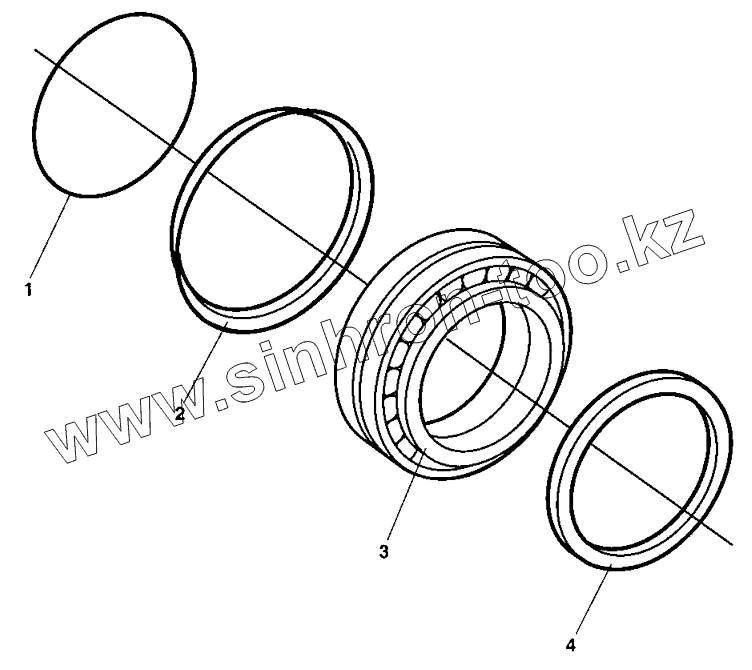

Позиция на иллюстрации	Заводской номер детали		Название детали
938891	938891		Drum rotation kit
1	160105		O-ring
2	929447		V-ring
3	116041		Taper roller bearing
4	386272		Sealing
