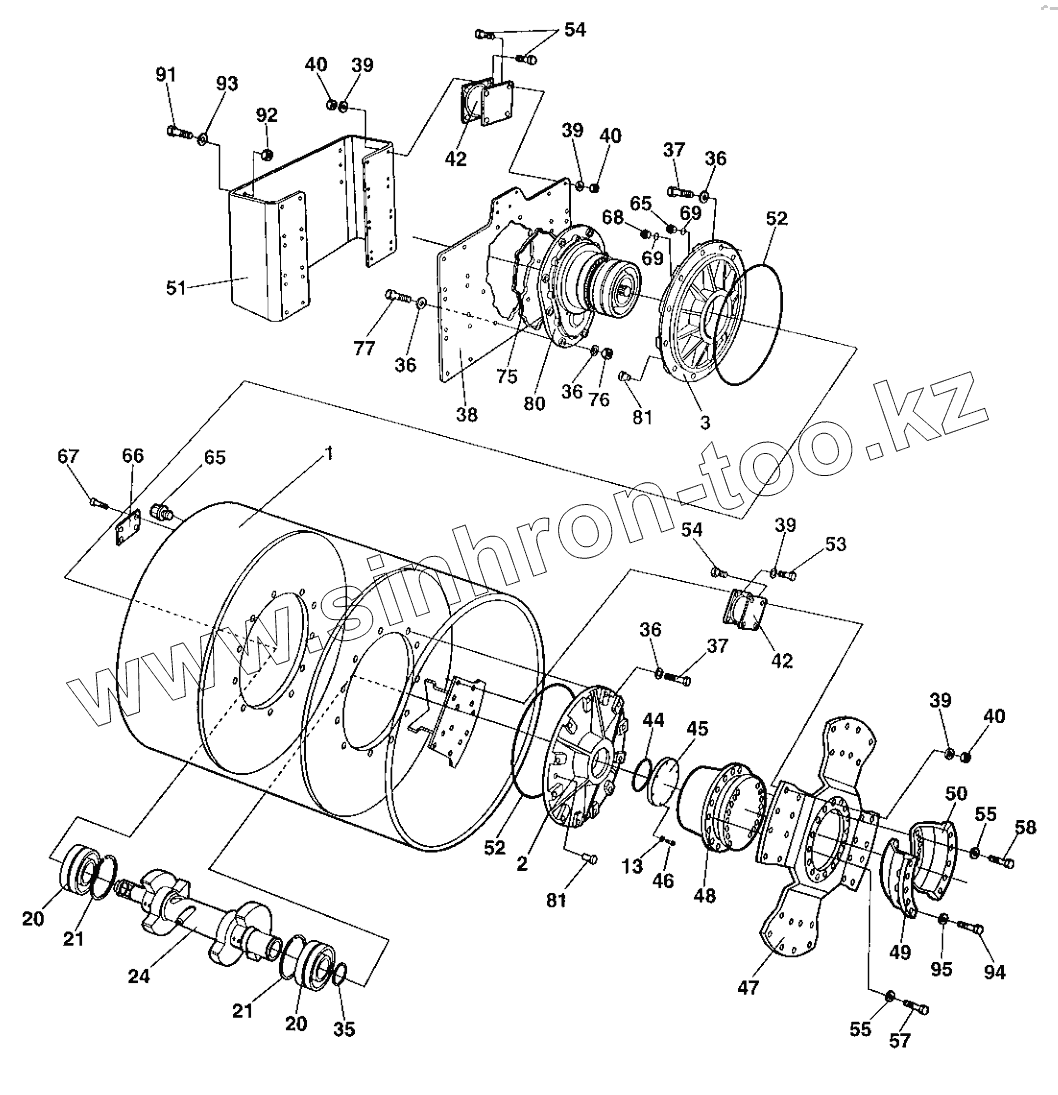

Каталог запасных частей к технике: DYNAPAC Dynapac CA302D. 18126 Drum, DCO, Option Option
1
2
3
13
20
20
21
21
24
35
36
36
36
36
37
37
38
39
39
39
39
40
40
40
42
42
44
45
46
47
48
49
50
51
52
52
53
54
54
55
55
57
58
65
65
66
67
68
69
69
75
76
77
80
81
81
91
92
93
94
95
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 396141 | 396141 | Holder plate | |
| 1 | 388032 | Drum | |
| 2 | 389063 | Bearing housing | |
| 3 | 389064 | Bearing housing | |
| 13 | 904230 | Washer 10,5x22x2 | |
| 20 | 388089 | Bearing | |
| 21 | 791927 | Retaining ring | |
| 24 | 388044 | Eccentric shaft | |
| 35 | 150030 | Retaining ring | |
| 36 | 904232 | Washer 17x30x3 | |
| 37 | 500082 | Screw M16x70 | |
| 38 | 389068 | Holder plate | |
| 39 | 904231 | Washer 13x24x2 | |
| 40 | 570007 | Nut | |
| 42 | 801187 | Shock absorber | |
| 44 | 160358 | O-ring | |
| 45 | 383783 | Bearing cover | |
| 46 | 500029 | Screw | |
| 47 | 372230 | Drive disc | |
| 48 | 372987 | Drum gear | |
| 49 | 373443 | Gear holder | |
| 50 | 373442 | Gear holder | |
| 51 | 378686 | Holder plate | |
| 52 | 904737 | O-ring | |
| 53 | 500051 | Hex. screw | |
| 54 | 500194 | Screw | |
| 55 | 904233 | Washer 21x36x3 | |
| 57 | 903281 | Screw | |
| 58 | 903919 | Screw | |
| 65 | 232210 | Plug | |
| 66 | 343801 | Sign plate | |
| 67 | 527002 | Drive screw | |
| 68 | 343744 | Magnetic plug M30 | |
| 69 | 162017 | Seal ring M30 | |
| 75 | 792088 | Rubber strip | |
| 76 | 570008 | Hex. nut | |
| 77 | 500058 | Screw | |
| 80 | GearAssy | Gear Assy, DCO | |
| 81 | 900775 | Plug | |
| 90 | 345678 | Shim | |
| 90 | 345679 | Shim | |
| 90 | 345884 | Shim | |
| 90 | 345885 | Shim | |
| 91 | 928850 | Screw | |
| 92 | 901145 | Lock nut | |
| 93 | 904233 | Washer 21x36x3 | |
| 94 | 500146 | Screw | |
| 95 | 904234 | Washer 25x45x4 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
