  5. Structure 17057-2 From 68X20664

Каталог запасных частей к технике: DYNAPAC Dynapac CA302D. Structure 17057-2 From 68X20664

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
5
6
6
7
7
7
8
8
8
9
9
10
11
13
13
14
15
16
17
17
17
17
17
18
18
19
20
21
21
21
22
22
23
23
24
25
26
27
28
29
30
31
31
32
33
34
35
37
38
41
42
42
42
42
44
45
46
47
48
49
50
50
52
52
53
54
55
56
57
59
60
60
62
63
66
67
68
69
69
71
72
73
74
75
77
78
78
78
78
78
79
90
91
92
93
94
94
95
95
96
97
97
98
98
99
99
100
101
102

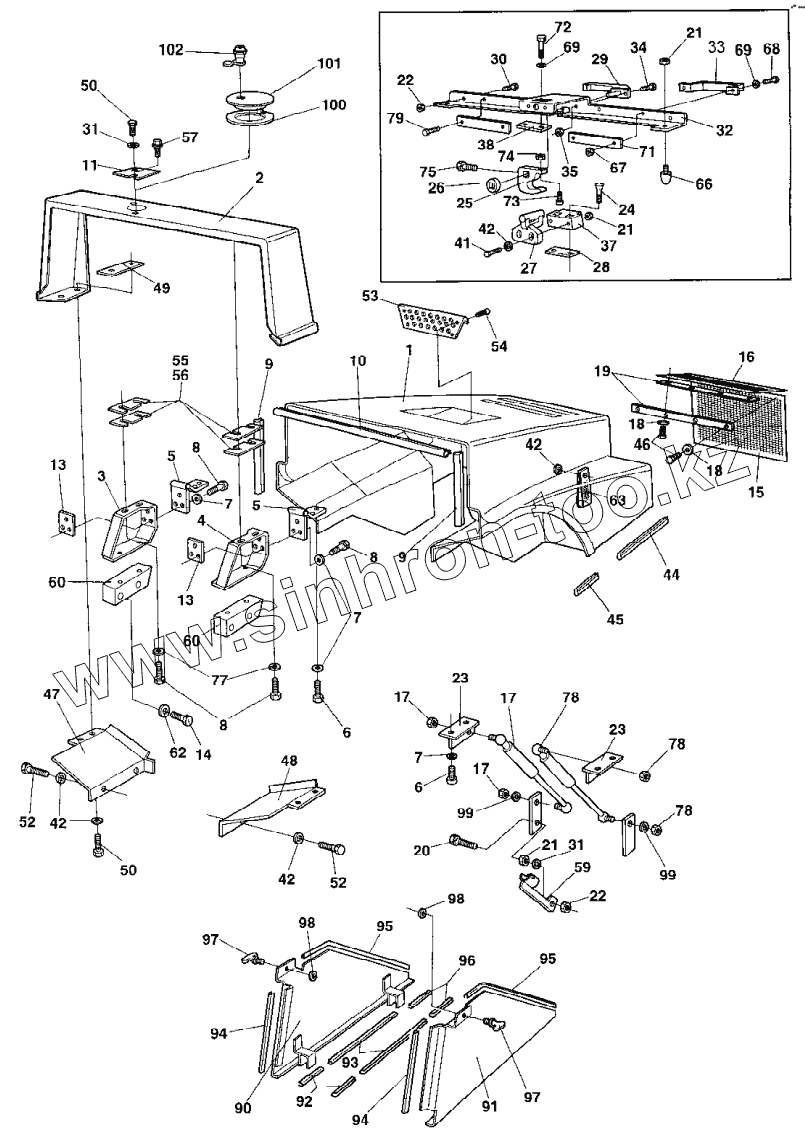

Позиция на иллюстрации Заводской номер детали Название детали
902866 902866 Key Marked 455
1 372066 Hood
2 374025 Protection hood
3 374797 Clamp
4 374798 Clamp
5 371366 Hinge
6 500028 Screw
7 904557 Washer 10,5x22x4
8 500030 Screw
9 902166 Edge trim
10 902166 Edge trim
11 373955 Cover
13 374799 Holder plate
14 500133 Hex. screw
15 374017 Grid
16 372695 Grid
17 382387 Gas spring
17 382384 Gas spring
18 927974 Washer
19 202047 Rubber strip
20 904241 Screw M8x40
21 570005 Nut
22 902286 Lock nut M8
23 372608 Bracket
24 903732 Screw
25 382130 Hook
26 382335 Spacer sleeve
27 382131 Lock clamp
28 374198 Holder plate
29 382165 Locking handle
30 927637 Screw
31 904556 Washer 8,4x16x3,0
32 382129 Holder plate
33 904874 Grab handle
34 535011 Screw
35 902284 Nut
37 382132 Holder
38 382336 Holder
41 500026 Screw
42 904640 Washer 8,4x22x3
44 902166 Edge trim
45 902166 Edge trim
46 904244 Screw
47 373204 Holder plate
48 373203 Holder plate
49 373309 Holder plate
50 500021 Screw
52 500019 Screw
53 372575 Grid
54 901767 Screw
55 373956 Shim
56 373957 Shim
57 500505 Screw
59 382382 Safety rod
60 381989 Holder
62 904231 Washer 13x24x2
63 374854 Grab handle
66 925629 Shock absorber
67 902285 Lock nut M6
68 500088 Screw M6x40
69 904228 Washer 6,4x12x1,5
71 382355 Holder plate
72 500013 Hex. screw
73 500040 Screw
74 570004 Hex. nut
75 500018 Screw
77 904567 Washer 10,5x28x6
78 382384 Gas spring
78 382387 Gas spring
79 541507 Screw
90 373197 Cover, right
91 373196 Cover, left
92 202056 Edge trim
93 202056 Edge trim
94 202056 Edge trim
95 904076 Edge trim
96 202056 Edge trim
97 904075 Quick lock
98 926985 Quick lock washer
99 904230 Washer 10,5x22x2
100 375681 Gasket
101 375678 Cover
102 372658 Lock
