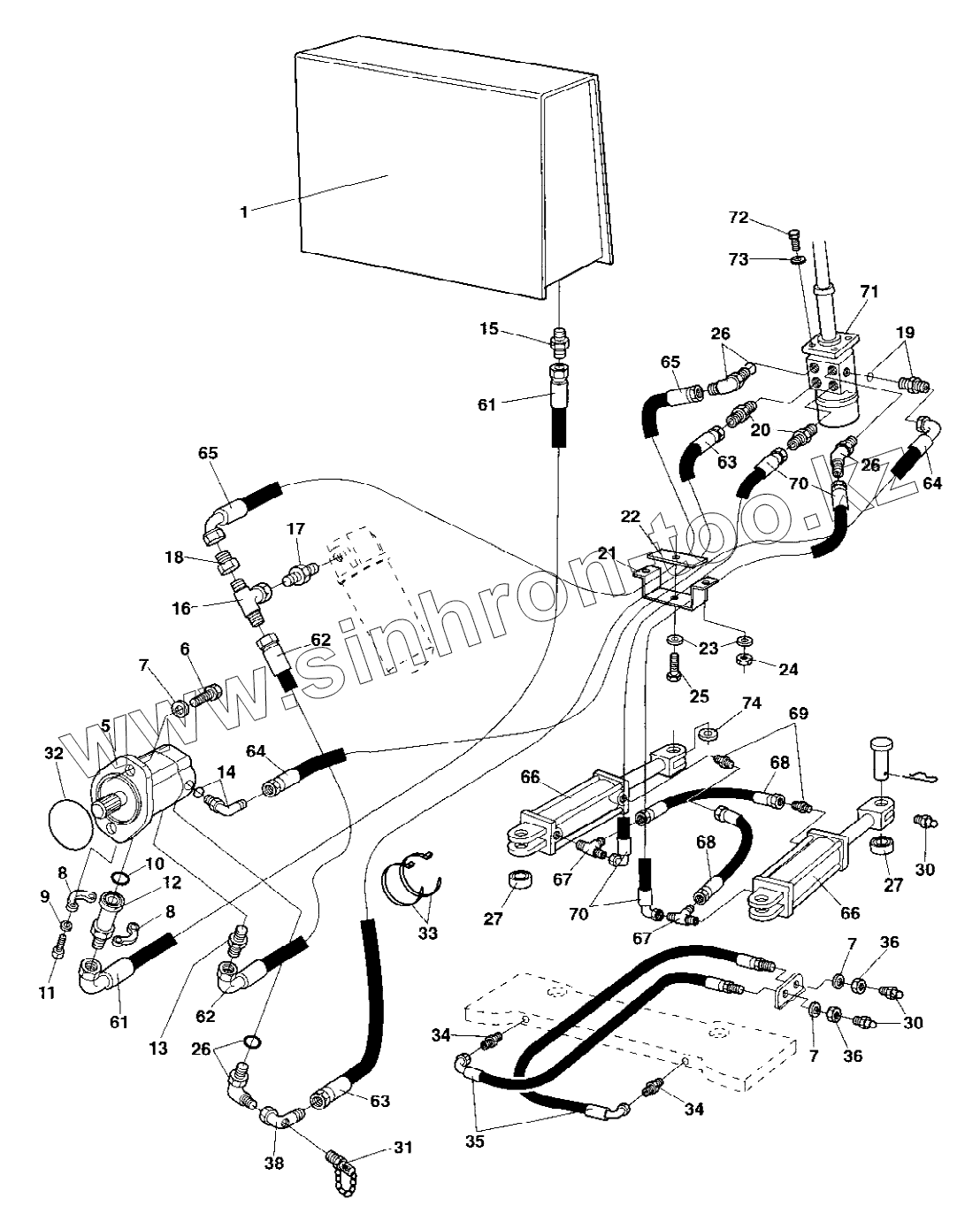

Каталог запасных частей к технике: DYNAPAC Dynapac CA302D. Steering system
1
5
5
5
5
5
6
7
7
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
26
26
26
26
27
27
30
30
31
32
33
34
34
35
36
36
38
38
38
61
61
62
62
63
63
64
64
65
65
66
66
66
66
67
67
68
68
69
70
70
71
72
73
74
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 937055 | 937055 | O-ring | |
| 1 | Hydraulicoiltank | Hydraulic oil tank | |
| 5 | 373610 | Steering pump | |
| 5 | 381727 | Steering pump | |
| 5 | 374995 | Steering pump | |
| 6 | 500133 | Hex. screw | |
| 7 | 904231 | Washer 13x24x2 | |
| 8 | 232097 | Flange half | |
| 9 | 904637 | Washer 10x18x2 | |
| 10 | 904005 | O-ring | |
| 11 | 508029 | Screw | |
| 12 | 372625 | Connector | |
| 13 | 334158 | Adapter | |
| 14 | 334203 | Elbow 90, O-ring | |
| 15 | 234626 | Adapter | |
| 16 | 234900 | T-connector | |
| 17 | 334468 | Adapter | |
| 18 | 234667 | Reducer | |
| 19 | 334143 | Straight connector | |
| 20 | 334121 | Adapter | |
| 21 | 372513 | Hose clamp | |
| 22 | 372514 | Hose clamp | |
| 23 | 904229 | Washer 8,4x16x1,5 | |
| 24 | 586003 | Lock nut M8 | |
| 25 | 500023 | Screw | |
| 26 | 813500 | Elbow 45, O-ring | |
| 26 | 813500 | Elbow 45, O-ring | |
| 27 | 813316 | Ball bushing | |
| 30 | 926214 | Grease fitting | |
| 31 | 910161 | Measuring nipple | |
| 32 | 909743 | Gasket | |
| 33 | 313102 | Cable ties | |
| 34 | 371669 | Straight connector | |
| 35 | 903812 | Hydraulic hose | |
| 36 | 903831 | Nut | |
| 38 | 372628 | Adapter | |
| 38 | 375669 | Adapter | |
| 61 | 483050 | Hydraulic hose | |
| 62 | 483107 | Hydraulic hose | |
| 63 | 482858 | Hydraulic hose | |
| 64 | 483108 | Hydraulic hose | |
| 65 | 338486 | Hydraulic hose | |
| 66 | 373410 | Hydraulic cylinder | |
| 66 | 375031 | Hydraulic cylinder | |
| 67 | 234218 | Connector | |
| 68 | 483109 | Hydraulic hose | |
| 69 | 334121 | Adapter | |
| 70 | 483026 | Hydraulic hose | |
| 71 | 372424 | Pilot valve | |
| 72 | 502034 | Screw | |
| 73 | 904230 | Washer 10,5x22x2 | |
| 74 | 600016 | Washer 26x45x4 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
