Каталог запасных частей к технике: DYNAPAC Dynapac CA302D. Protection cover, Head light Option

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано CA1400 (2016) CA2500D (2016) CA2500D (2018) CA2500D-PD (2018) CA250D (2011) CA252D (2008) CA2800D (2017) CA3500D (2016) CA4000D (2017) CA4000D (2020) CA4600D (2019) CA5500D (2015) CA610PD (2014) CA6500 (2018) CC1000 (2019) CC1100CC (2015) CC1200C Plus (2015) CC1200C VI (2018) CC1200CC (2018) CC125 (2015) CC1250 (2015) CC1300 (2018) CC1300C (2015) CC1300C (2016) CC2200 (2018) CC2200 (2020) CC2300C (2018) CC3300 (2018) CC4000 VI (2018) CC4200C VI (2020) CC5200C (2018) CC6200 VI (2020) CC800 (2019) CC900 (2018) CC900S (2018) CG2300 (2018) CP142 (2015) CP275 (2014) Dynapac CA1500 (2017) Dynapac CA2500 (2012) Dynapac CA302D (2008) Dynapac CA302D (2010) Dynapac CA5000D (2017) Dynapac CC142 (2009) Dynapac CC2200C (2015) Dynapac CC224HF (2012) Dynapac CC322 (2008) Dynapac CC422 (2010) Dynapac CC5200 (2014) Dynapac CC5200 (2017) Dynapac CC5200 (2017) Dynapac CC5200 VI (2017) Dynapac CC800 (2013) Dynapac CC800 (2014) Dynapac F1200C/CS (2018) Dynapac F1200CS/CS (2018) Dynapac F1800C (2018) Dynapac F181C (2010) Dynapac PL2000LS (2010) Dynapac PL2000LS (2010) Dynapac PL2000S (2010) Dynapac PL2000S (2010) Dynapac SCC1300 (2014) Dynapac SD2500C (ч. 1) (2018) Dynapac SD2500C (ч. 2) (2018) Dynapac SD2550C (ч. 1) (2018) Dynapac SD2550C (ч. 2) (2018) F2500C (2018) SD2550CS (2015)

Схема > Не выбрано 938466 Service kit 50h 938527 Service kit 250/750 h 938520 Service kit 500 h 938467 Service kit 1000 h 938558 Steering hitch kit 938894 Eccentric shaft kit 938891 Drum rotation kit 938881 Shock absorber kit, drum Frames Scrapers Up to 68220746 Scraper and beam From 68220747 Scrapers, Urethan Rubber Option Up to 68X20840 Scrapers, Urethan Rubber Option From 68X20841 Scrapers, Spring Steel Option Up to 68220843 Scrapers, Spring Steel Option From 68220844 Hitch Structure 16125-1 Up to 68X20663 Structure 17057-2 From 68X20664 Hood latch control Option Noise suppressed hood Option Noise suppression, air inlet Option Drum Drum cartridge Vibration side Up to 68X20494 Drum cartridge Vibration side From 68X20495 Up to 68X20602 Drum cartridge Vibration side From 68X20603 Drum cartridge Drive side Up to 68X20494 Drum cartridge Drive side From 68X20495 Up to 68X20602 Drum cartridge Drive side From 68X20603 372987 Drum gear Engine Cummins 4BTA 3.9 ELITE Cooling system Up to 68X20521 372052 Radiator Up to 68X20388 375479 Radiator From 68X20389 Cooling system From 68X20522 Combustion air system Fuel system Exhaust system Version 1 Exhaust system Version 2 Rear axle and wheels Up to 68X20840 Rear axle and wheels From 68X20841 Rear axle Up to 68X20840 Rear axle From 68X20841 Differential with limited slip Up to 68X20840 Differential with limited slip From 68X20841 Differential housing and brakes Up to 68X20840 Differential housing and brakes From 68X20841 Planet gear Up to 68X20840 Planet gear From 68X20841 372941 Rear axle No-Spin, Option Up to 68X20840 Differential with No-Spin Differential housing and brakes Planet gear 383856 Rear axle No-Spin, Option From 68X20841 Differential with No-Spin Planet gear Propulsion system, Front 371509 Propulsion motor Propulsion system, Rear 371545 Propulsion pump Up to 68X20612 374137 Propulsion motor Vibration system 372624 Vibration pump pump Up to 68X20534 381151 Vibration pump From 68X20535 Up to 68X20744 937167 Rotary group, cpl 937168 Valve block, cpl 355778 Vibration motor Up to 68X20444 380145 Vibration motor From 68X20445 Steering system 373610 Steering pump Up to 68X20434 374995 Steering pump From 68X20435 Up to 68X20617 381727 Steering pump From 68X20618 373410 Hydraulic cylinder Up to 68X20414 375031 Hydraulic cylinder From 68X20415 372424 Pilot valve Brake system Hydraulic oil tank Central test panel hydraulic Dual speed drum drive Option Electrical system Relay and Fuses Instrument box Instrument panel Main Up to 68X20576 Instrument panel Main From 68X20577 Instrument panel Upper left Instrument panel Upper right Instrument panel Lower left Instrument panel Lower right Emergency stop panel Driving lights Option Up to 68X20746 Driving lights Option From 68X20747 Working lights Option Up to 68X20746 Working lights Option From 68X20747 Rotating beacon Option Compaction meter Option Speedometer and frequency meter Option Tachograph Option Back-up alarm Option Protection cover, Head light Option Drivers platform Drivers platform, for cab Up to 68X20851 Drivers platform, for cab From 68X20852 Drivers seat Standard platform Drivers seat Turn-over platform Up to 68X20579 Drivers seat Turn-over platform From 68X20580 Drivers seat Turn-over incab Up to 68X20579 Drivers seat Turn-over incab From 68X20580 Steering column Steering system Up to 68X20579 Steering system From 68X20580 Turning Controls Turning Carrier Forward and reverse control Up to 68X20612 Forward and reverse control From 68X20613 Up to 68X20697 Forward and reverse control From 68X20698 Speed limiter Option Engine controls Rops and fops Cab Interior (Cab Up to 68X20851) Cab Inside panels (Cab Up to 68X20851) Cab Screens (Cab Up to 68X20851) Cab Wipers front and rear (Cab Up to 68X20851) Cab Water tank, wipers (Cab Up to 68X20851) Cab Door (Cab Up to 68X20851) Cab Heater and fan system Up to 68X20495 Cab Heater and fan system Up to From 68X20496 Cab Wiring harness (Cab Up to 68X20851) Cab Roof mounted electr. switches (Cab Up to 68X20851) Cab Interior (From 68X20852) Cab Inside panels (From 68X20852) Cab Screens (From 68X20852) Cab Door (From 68X20852) Cab Wipers front and rear (From 68X20852) Cab Mirror, Sun curtain (From 68X20852) Cab Electric (From 68X20852) Cab Heater system (From 68X20852) 385434 Cab heater, cpl (From 68X20852) Cab Cable harness (From 68X20852) Cab Work lights Cab Exterior rear mirror Radio and cassette player Option Rear mirror Option Simple Cab mounting Option Simple Cab mounting Electric, Option Decals Decals Standard equipment Tool equipment Sign SMV, First aid box Canopy Levelling blade, metal parts Levelling blade, hydraulic parts Levelling blade control Air conditioner assembly Up to 68X20851 Air conditioner unit Air conditioner assembly From 68X20852 Condensor assembly Compressor assembly Evaporator assambly Anti spin CA Anti spin, Potentiometer installation Anti spin, Hydraulic Roof hatch Pad shell Scraper and beam

1

2

3

4

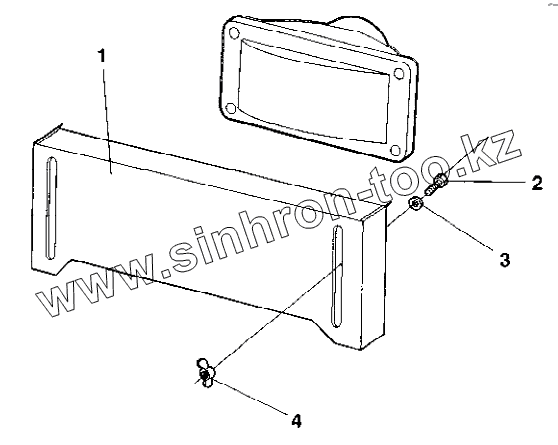

Позиция на иллюстрации	Заводской номер детали		Название детали
1	376068		Protecting plate
2	500013		Hex. screw
3	904228		Washer 6,4x12x1,5
4	582006		Wing nut

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
