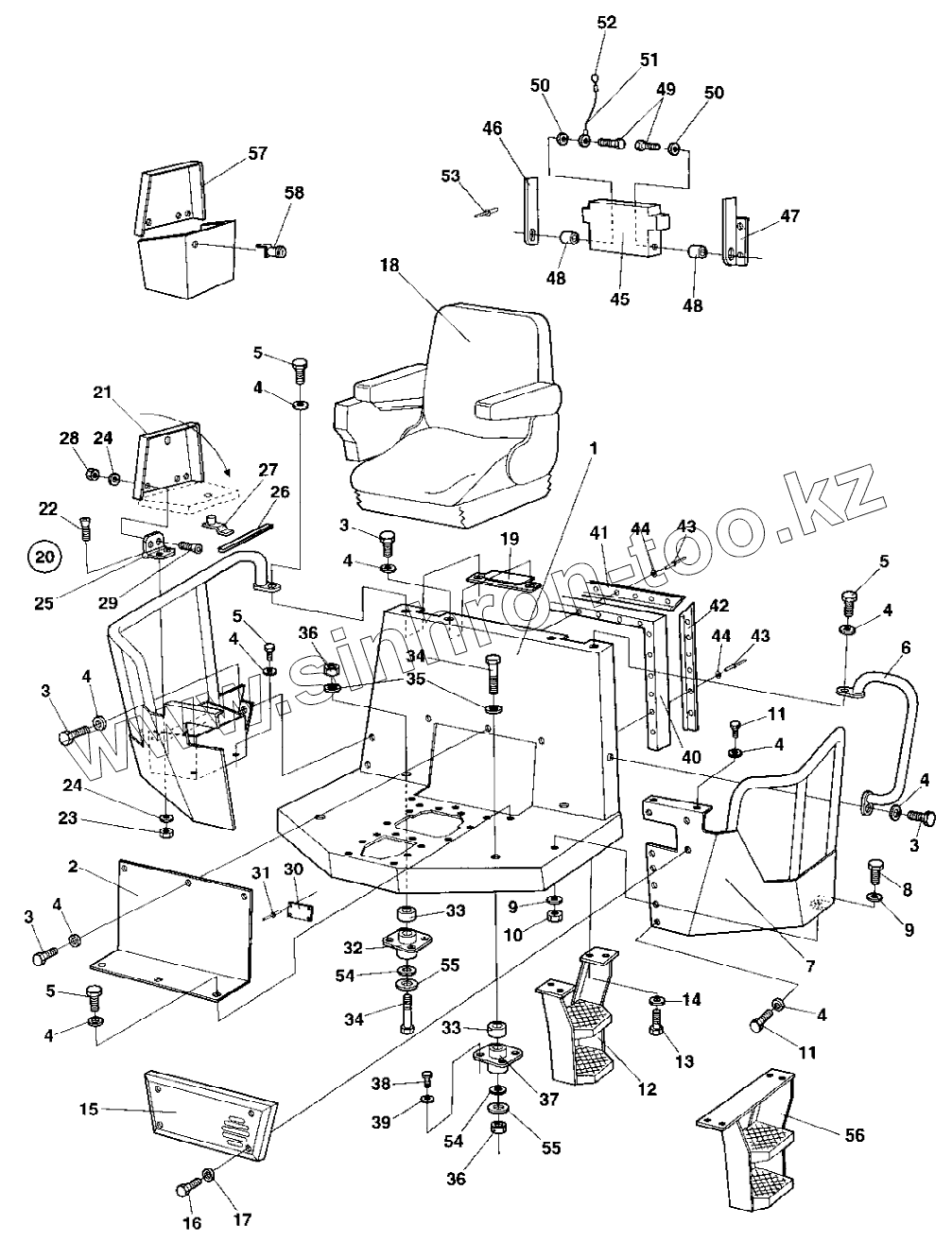

Каталог запасных частей к технике: DYNAPAC Dynapac CA302D. Drivers platform
1
2
3
3
3
3
4
4
4
4
4
4
4
4
4
4
5
5
5
5
6
7
8
9
9
10
11
11
12
13
14
15
15
15
16
16
16
17
18
19
20
21
22
23
24
24
25
26
27
28
29
30
31
32
33
33
34
34
35
36
36
37
38
39
40
41
42
43
43
44
44
45
46
47
48
48
49
50
50
51
51
51
52
53
53
53
54
54
55
55
56
57
58
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 902866 | 902866 | Key Marked 455 | |
| Enginecontrols | Enginecontrols | Engine controls | |
| Forwardcontrol | Forwardcontrol | Forward and reverse control | |
| Forwardcontrol | Forwardcontrol | Forward and reverse control | |
| Forwardcontrol | Forwardcontrol | Forward and reverse control | |
| Driversseat | Driversseat | Drivers seat | |
| Driversseat | Driversseat | Drivers seat | |
| 904941 | 904941 | Spacer screw | |
| 1 | 371100 | Platform | |
| 2 | 372053 | Cover | |
| 3 | 500053 | Screw | |
| 4 | 904229 | Washer 8,4x16x1,5 | |
| 5 | 500021 | Screw | |
| 6 | 371202 | Hand rail | |
| 7 | 371967 | Operator protection | |
| 8 | 500031 | Screw | |
| 9 | 904557 | Washer 10,5x22x4 | |
| 10 | 570006 | Nut | |
| 11 | 500019 | Screw | |
| 12 | 371269 | Step | |
| 13 | 500029 | Screw | |
| 14 | 904230 | Washer 10,5x22x2 | |
| 15 | 382849 | Protection cover | |
| 15 | 371268 | Protection cover | |
| 16 | 904206 | Screw | |
| 16 | 500017 | Screw | |
| 17 | 904228 | Washer 6,4x12x1,5 | |
| 18 | Driversseat | Drivers seat | |
| 19 | 380727 | Cover | |
| 20 | 371966 | Operator protection | |
| 21 | 372972 | Cover | |
| 22 | 535015 | Screw | |
| 23 | 586002 | Lock nut M6 | |
| 24 | 904228 | Washer 6,4x12x1,5 | |
| 25 | 903907 | Hinge | |
| 26 | 202028 | Edge trim | |
| 27 | 372658 | Lock | |
| 28 | 581018 | Nut | |
| 29 | 535013 | Screw | |
| 30 | 343801 | Sign plate | |
| 31 | 903962 | Blind rivet | |
| 32 | 372757 | Shock absorber D | |
| 33 | 374471 | Spacer | |
| 34 | 500226 | Screw | |
| 35 | 904233 | Washer 21x36x3 | |
| 36 | 586022 | Lock nut M20 | |
| 37 | 370255 | Shock absorber D | |
| 38 | 500111 | Screw | |
| 39 | 904231 | Washer 13x24x2 | |
| 40 | 372494 | Rubber strip | |
| 41 | 372785 | List | |
| 42 | 372786 | List | |
| 43 | 904433 | Blind rivet | |
| 44 | 927974 | Washer | |
| 45 | 357425 | Instruction book holder | |
| 46 | 357426 | Cover holder | |
| 47 | 357427 | Cover holder | |
| 48 | 902163 | Parallel pin | |
| 49 | 902164 | Screw | |
| 50 | 929602 | Washer | |
| 51 | 357643 | Wire | |
| 51 | 384584 | Wire | |
| 52 | 358254 | Key-ring | |
| 53 | 903436 | Blind rivet | |
| 53 | 904855 | Blind rivet | |
| 54 | 903290 | Washer 21x36x6 | |
| 55 | 347512 | Washer | |
| 56 | 376252 | Step | |
| 57 | 376079 | Cover | |
| 58 | 376118 | Lock |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
