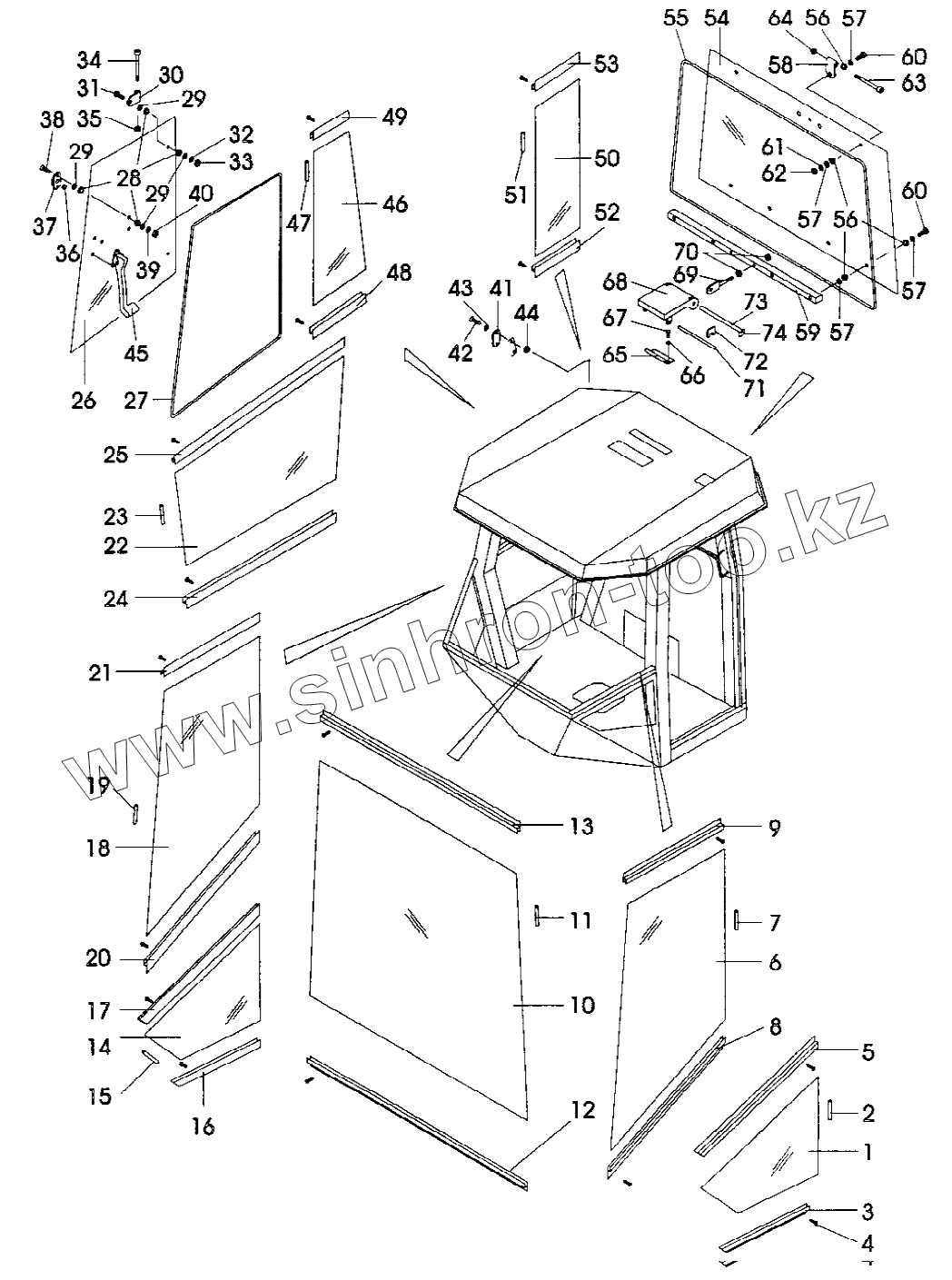

Каталог запасных частей к технике: DYNAPAC Dynapac CA302D. Cab Screens (Cab Up to 68X20851)

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
1
2
3
4
5
6
6
6
7
8
9
10
10
10
11
12
13
14
14
14
15
16
17
18
18
18
19
20
21
22
22
22
23
24
25
26
26
26
27
28
29
29
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
46
46
47
48
49
50
50
50
51
52
53
54
54
54
55
56
56
57
57
57
57
58
59
60
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
Позиция на иллюстрации Заводской номер детали Название детали
1 937380 Screen
1 909455 Screen
2 908545 Seal list
3 935278 List
4 937932 Screw
5 935279 List
6 909453 Screen, left
6 937381 Screen, left
7 908545 Seal list
8 935280 List
9 935281 List
10 909452 Screen
10 937382 Screen
11 908545 Seal list
12 935282 List
13 935283 List
14 909456 Screen
14 937383 Screen
15 908545 Seal list
16 935284 List
17 935285 List
18 937384 Screen
18 909454 Screen
19 908545 Seal list
20 935286 List
21 935287 List
22 909458 Screen
22 937385 Screen
23 908545 Seal list
24 935288 List
25 935289 List
26 937386 Screen
26 909460 Screen, right
27 908499 Rubber list
28 935271 Washer, Flexible
29 935272 Washer, Black
30 935273 Hinge
31 935274 Screw
32 600006 Washer
33 586003 Lock nut M8
34 Screw Screw
35 Nut Nut
36 935275 Rubber washer
37 935276 Bracket
38 936600 Screw
39 936601 Washer
40 936602 Nut M5
41 935277 Lock pin
42 Screw Screw
43 Washer Washer
44 Nut Nut
45 935290 Window lock, right
46 909459 Screen
46 937387 Screen
47 908545 Seal list
48 935291 List
49 935292 List
50 909457 Screen
50 937388 Screen
51 908545 Seal list
52 935293 List
53 935294 List
54 937389 Screen
54 909451 Screen
55 908499 Rubber list
56 935271 Washer, Flexible
57 935272 Washer, Black
58 935273 Hinge
59 935295 Screen holder
60 935274 Screw
61 935296 Washer
62 586003 Lock nut M8
63 Screw Screw
64 Nut Nut
65 935297 Bracket
66 600006 Washer
67 Screw Screw
68 935298 Bracket
69 935299 Bolt
70 570004 Hex. nut
71 935300 Shaft
72 935301 Lock
73 935302 Rod
74 935303 Ring
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
