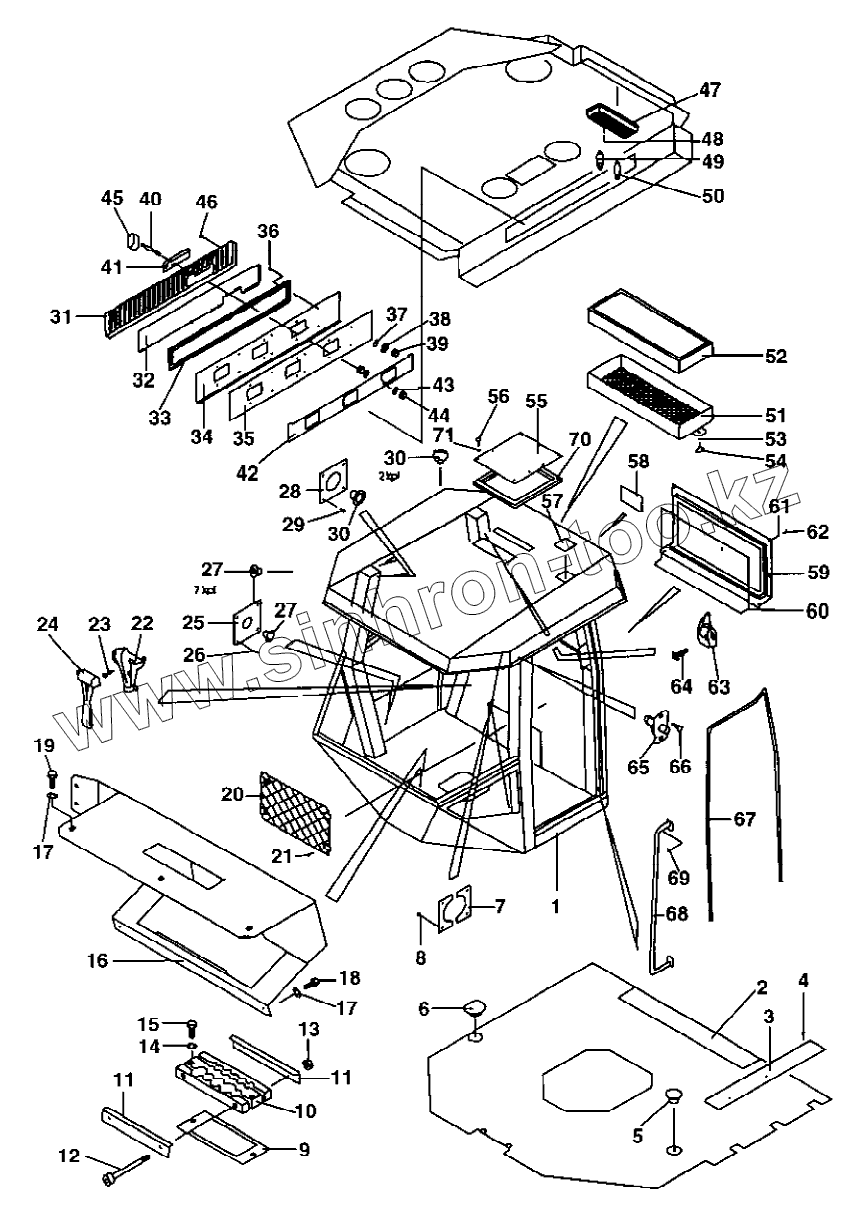

Каталог запасных частей к технике: DYNAPAC Dynapac CA302D. Cab Interior (Cab Up to 68X20851)

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
1
2
3
4
5
6
7
8
9
10
11
11
12
13
14
15
16
17
17
18
19
20
21
22
23
24
25
26
27
27
28
29
30
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
55
55
56
56
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
71
Позиция на иллюстрации Заводской номер детали Название детали
1 935576 Cab frame
1 372400 Cab, cpl
2 935577 Floor material
3 935578 Edge trim
4 903808 Screw
5 908512 Cover
6 935579 Cover
7 935580 Bracket
8 Screw Screw
9 935581 Metal gasket
10 935582 Grommet kit
11 935583 Holder plate
12 Screw Screw
13 586003 Lock nut M8
14 600006 Washer
15 Screw Screw
16 935584 Panel plate
17 600006 Washer
18 Screw Screw
19 Screw Screw
20 908508 Document holder
21 Screw Screw
22 908506 Holder
23 Screw Screw
24 908507 Emergency hammer
25 935585 Bracket
26 Screw Screw
27 909510 Grommet
28 935586 Bracket
29 Screw Screw
30 908496 Grommet
31 908516 Ventilating grid
32 908517 Recirculation filter
33 908518 Ventilating frame
34 908519 Grid support
35 935587 Plate
36 903809 Screw
37 Washer Washer
38 908520 Sleeve
39 570002 Nut M4
40 908521 Bar
41 908522 Tape
42 908523 Screen
43 600004 Washer
44 570005 Nut
45 908524 Knob
46 Screw Screw
47 908515 Inner light
48 903809 Screw
49 985117 Bulb
50 985051 Bulb
51 908501 Filter frame
52 908502 Filter
53 908503 O-ring
54 908504 Handle
55 938019 Cover plate
55 908494 Cover plate
56 500012 Screw
56 500018 Screw
57 935588 Plug
58 935589 Decal
59 935590 Cover plate
60 908587 Edge trim
61 600006 Washer
62 Screw Screw
63 908505 Hook
64 Screw Screw
65 908500 Door switch
66 901315 Screw
67 908499 Rubber list
68 935591 Handle
69 Screw Screw
70 938023 Gasket
71 904228 Washer 6,4x12x1,5
71 904229 Washer 8,4x16x1,5
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
