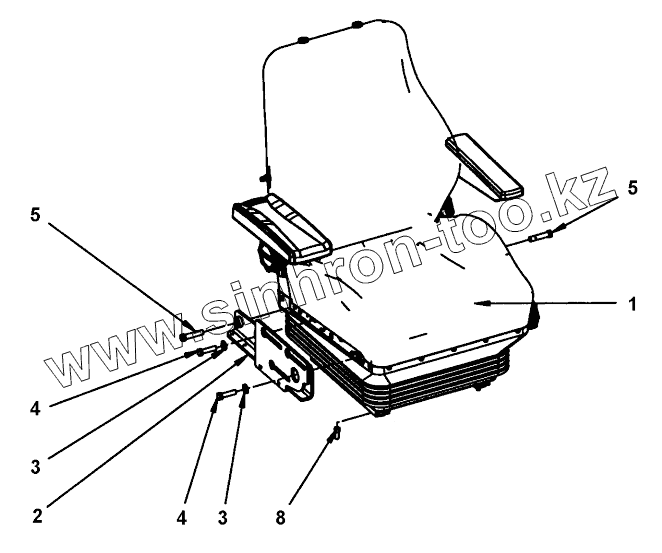

Каталог запасных частей к технике: DYNAPAC Dynapac CA2500. Seat, fabric suspensioned (option)

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано CA1400 (2016) CA2500D (2016) CA2500D (2018) CA2500D-PD (2018) CA250D (2011) CA252D (2008) CA2800D (2017) CA3500D (2016) CA4000D (2017) CA4000D (2020) CA4600D (2019) CA5500D (2015) CA610PD (2014) CA6500 (2018) CC1000 (2019) CC1100CC (2015) CC1200C Plus (2015) CC1200C VI (2018) CC1200CC (2018) CC125 (2015) CC1250 (2015) CC1300 (2018) CC1300C (2015) CC1300C (2016) CC2200 (2018) CC2200 (2020) CC2300C (2018) CC3300 (2018) CC4000 VI (2018) CC4200C VI (2020) CC5200C (2018) CC6200 VI (2020) CC800 (2019) CC900 (2018) CC900S (2018) CG2300 (2018) CP142 (2015) CP275 (2014) Dynapac CA1500 (2017) Dynapac CA2500 (2012) Dynapac CA302D (2008) Dynapac CA302D (2010) Dynapac CA5000D (2017) Dynapac CC142 (2009) Dynapac CC2200C (2015) Dynapac CC224HF (2012) Dynapac CC322 (2008) Dynapac CC422 (2010) Dynapac CC5200 (2014) Dynapac CC5200 (2017) Dynapac CC5200 (2017) Dynapac CC5200 VI (2017) Dynapac CC800 (2013) Dynapac CC800 (2014) Dynapac F1200C/CS (2018) Dynapac F1200CS/CS (2018) Dynapac F1800C (2018) Dynapac F181C (2010) Dynapac PL2000LS (2010) Dynapac PL2000LS (2010) Dynapac PL2000S (2010) Dynapac PL2000S (2010) Dynapac SCC1300 (2014) Dynapac SD2500C (ч. 1) (2018) Dynapac SD2500C (ч. 2) (2018) Dynapac SD2550C (ч. 1) (2018) Dynapac SD2550C (ч. 2) (2018) F2500C (2018) SD2550CS (2015)

Схема > Не выбрано CA2500D/PD (IIIA/T3) SN 10000137x 0A009753- Service kits 4812156993 Service kit, 50h incl. oil 4812158281 Service kit, 500h incl. oil Cummins QSB 4.5 4812158369 Service kit, 500h Cummins QSB 4.5 4812158282 Service kit, 1000h incl. oil Cummins QSB 4.5 4812158283 Service kit 1000h Cummins QSB 4.5 4812158370 Service kit, up to 1000h Cummins QSB 4.5 4812158582 Service kit, 2000h incl. oil Cummins QSB 4.5 4812158583 Service kit 2000h Cummins QSB 4.5 Repair kits Eccentric shaft kit 4812157275 Drum rotation kit 4812158580 Shock absorber kit, drum 4812158581 Shock absorber kit, drum Steering hitch kits Frame, front 4812113132 Steering hitch, cpl Scraper module Scraper module Rubber Scraper assy Scraper module PD Hardox Scraper module PD Heavy duty Scraper mount Frame, rear Cover assembly Articulated Joint Module Bumper Bumper, rear lights, option Tool box module, Option Step module Step assy Engine hood module Fender module Hinge module Lock handle module 4812114363 Lock handle, cpl Gas spring module Safety link module Drum, cpl 4812113266 Drum gear 4812112198 Hydraulic motor Vibration motor adapter Tooth wheel module 4812158090 Drum cartridge, vibration side (PD version) 4812158091 Drum cartridge, vibration side (D version) 4812158093 Drum cartridge, vibration side (PD, comp. data high) 4812158095 Drum cartridge with shaft nut, vibration side (PD version) 4812158096 Drum cartridge with shaft nut, vibration side (D version) 4812158098 Drum cartridge with shaft nut, vibration side (PD, comp. data high) 4812158085 Drum cartridge, drive side (PD version) 4812158086 Drum cartridge, drive side (D version) 4812158088 Drum cartridge, drive side (PD, comp. data high) Pad shell, option Engine Diesel engine Belt guard module Bracket module Cooling system Cooler stand Hose assy kit Air cleaner Air cleaner module Fuel system Fuel tank module Fuel tank Brackets assy Fuel hoses Draining module, option Fuel system Fuel tank module Fuel tank Fuel hoses Exhaust system Expansion tank assembly Rear axle and wheels 4812113344 Rear axle, limited slip Differential & Bevel gear Hub reduction 4812113341 Rear axle No spin Differential Central housing and brakes Hub reduction Hydraulic system, drum (D) Traction control, dual speed Hydraulic motor 4812112216 Hydraulic motor, vibration Rotary group Flush & boost pressure valve with orifice Cover Hydraulic motor 4812112215 Hydraulic motor Rotary group Flush and boost pressure valve Cover with shaft seal ring Hydraulic valve module 4812113687 Hydraulic valve Hydraulic system, drum (PD) Traction control, dual speed Hydraulic motor 4812112200 Drum motor Loop flushing Hydraulic system, drum Anti-spin system Hydraulic motor 4812112202 Drum motor Drum motor. Front section Loop flushing Drum motor. Rear section Hydraulic system, rear axle Traction control, limited slip Hydraulic motor 4812112208 Rear axle motor Front section Rear section Hose holder Hydraulic system, rear axle Traction control, no slip Hydraulic motor 4812112211 Rear axle motor Loop flusing Hydraulic system, rear axle Anti-spin system Hydraulic motor 4812112210 Rear axle motor Front section Rear section Hydraulic system, rear axle Dual speed Hydraulic motor 4812112207 Axle motor Hydraulic system, oil tank Hydraulic oil tank assembly Hydraulic valve module 4812112238 Hydraulic valve Connector assy Fan module 4812112106 Hydraulic motor Hydraulic system, frame rear Connector kit Connector kit Hydraulic system, steering Hydraulic cylinder 4812113826 Hydraulic cylinder Steering valve module Hydraulic hoses, steering Emergency steering valve module 4812110361 Steering valve Hydraulic system, engine room Hydraulic pump module 4812112170 Hydraulic pump, propel pump Front section Rear section Hydraulic pump module Hydraulic oil filter assy Hydraulic pump module 4812110927 Hydraulic pump Hydraulic system, engine room Adjustable frequency, eco opti Hydraulic pump Hydraulic pump module 4812112192 Hydraulic pump Electric cables, power supply, 1-pole Battery module Battery disconnector module Electric cables, power supply, 2-pole, option Battery disconnector, 2-pole Electrical cables, engine - ECU Horn, back-up alarm Standard ECU assembly Power converter module Inclination sensor module Back-up alarm module Back-up alarm module Bracket module Driving & side direction lights, number plate light, option Steering column switch module Cable harness kit Registration plate light module Registration plate light Holder module Registration plate light Reversing light, option Reversing light GPS equipment module, option Holder GPS equipment module GPS equipment assy Rotating beacon, working light, option Rotating beacon module Rotating beacon Working light module H3 Speed sensor, frequency sensor, option Pulse sensor module Pre-heater installation, option Heater Cable harness kit Power supply cab Compaction meter, option Power supply Tachograph, option Holder assy Power supply module Displacement shift External emergency stop, option Platform, rops 4812112278 Platform with 4-post ROPS Basic kit Rops, roof, front handrail Rear cover Handrail Cab, basic kit Manual box Cab symmetric module 4812112301 Cab, cpl Comfort Screens 4812115202 Cab door, cpl 4812115200 Sliding screen, left hand Windshield wiper Roof Heater assy Hose kit heater Cab Interior Heater controls Cab cabel harness Cab, electrical equipment Emergency hammer, hook Cab, rear cover Cab, front cover Floor mat Step light, wiper switch Air channel Sun-blind, inner light 4812112302 Cab, cpl Basic Cab, rear cover Cab, front cover Wiper switch, front Drivers seat Seat frame structure 4700391163 Steering column Seat frame adapter module, rotating Seat frame adapter module, fixed Floor cassette module Seat, fabric suspensioned (option) Seat, galon suspensioned Control module Forward reverse control module Display unit Seat belt 2" with reminder Seat belt 3" with reminder Reading light Control panel cover Car stereo module, option Rear view mirror Rear view mirror module Heater hoses Decals Decals Fire extinguisher/First Aid Cushion Fire extinguisher Level sensor module, option SMV-sign Drying filter module Condensor assembly ACC module ACC kit AC module Hose kit AC Compressor module Hose assy kit for AC

1

2

3

3

4

4

5

5

8

Позиция на иллюстрации	Заводской номер детали		Название детали
4700937892	4700937892		Seat switch
4700937620	4700937620		Arm rest, right
4812158367	4812158367		Arm rest wide, right
4700937621	4700937621		Arm rest, left
1	4812116357		Drivers seat
2	4812116289		Control bracket
3	4700904230		Washer
4	4700500240		Screw
5	4700903914		Screw
8	4700508092		Screw

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
