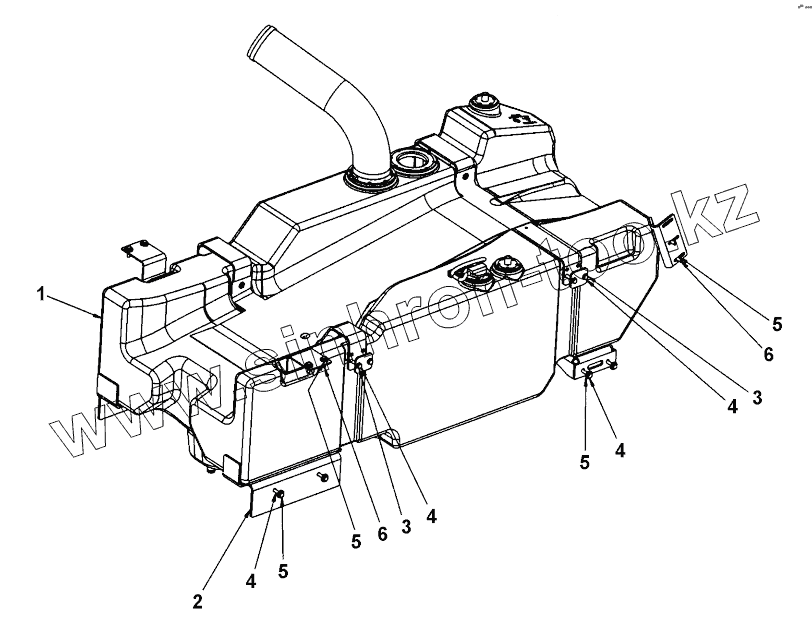

Позиция на иллюстрации
Заводской номер детали
Название детали
1
Fueltank
Fuel tank
2
Brackets
Brackets assy
3
4700904229
Washer
4
4700500024
Screw
5
4700904640
Washer
6
4700500021
Hex. screw
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
