1
2
3
4
5
6
7
8
17
18
19
20
21
22
23

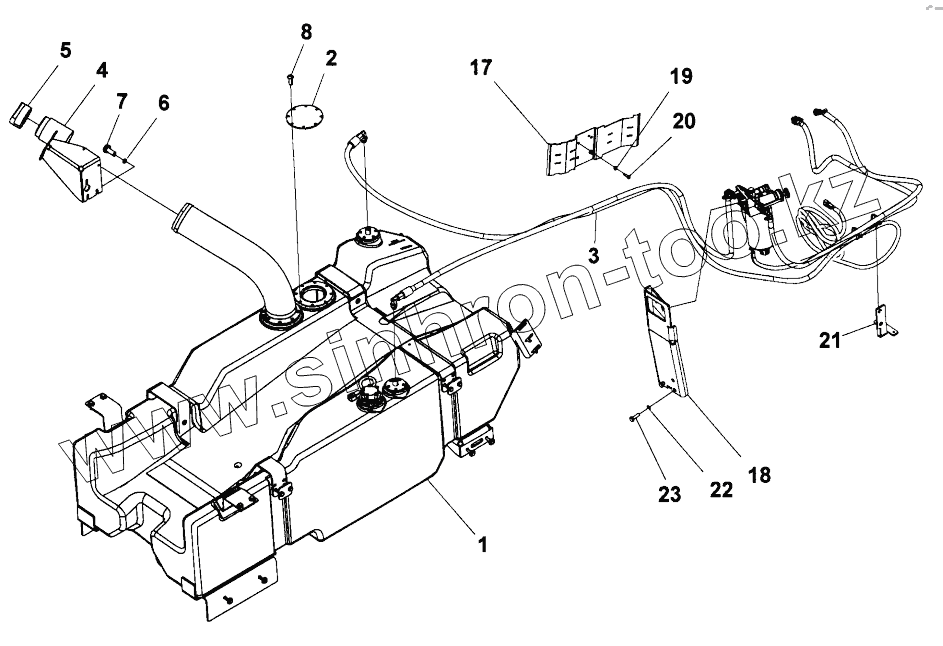

Позиция на иллюстрации
Заводской номер детали
Название детали
1
Fueltank
Fuel tank
2
4812112864
Cover
3
Fuelhoses
Fuel hoses
4
4812112863
Bracket
5
4700380436
Fuel cap
6
4700904556
Steel plain washer
7
4700500053
Hex. screw
8
4700904206
Screw
17
4812114212
Bracket
18
4812115902
Bracket
19
4700603001
Washer
20
4700508025
Bolt
21
4812115580
Holder
22
4700904229
Washer
23
4700500029
Hex. screw
25
Draining
Draining module
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
