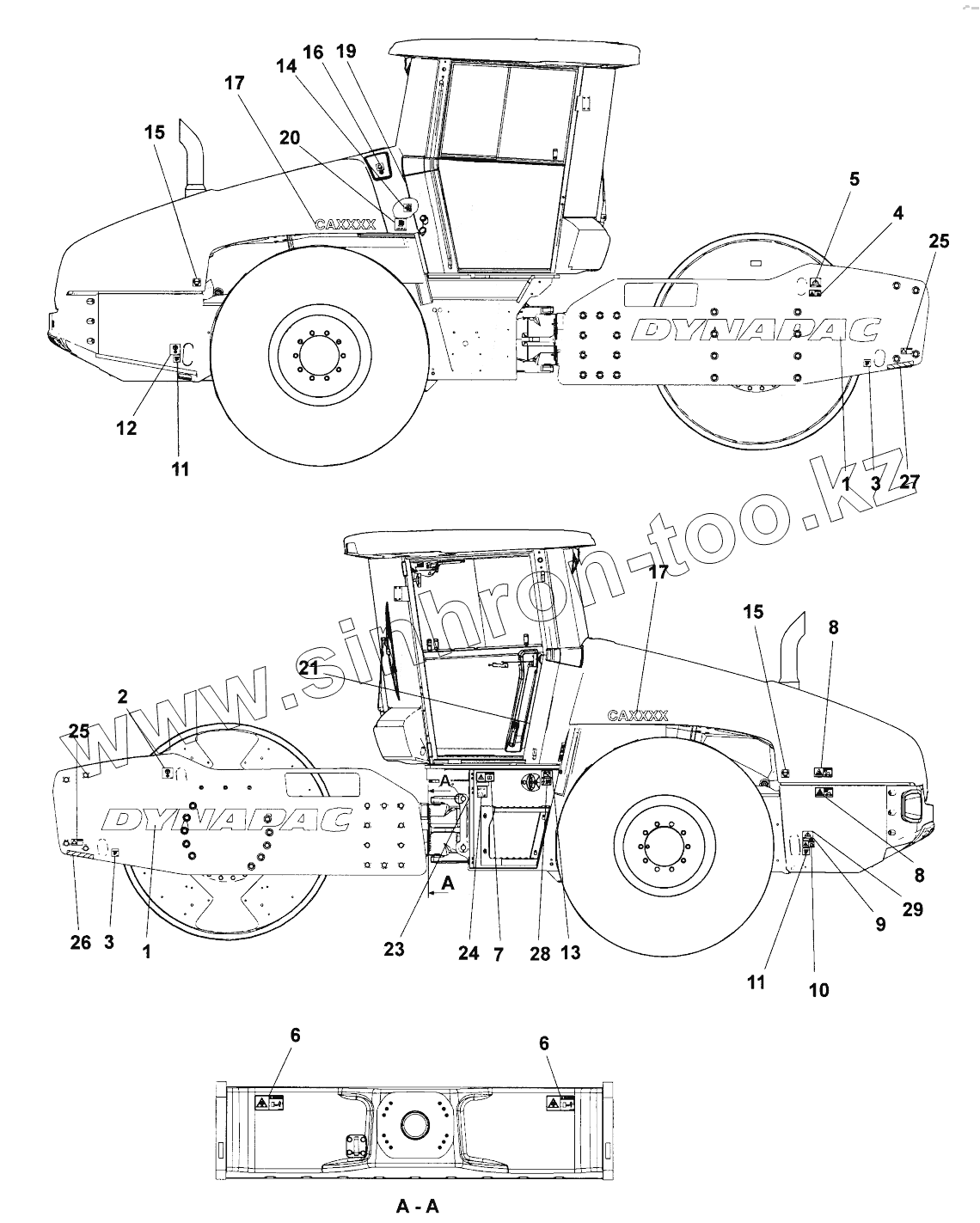

Каталог запасных частей к технике: DYNAPAC Dynapac CA2500. Decals

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
2
3
3
4
5
6
6
7
8
8
9
10
11
11
12
13
14
15
15
16
17
17
19
20
21
23
24
28
29
Позиция на иллюстрации Заводской номер детали Название детали
4811000504 4811000504 Decal MODEL CODE, Red CA2500
4811000508 4811000508 Decal MODEL CODE, Red CA2800
4812118427 4812118427 Decal MODEL CODE, Red CA3500
4700792772 4700792772 Decal BIO HYDRAULIC OIL PANOLIN
4700624005 4700624005 Blind rivet 3,2x6,1
4700355983 4700355983 Decal TYRE PRESSURE
4700390900 4700390900 Decal TYRE PRESSURE
1 4700904068 Decal DYNAPAC
2 4700588176 Decal LIFT POINT
3 4700382751 Decal SECURING POINT/TIE DOWN
4 4700908229 Safety decal
5 4700904870 Lifting data plate
6 4700903422 Safety decal CRUSH AREA
7 4700903459 Decal SAFETY
8 4700904895 Safety decal Brake release
9 4700904870 Lifting data plate
10 4700908229 Safety decal
11 4700382751 Decal SECURING POINT/TIE DOWN
12 4700588176 Decal LIFT POINT
13 4700904835 Decal BATTERY POWER
14 4700272373 Decal HYDRAULIC LEVEL
15 4700385080 Decal tyre pressure
16 4700388449 Decal ENGINE COOLANT FILL
17 4811000516 Decal MODEL CODE, Red CA4000
19 4700272372 Decal HYDRAULIC OIL
20 4700991658 Decal FUEL
21 4700903425 Safety decal READ SAFETY INSTRUCTIONS
23 Product Product identifdecal Dynapac
24 4700791273 Decal Sound power level 103 dB
28 4700393959 Decal Battery voltage 24V
29 4700624005 Blind rivet 3,2x6,1
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
