Каталог запасных частей к технике: DYNAPAC Dynapac CA1500. Port plate with valves

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
1
2
3
4
5
6
7
8
9
10
11
12
13
20
20
21
22
30
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
47
47
47
47
47
48
49
50
51
52
53

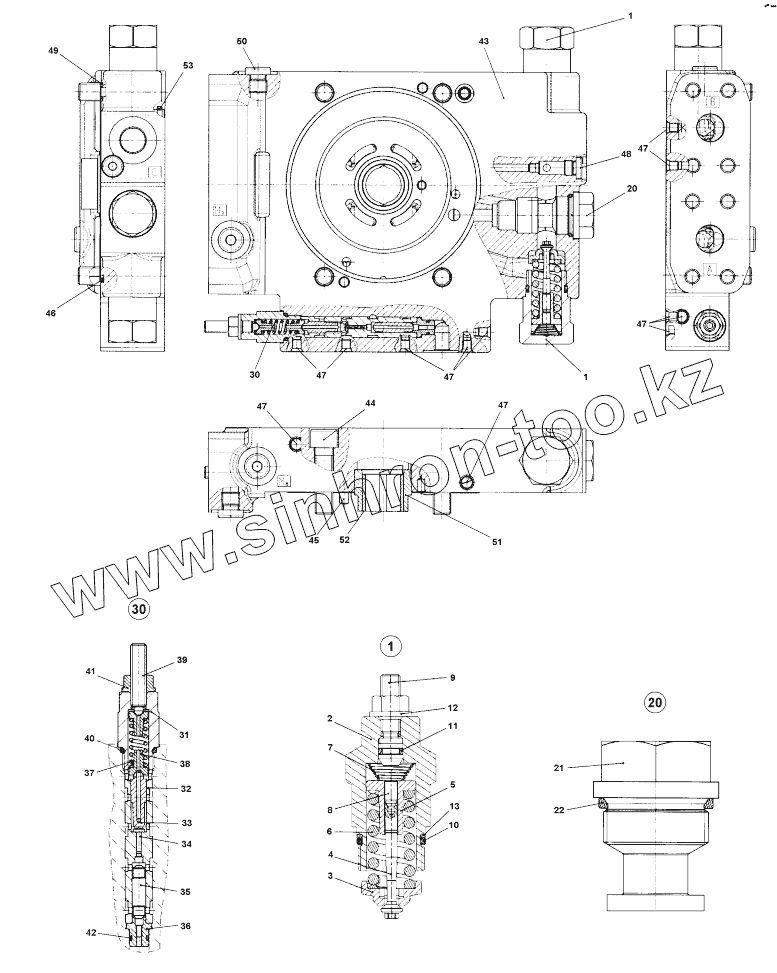

Позиция на иллюстрации Заводской номер детали Название детали
1 4812157796 Pressure relief valve
2 Lockingscrew Locking screw
3 Valvecollar Valve collar
4 Valvespindle Valve spindle
5 Springloadingnut Spring loading nut
6 Pressurespring Pressure spring
7 Spring Spring
8 Threadedpin Threaded pin
9 Adjustmentbolt Adjustment bolt
10 4700927278 O-ring
11 O-ring O-ring
12 Sealingnut Sealing nut
13 4812157799 Back-up ring
20 4812158770 Locking set with orifice
21 Lockingscrew Locking screw
22 4700927278 O-ring
30 4812157861 Pressure overide valve
31 Lockingscrew Locking screw
32 Valvebushing Valve bushing
33 Controlpiston Control piston
34 Piston Piston
35 Valvepiston Valve piston
36 Poppetseat Poppet seat
37 Pressurespring Pressure spring
38 Springcollar Spring collar
39 Adjustingscrew Adjusting screw
40 4700902783 O-ring
41 Sealingnut Sealing nut
42 4812157097 O-ring
43 Portplate Port plate
44 Socketheadscrew Socket head screw
45 Cylinderpin Cylinder pin
46 4812158776 O-ring
47 Doublebreak Double break-off plug
48 Lockingscrew Locking screw
49 4812157151 O-ring
50 Lockingscrew Locking screw
51 Bush Bush
52 Bearingbushing Bearing bushing
53 4812158251 O-ring
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
