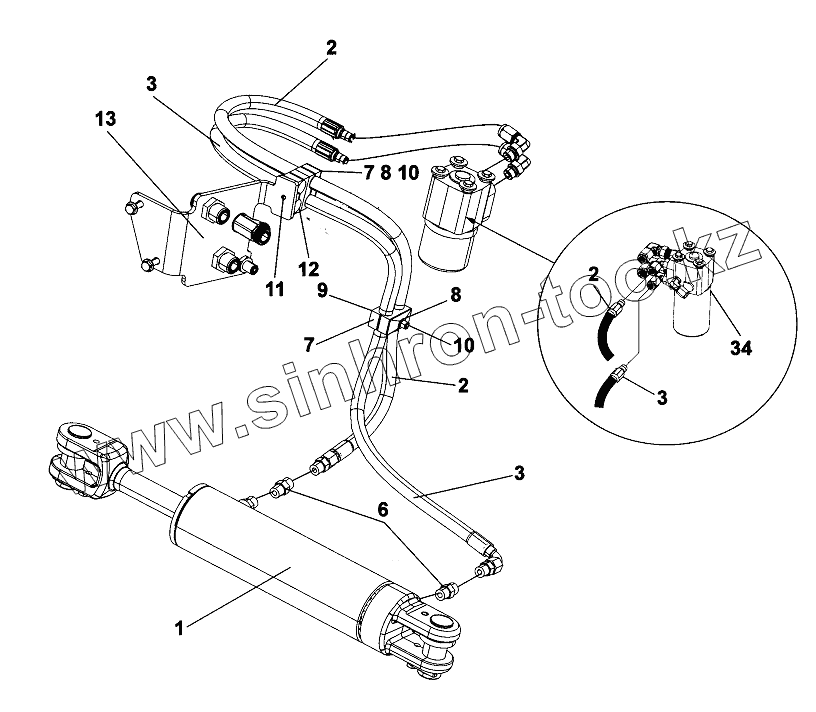

Позиция на иллюстрации
Заводской номер детали
Название детали
1
Hydrauliccylinder
Hydraulic cylinder
2
4812115542
Hydraulic hose
3
4812115541
Hydraulic hose
5
4700904623
Hose guard
6
4700791799
Straight connector orfs
7
4700903456
Pipe clamp
8
4700904872
Cover plate
9
4700792500
Stud
10
4700902286
Lock nut
11
4700791807
Stud
12
4700287295
Clamp
13
Bracket
Bracket
34
Steeringvalve
Steering valve
34
Emergencysteeringvalve
Emergency steering valve module
