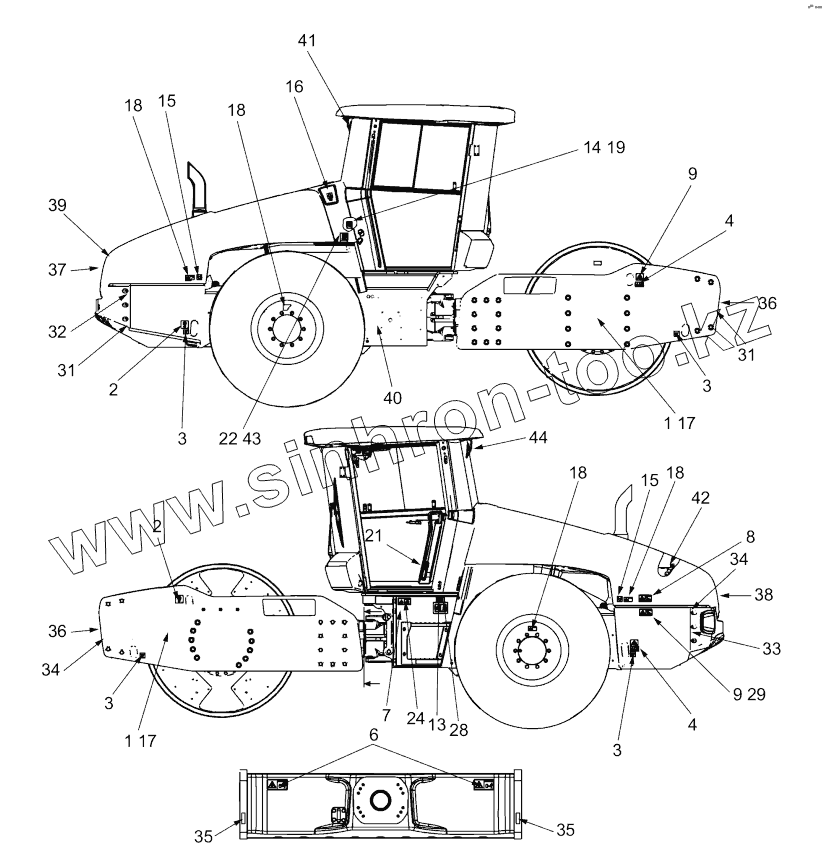

Каталог запасных частей к технике: DYNAPAC Dynapac CA1500. Decals

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
1
2
2
3
3
3
3
4
4
6
7
8
9
9
13
14
15
15
16
17
17
18
18
18
18
19
19
21
22
24
28
29
31
31
32
33
34
34
35
35
36
36
37
38
39
40
41
42
43
44
Позиция на иллюстрации Заводской номер детали Название детали
1 4812120098 Decal COMPACTING ROCKS Left
1 4812120099 Decal COMPACTING ROCKS Right
2 4700588176 Decal LIFT POINT
3 4700382751 Decal SECURING POINT/TIE DOWN
4 4700908229 Safety decal
6 4700903422 Safety decal CRUSH AREA
7 4700903459 Decal SAFETY
8 4700904895 Safety decal Brake release
9 4700904870 Lifting data plate
13 4700904835 Decal BATTERY POWER
14 4700272373 Decal HYDRAULIC LEVEL
15 4700385080 Decal tyre pressure
16 4700388449 Decal ENGINE COOLANT FILL
17 4812120113 Decal MODEL CODE CA1500
18 4700903985 Decal SAFETY
19 4700272372 Decal HYDRAULIC OIL
19 4700792772 Decal BIO HYDRAULIC OIL PANOLIN
20 4700991658 Decal FUEL
20 4811000345 Decal ULTRA LOW SULFUR FUEL ONLY
21 4700903425 Safety decal READ SAFETY INSTRUCTIONS
22 4812120306 Decal AC logotype Black, H=190
23 Identificationplate Product identification plate
24 4700791273 Decal Sound power level 103 dB
28 4700393959 Decal Battery voltage 24V
29 4700624005 Blind rivet 3,2x6,1
31 4700904390 Decal Risk location
32 4700904389 Decal Risk location
33 4700904391 Decal Risk location
34 4700904388 Decal Risk location
35 4700377742 Reflector, red
36 4812269858 Decal Atlas Copco Black, H=250
37 4812121707 Decal AC logotype White, H=143
38 4700903423 Safety label, Rotating engine components
39 4700903424 Safety decal HOT SURFACE
40 4811000443 Decal, Draining fuel
41 4700904165 Safety decal Toxic gases
42 4700791642 Decal WARNING Use of starting fluid prohib.
43 4811000344 Decal, low sulfur
44 4700903590 Decal emergency exit
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
