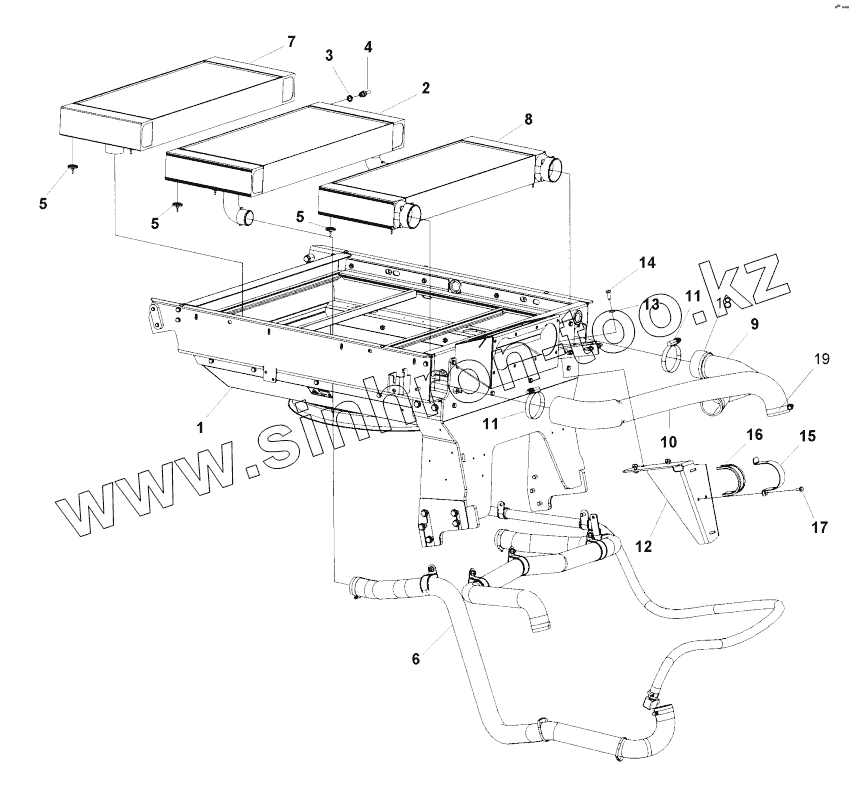

Позиция на иллюстрации
Заводской номер детали
Название детали
1
Coolerstand
Cooler stand
2
4812121925
Water cooler
3
4700162004
Sealing
4
4700792322
Hose connection
5
4812112097
Shock absorber
6
HoseKit
Hose Kit
7
4812121866
Hydraulic oil cooler
8
4812121815
Charge air cooler
9
4812117227
Charge air hose
10
4812118922
Charge air hose
11
4700392810
Clamp
12
4812117610
Bracket
13
4700904556
Steel plain washer
14
4700500053
Hex. screw
15
4812118127
Clamp
16
4812117602
Strip
17
4700792119
Hexagon screw with flange
18
4812120637
Reducer
19
4700386966
Hose clamp
