Каталог запасных частей к технике: DYNAPAC Dynapac CA1500. 4812112508 Hydraulic cylinder

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано CA1400 (2016) CA2500D (2016) CA2500D (2018) CA2500D-PD (2018) CA250D (2011) CA252D (2008) CA2800D (2017) CA3500D (2016) CA4000D (2017) CA4000D (2020) CA4600D (2019) CA5500D (2015) CA610PD (2014) CA6500 (2018) CC1000 (2019) CC1100CC (2015) CC1200C Plus (2015) CC1200C VI (2018) CC1200CC (2018) CC125 (2015) CC1250 (2015) CC1300 (2018) CC1300C (2015) CC1300C (2016) CC2200 (2018) CC2200 (2020) CC2300C (2018) CC3300 (2018) CC4000 VI (2018) CC4200C VI (2020) CC5200C (2018) CC6200 VI (2020) CC800 (2019) CC900 (2018) CC900S (2018) CG2300 (2018) CP142 (2015) CP275 (2014) Dynapac CA1500 (2017) Dynapac CA2500 (2012) Dynapac CA302D (2008) Dynapac CA302D (2010) Dynapac CA5000D (2017) Dynapac CC142 (2009) Dynapac CC2200C (2015) Dynapac CC224HF (2012) Dynapac CC322 (2008) Dynapac CC422 (2010) Dynapac CC5200 (2014) Dynapac CC5200 (2017) Dynapac CC5200 (2017) Dynapac CC5200 VI (2017) Dynapac CC800 (2013) Dynapac CC800 (2014) Dynapac F1200C/CS (2018) Dynapac F1200CS/CS (2018) Dynapac F1800C (2018) Dynapac F181C (2010) Dynapac PL2000LS (2010) Dynapac PL2000LS (2010) Dynapac PL2000S (2010) Dynapac PL2000S (2010) Dynapac SCC1300 (2014) Dynapac SD2500C (ч. 1) (2018) Dynapac SD2500C (ч. 2) (2018) Dynapac SD2550C (ч. 1) (2018) Dynapac SD2550C (ч. 2) (2018) F2500C (2018) SD2550CS (2015)

Схема > Не выбрано DYNAPAC CA1500D/PD (IIIB/T4i) SN 10000156xxA010304 4812159462 Service kit, 50h Plus 4812159856 Service kit, 500h 4812159855 Service kit, 500h Plus 4812159858 Service kit, 1000h 4812159857 Service kit, 1000h Plus 4812159859 Start up kit Cummins QSB 3.3 IIIB/T4 4812159861 Service kit, 2000h 4812159860 Service kit, 2000h Plus 4812159976 Eccentric shaft kit 4812157275 Drum rotation kit 4812159975 Shock absorber kit, drum Keys Fuses Frame, front 4812120697 Steering hitch, cpl. Steering hitch module 4812114990 Steering hitch, cpl Scraper module Scraper module Rubber Scraper assy Scraper module PD Hardox Frame, rear Frame, rear Cover assembly Step module Step assy Tool box module, Option Engine structure Engine hood module 4812118994 Lock handle, cpl Fender module Hinge module Gas spring module Safety link module To A014115 Lock handle assy To A014115 Safety link module From A014116 Lock handle, assy From A014116 Drum 4812115972 Gear Anti spin 4812115971 Gear Drum Vibration motor adapter Splined sleeve Pad shell, option Engine Diesel engine Cummins QSB 3.3 IIIB Bracket module Belt guard module Belt guard assy Cooling system Cooler stand Hose kit Air cleaner Air cleaner Fuel system Fuel tank module Fuel tank Bracket assy Fuel hose module Draining module Exhaust system Expansion tank assembly Rear axle and wheels 4812116234 Rear axle Limited-Spin Differential Central housing & Brakes Hub reduction 4812116238 Rear axle cpl, No-spin Differential Central housing & Brakes Hub reduction Hydraulic system, drum Traction control - Dual speed Hydraulic motor 4812115109 Hydraulic motor Rotary group Flush & Boost pressure valve with orifice Cover, cpl. 4812161061_Seal kit Hydraulic motor 4812116230 Hydraulic motor Hydraulic valve module 4812113687 Hydraulic valve Hydraulic system, drum Anti-Spin system Hydraulic motor 4812112197 Hydraulic motor Rotary group Control Hydraulic system, rear axle Traction control - limited slip Hydraulic motor 4812112204 Hydraulic motor Rotary group Control Hydraulic system, rear axle Anti-Spin system Hydraulic motor Hydraulic system, rear axle Dual speed Hydraulic motor Hydraulic system, oil tank Hydraulic oil tank assembly Hose holder Hydraulic system, engine room Hydraulic pump module 4812112169 Hydraulic pump, propulsion Rotary group Hydraulic control Port plate with valves Control module Hydraulic pump module 4812112172 Hydraulic pump Rotary group Adjusting piece Portplate with valves Pump support plate 4/3-Way directional valve Hydraulic oil filter assy Hydraulic pump module 4812112182 Hydraulic pump, steering Hydraulic system, steering Hydraulic cylinder 4812121947 Hydraulic cylinder 4812120830 Hydraulic cylinder 4812112508 Hydraulic cylinder Emergency steering valve module Hydraulic hoses, steering Fan module 4812116231 Hydraulic motor Hydraulic valve module 4812112238 Hydraulic valve Hydraulic system, rear frame Connector kit Connector kit Connector kit Connector kit, Frame Electric cables, power supply, 1-pole Battery module Battery disconnector module Electric cables, power supply, 2-pole, option Battery disconnector, 2-pole Electrical cables, engine - ECU Horn, back-up alarm Standard ECU assembly Power converter module Inclination sensor module Inclination sensor module Back-up alarm module Back-up alarm module, Quacker Horn module Bracket module Driving & side direction lights, number plate light, option Steering column switch module Cable harness kit Registration plate light module Registration plate light Holder, Registration plate light Cable harness kit Power supply cab Reversing light module DCA/GPS equipment module, option Holder GPS equipment module GPS equipment assy Computer Rotating beacon, working light, option Rotating beacon module Bracket, Rotating beacon Working light module H3 Compaction meter, option Power supply External emergency stop, option Pre-heater installation, option Engine pre-heater module Speed sensor, frequency sensor, option Platform, rops 4812120545 Platform with 4-post ROPS Basic kit Rops, roof, front handrail Rear cover Handrail Cab, basic kit Manual box Decals basic kit Cab symmetric module 4812112301 Cab, cpl Comfort Screens 4812115202 Cab door, cpl 4812115200 Sliding screen, left hand Windshield wiper Roof Heater assy Hose kit heater Cab Interior Heater controls Cab cable harness Cab, electrical equipment Emergency hammer, hook Cab, rear cover Cab, front cover Floor mat Step light, front wiper switches Air channel Sun-blind, inner light 4812112302 Cab, cpl Basic Cab, rear cover Cab, front cover Wiper switch, front Drivers seat Seat frame structure 4700391163 Steering column Seat frame adapter module, rotating Seat frame adapter module, fixed Floor cassette module Seat, fabric suspensioned Seat, galon suspensioned Control module Forward reverse control module Display unit Seat belt 2" Seat belt 3" Seat belt 2" with reminder Seat belt 3" with reminder Reading light Control panel cover Car stereo module, option Rear view mirror Decals Fire extinguisher/First Aid Cushion Fire extinguisher Level sensor module, option SMV-sign Air conditioning Condensor assembly AC module 4812113623 Evaporator, cpl ACC module 4812113624 ACC kit Drying filter module 4812114257 Drying filter assy Hose assy kit for AC Hose assy kit for AC Compressor module Belt guard module Belt guard assy Cooling box module Lunch box Strike off blade kit Bearing mount Hydraulic and Electrical, Strike off blade kit 4812121948 Hydraulic cylinder Strike-off blade, mount Indicator, module Bracket, module Locking device, module FleetLink module Compaction meter (DCM) Dyn@lyzer

3

4

5

6

7

8

9

10

11

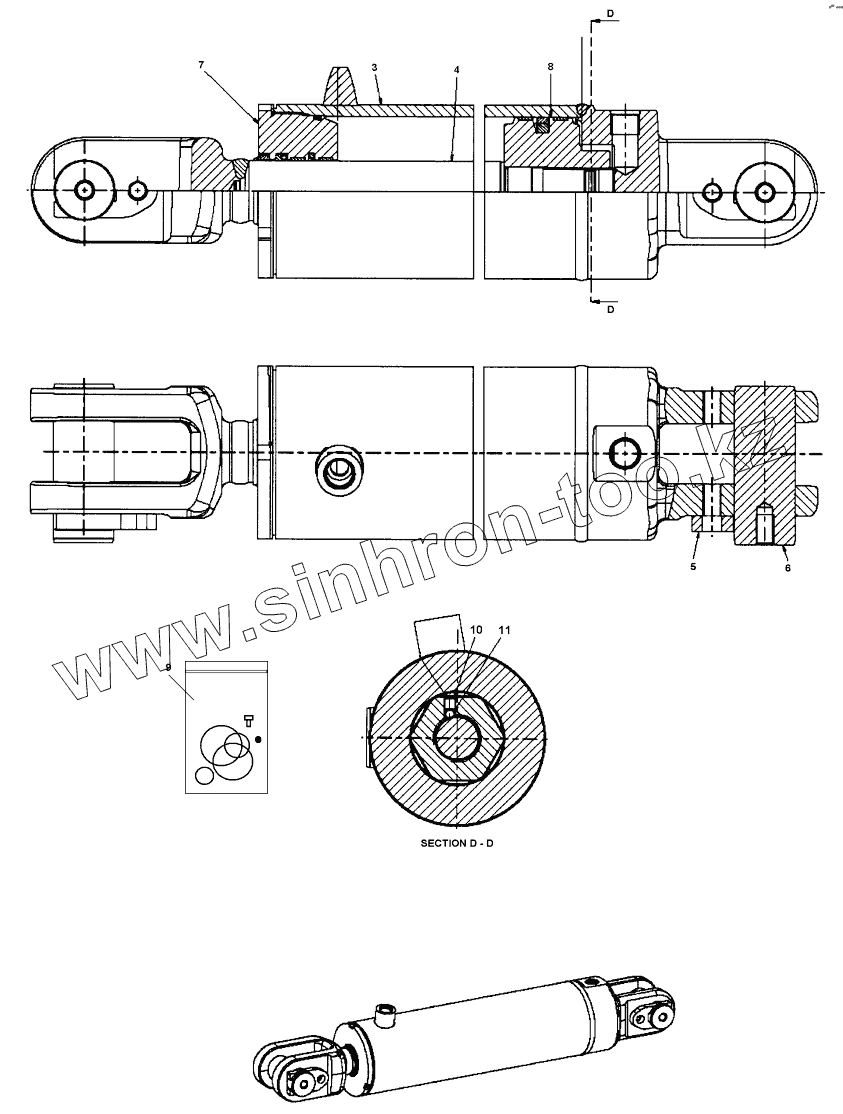

Позиция на иллюстрации	Заводской номер детали		Название детали
3	Cylindertube		Cylinder tube
4	Rodseal		Rod seal
5	4812157759		Locking fork
6	4812157760		Locking pin
7	Cylinderhead		Cylinder head
8	Piston		Piston
9	4812157761		Seal kit
10	Screw		Screw
11	4812157758		Ball

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
